UY113GS SIZE 90 PACK OF 10 NEEDLES GROZ BECKERT

Part No UY113GSX90GB
Groz Beckert - UY 113 GS/2055/UOX113 - NM 90 / Size 14 - RG (Normal round point with small ball) Packet of 10 Needles.
£5.74
Only 20 Left In Stock!

Description / UY113GS SIZE 90 PACK OF 10 NEEDLES GROZ BECKERT

Groz Beckert - UY 113 GS/2055/UOX113 - NM 90 / Size 14 - RG (Normal round point with small ball) Packet of 10 Needles.

RG (Normal round point with small ball)

  • Slightly rounded shape of the point
  • Suitable for knitted and woven fabrics and microfiber
  • Standard point for chainstitch as well as single and multihead embroidery
  • Perfectly suited for button sewing

Spiral groove
On needles with a spiral groove, the long grooves do not run straight along the needle blade, but in a spiral or helical shape. They are used in inline chainstitch machines where the hook or looper moves along the sewing direction and the thread is guided from the front of the machine to the needle. As threading is carried out laterally from right to left, the thread runs diagonally over the needle blade. Therefore, the spiral groove has the advantage that the thread can lie in the spiral groove during needle penetration.

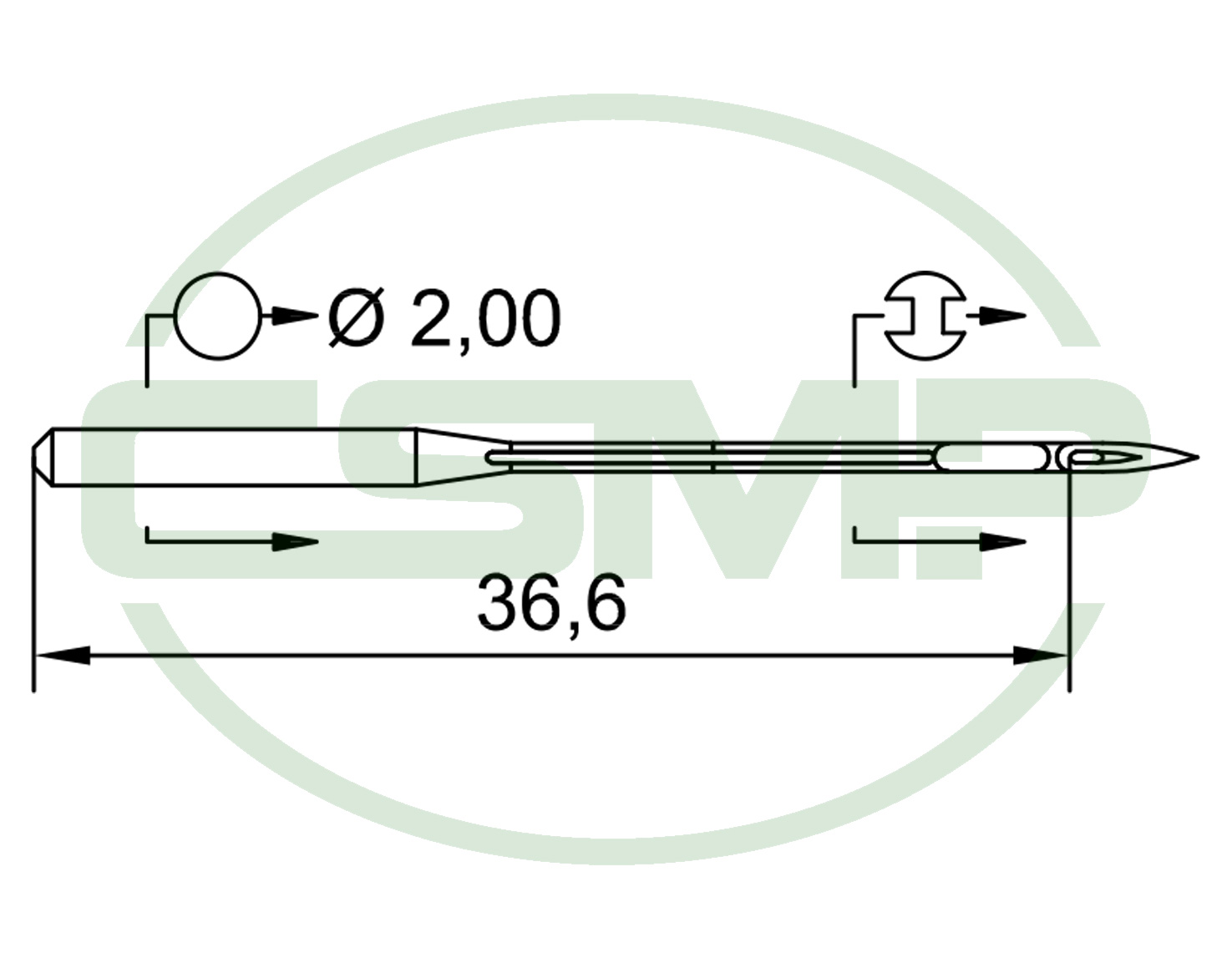

Needle Specification

Customary Needle Designations UOX 113, 2055, 4900, 5250, SY 7090, SY 7140, UY113GS, 26:65
Further Point Designations STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R
NM / Size NM: 90 / Size: 14
Type of Coating Chromium
Shank-ø 2 mm
Overall Length 44.9 mm
Length to Eye 38.9 mm
Needle Form Description Straight needle with double groove and scarf
Technical Sewing Application Double chain stitch
Stitch Type Class 400
Special(s) Spiral groove
Recommended For Fine knitwear, Woven fabrics, Thin leather
Examples of Use Shirts, Blouses, Trousers

More Information

Part No UY113GSX90GB
Weight (KG) 0.015000
Manufacturer Groz Beckert
Needle Size NM 90 / Size 14
