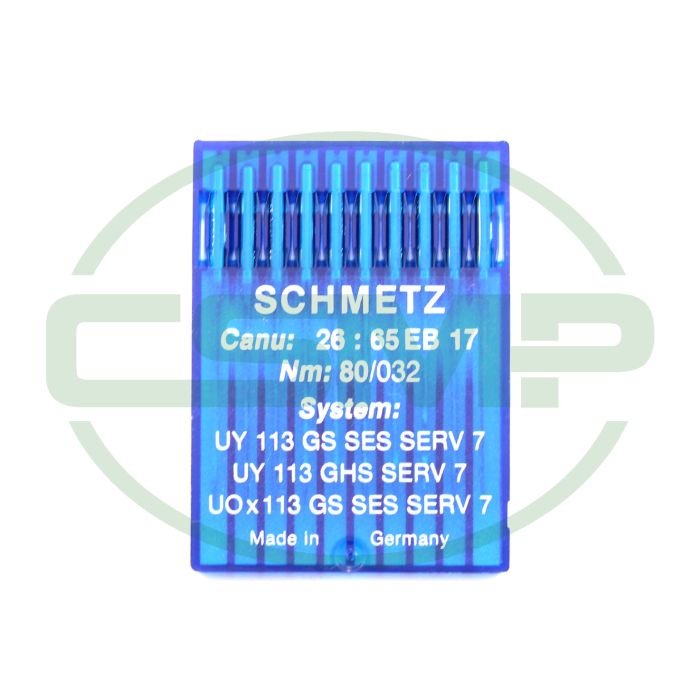

UY113GS SES SERV7 SIZE 80 PACK OF 10 NEEDLES SCHMETZ

Part No UY113GSSESSEX80
Schmetz 26:65EB17 - UY 113 GS SES SERV 7, UY 113 GHS SERV 7, UOX113 GS SES SERV 7 - NM 80 / Size 12 - SES (Light ball point) SERV 7 Packet of 10 Needles.
£7.37
Only 2 Left In Stock!

Description / UY113GS SES SERV7 SIZE 80 PACK OF 10 NEEDLES SCHMETZ

Schmetz 26:65EB17 - UY 113 GS SES SERV 7, UY 113 GHS SERV 7, UOX113 GS SES SERV 7 - NM 80 / Size 12 - SES (Light ball point) SERV 7 Packet of 10 Needles.

SES (Light ball point)
The light ball point displaces woven and knitted threads, directly piercing the spaces and avoiding damage to the material.

SCHMETZ SERV 7
Besides fabric damage, skip stitches are a problem that frequently arises when sewing elastic material. To prevent them, SCHMETZ developed the SERV 7 needle. This specially shaped needle is made for almost all needle systems, with all the main point shapes and in all current needle sizes.
The main distinguishing features of the SERV 7 design are the hump scarf that makes a particularly large loop of thread which can be more easily caught by the point of the hook and the blade reinforcement, that ensures the extraordinarily high stability of the needle. To produce the smallest possible stitch holes and optimise fabric displacement, the SERV 7 design thus often allows the use of a needle one size smaller without any reduction in the stability of the needle.
SERV 7 needles have a 15 % reinforcement, and as much as 20 % in some needle sizes. Therefore, the needle is especially stable and far less likely to “bend”. Neither the hook or looper nor other machine parts, e.g. the throat plate, are damaged.

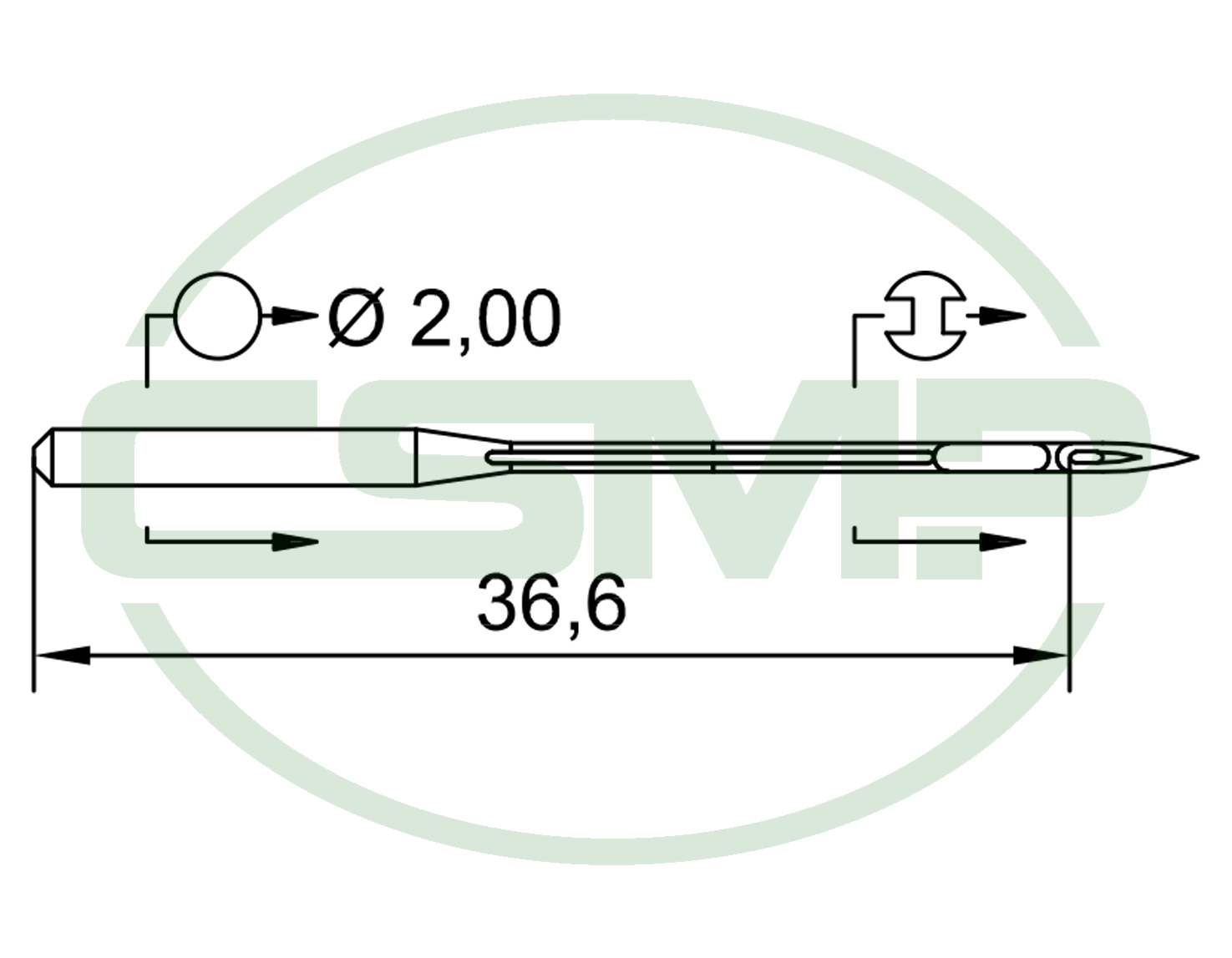

Needle Specification

Customary Needle Designations UY 113 GS SES SERV 7, UY 113 GHS SERV 7, UOX113 GS SES SERV 7
CANU 26:65EB17
NM / Size NM: 80 / Size: 12
Point Style SES (Light ball point)
Special Variant Special blade reinforcement and hump scarf, to avoid skipped stitches and reduce needle breakage
Type of Coating Chrome
Shank-ø 2 mm
Overall Length 41.4 mm
Length to Eye 36.6 mm
Shank Flattening Without shank flattening
Blade Shape Straight
Number of Grooves 3
Stitch Type Chainstitch

More Information

Part No UY113GSSESSEX80
Weight (KG) 0.015000
Manufacturer Schmetz
Needle Size NM 80 / Size 12
