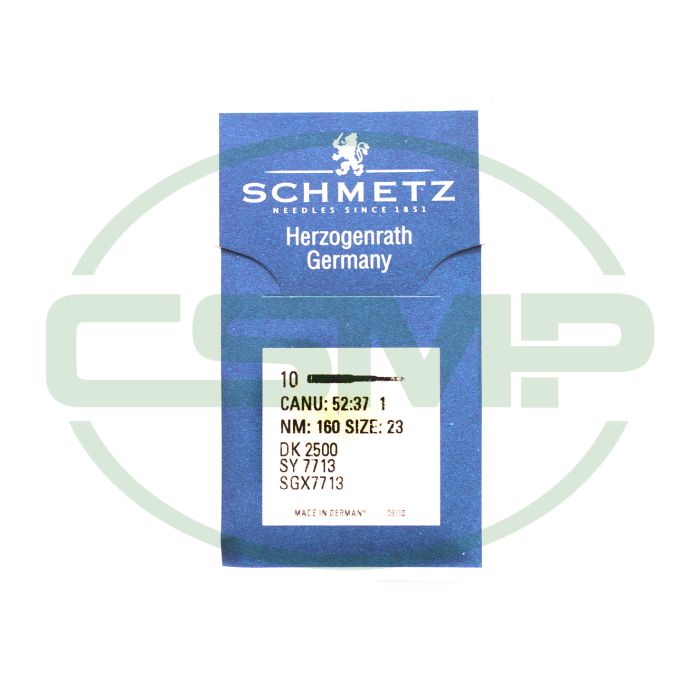

SY7713 DK2500 SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Part No
SY7713X160
Schmetz 52:37 1 - DK 2500, SY 7713, SGX7713 - NM 160 / Size 23 - STANDARD (Normal round point) Packet of 10 Needles.
£15.02
Ex. VAT
Only 13 Left In Stock!
Description / SY7713 DK2500 SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Schmetz 52:37 1 - DK 2500, SY 7713, SGX7713 - NM 160 / Size 23 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | DK 2500, SY 7713, SGX7713 |
|---|---|
| CANU | 52:37 1 |
| NM / Size | NM: 160 / Size: 23 |
| Point Style | STANDARD (Normal round point) |
| Type of Coating | Chrome |
| Shank-ø | 3.94 mm |
| Overall Length | 62.9 mm |
| Length to Eye | 54.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of grooves | 1 |
| Stitch Type | Chainstitch |
More Information
| Part No | SY7713X160 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 160 / Size 23 |
