SW100 100MM ROUND KNIFE RASOR CUTTER 220V
Description / SW100 100MM ROUND KNIFE RASOR CUTTER 220V

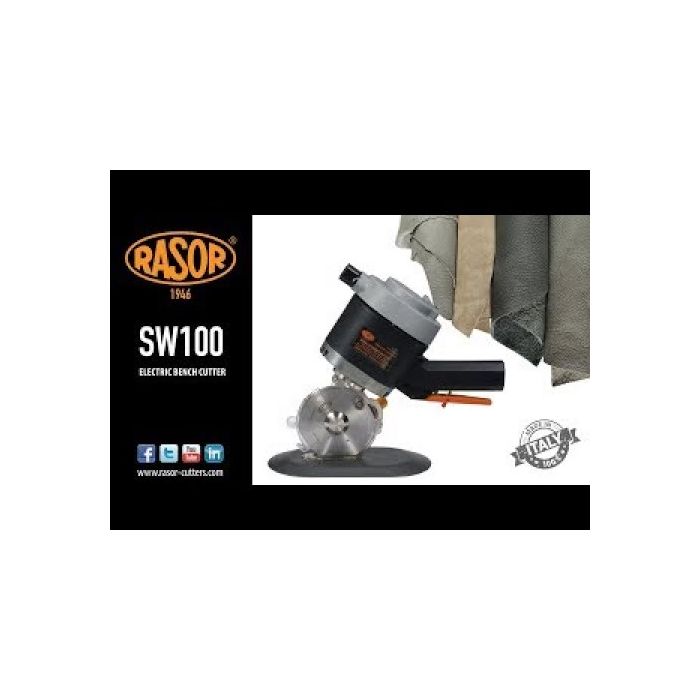

Rasor SW100
100mm Electric Bench Cutters
For over 40 years within the market, SW100 is the most efficient and popular bench cutting machine in textile and technical fabrics fields. It reached the highest level of technology and safety and can grant power and easy handling due to its weigh of only 3 kilos. The combination between blade and counterblade make the cut to be sharp and precise without any rag grinding. The 90Watt balanced and silenced motor combined with high resistance bronze/steel gear couplings create a longlasting stability. The 6-edge 100mm diameter knife allows to cut any kind of fabric up to 35mm thickness. The aluminium cutter base with rolls is Teflon® coated to be friction proof and grant an easy feed of the fabric with no efforts. The push button sharpening stone allow the sharpening of the knife edge to be done in less than 10 seconds without removing the knife. The low maintenance and low operation cost make surely SW100 to be the best cutting machine suitable for any application in textile and technical fabrics fields.
Description
The Rasor SW100, bench cutter model, is used in order to cut strong fabrics. By cutting with the blade and the counterblade always in contact and thanks to the steel upper quality of the blade supplied, SW100 cutter guarantees the clear separation without fraying of the two borders of the cut material. The fixture is extremely versatile, light and precise in the cutting operation. Thanks to the use of a sliding bearing base and an effective cutting system with a poligonal blade, it is possible to use the bench cutter to cut curved profiles not only in the textile and tannage sector, but also in several industrial sectors such as to cut polymers, thermoacoustic insulator, padding, neoprene, filters, synthetic and similar fabrics, moquette and internal parts of cars and ships.
The blade diameter (100mm) and the small weight (3Kg) makes this bench cutter the ideal fixture of cuts with small radius of curvature and with a thickness of up to 3.5cm. The wide sliding bearing base allows the operator to slide the cutter on the table without effort.
A sharpener assembled on the cutter heads allows whetting the blade at any moment without disassembling it. After carrying out this operation, it is possible to start cutting again.
Acoustic Level
The maximum sound pressure level emitted is approximately 60 dB (A). Airborne noise was detected in compliance with EN ISO 15744:2008. The noise levels emitted by the device at various detection distances (with no soundwave filtration system) vary by a few db (A).
Technical Specification
| Model | Rasor SW100 |
|---|---|
| 100mm Electric Bench Cutters | |
| Blade Diameter | 100 mm (4″), with hard metal counterblade |
| Blades Description | 10EHSS, 6-edges, HSS steel |
| Blades Speed | 850 r.p.m. |
| Cutting ability | 35 mm (1.4″) |
| Power | singlephase – 90 W |
| Max absorption | 2 A, with protection fuse |
| Net weight (with power supply cord) | 2950 g |
| Total weight (with packaging) | 4650 g |
| Electric cable length | 1.5 mt (with no plug) |
| Minimum brightness for working operations | 200 LUX |
| Vibrations at start up | < 2.5 m/sec 2 |
| Temperature range | 0 – 55 C |
| Humidity range | 10 – 95% without condensate |
More Information
| Part No | SW100 |
|---|---|
| Weight (KG) | 4.900000 |
| Manufacturer | Rasor |
