PEGASUS M952-16S-1.5/D222/Z054 ROLLED HEM DRIVE HEAD ONLY
Description / PEGASUS M952-16S-1.5/D222/Z054 ROLLED HEM DRIVE HEAD ONLY

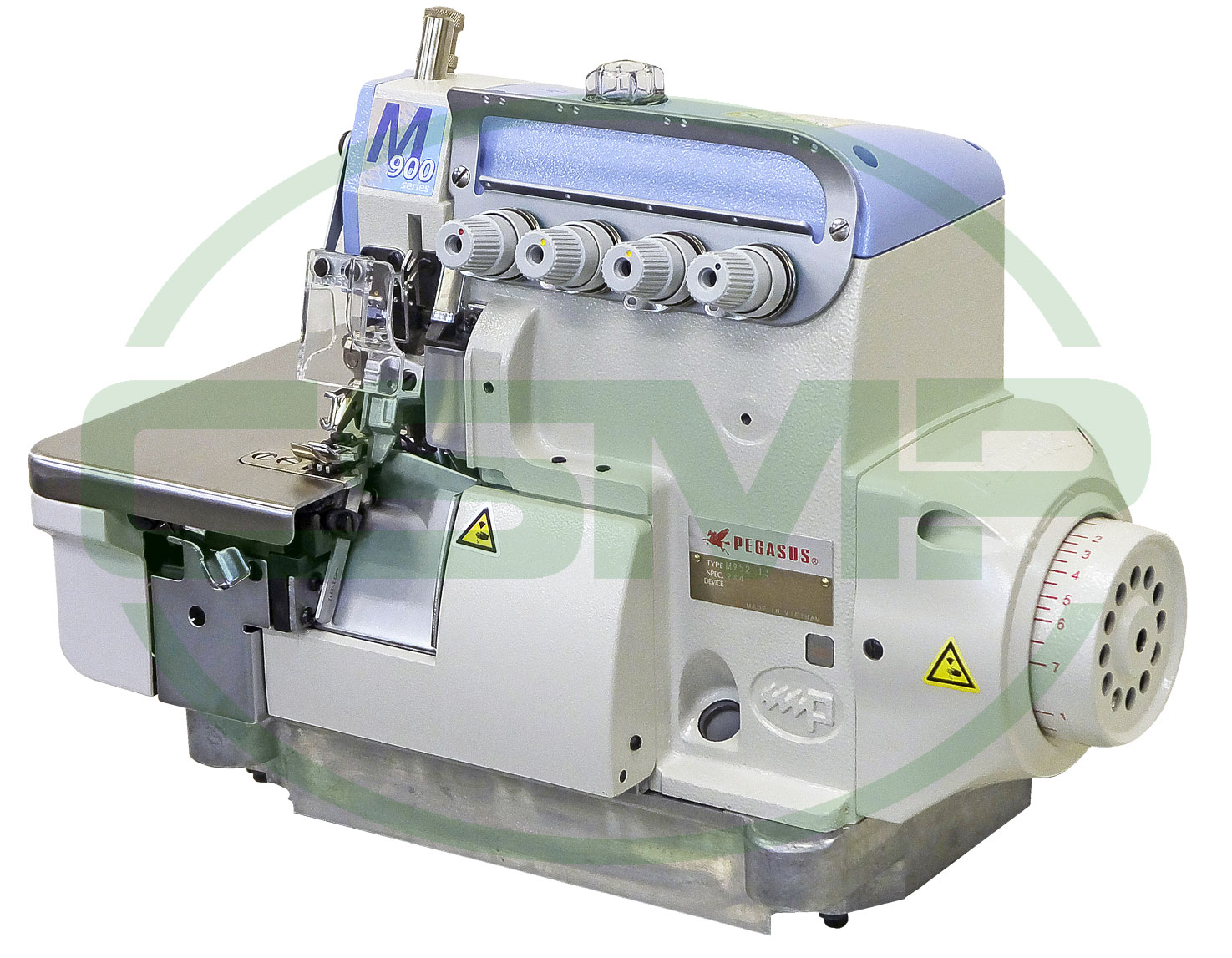

Pegasus M952-16S-1.5/D222/Z054
1-needle 3-threads, overedge (Turn down hemming) Machine for Light-to-Medium Weight
M900 Series - Basic Machines Futher Advanced
M900 Series, which was developed using all of PEGASUS' state-of-the-art technology, whilst maintaining cost effectiveness and quality, responds to various needs with a full line-up of subclasses. High speed rotation with minimal temperature, noise, and vibration contributes to increases in production.
Dirt and dust prevention measures strengthened further
Thanks to our excellent oil blocking mechanisms, including a totally enclosed needle bar chamber, with a force-drain function, and other similar features, the M900 Series protects your important sewn products from oil stains.
The upper looper machanism includes special functions, so dirt and dust prevention measures have been strengthened further. This machine-friendly feature prevents dirt and dust from getting into the inside of the machine, contributing to an increase in production
Equipped with Direct Drive Motor.
Designed and manufactured by PEGASUS.
Compliance with standard in EU.
Technical Specification
Model | Pegasus M952-16S-1.5/D222/Z054 |
---|---|
Stitch length adjustment | Push-button |
Differential feed ratio adjustment | Lever |
Lubrication | Fully-automatic |
Fabric Weight | Light~Medium |
Max. machine speed(sti/min) | 7,000 |
No. of needles | 1 |
No. of threads | 3 |
Needle space(mm) | - |
Overedge width | 1.5 |
More Information
Part No | M95216S215D222Z054 |
---|---|
Weight (KG) | 32.000000 |
Manufacturer | Pegasus |
