JUKI MH-484-54U UBT DIFFERENTIAL FEED SINGLE NEEDLE DOUBLE CHAINSTITCH
Description / JUKI MH-484-54U UBT DIFFERENTIAL FEED SINGLE NEEDLE DOUBLE CHAINSTITCH

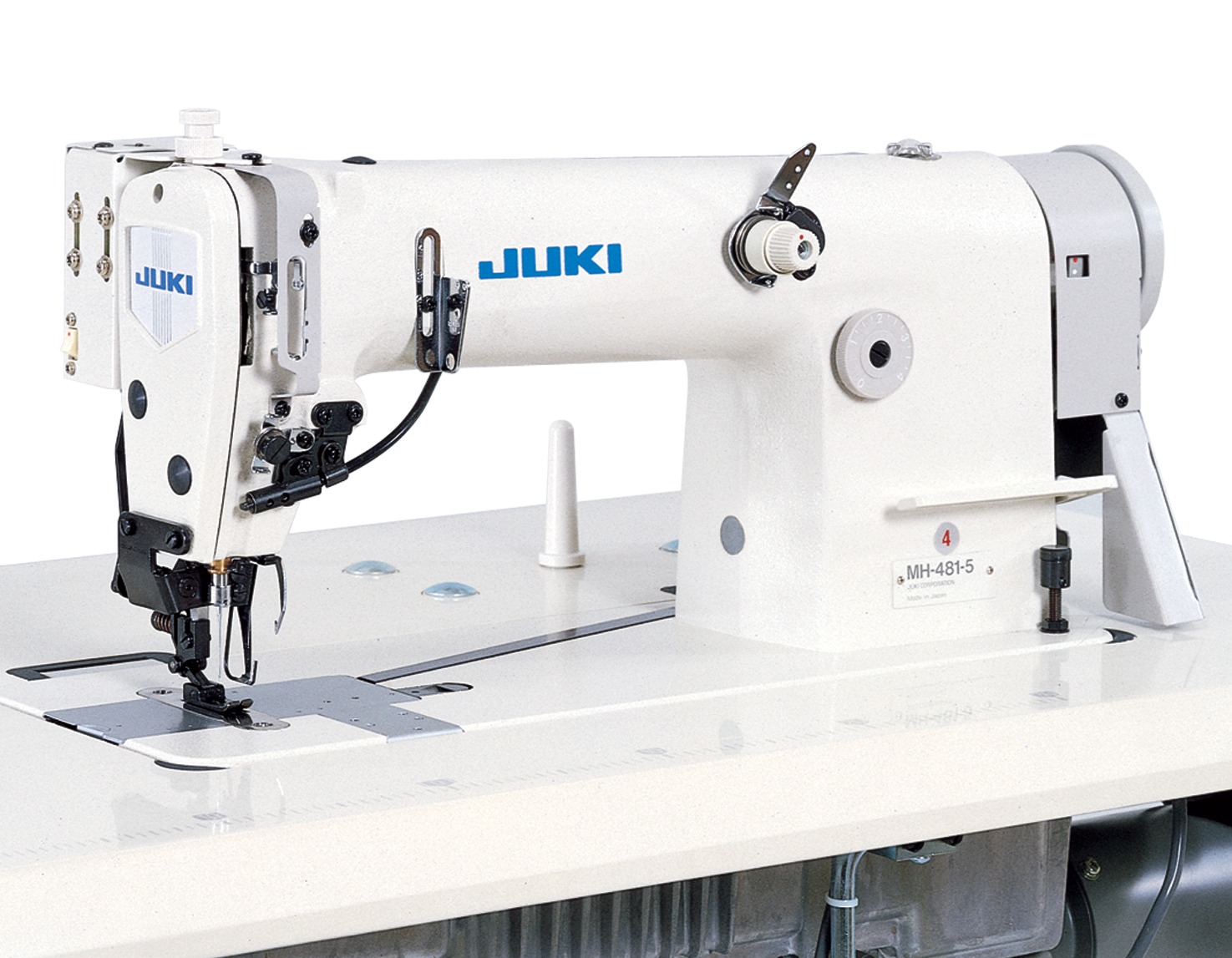

Juki MH-484-54U
1-needle, Double Chainstitch Differential-feed Machine (with automatic thread trimmer)
The machine finishes beautiful seams in elastic and light-weight materials. Furthermore, the differential-feed can be adjusted with the simple operation of a lever, thereby enabling the machine to respond to the requirements of many different kinds of sewing.
Change of sewing method with a simple lever operation
The sewing method can be alternated between stretch stitching and shirr stitching with the simple operation of a lever. This lever is also used to adjust the differential-feed ratio.
The machine is capable of gathering and partial shirring
A gathering attachment (S060), intermittent gathering attachment (S061) and partial shirring device (PF5) are optionally available to enable the machine to perform consistent gathering and partial shirring.
Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.
The machine is provided with mechanisms to enable upgraded sewing
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Safety stitching or reverse feed stitching with a simple lever operation
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.
APPLICATION FOR MH-484 SERIES
Application | Details |
---|---|
Men's Shirts | Attaching yokes on the back |
Slacks, pantaloons, ski pants | Attaching Wait Belts, joining sides, seam insides, or hip seams |
Coats, blazers | Sewing the center of the back, joining sides, sewing sleeves, belts, collars, and sewing the facing on to the front. |
Skirts | Sewing the center and joining sides |
One-piece suits, blouses, negligees | Making pleats or gathers |
Uniforns, jumpers | Sew side and sew interlining on the wrong side of the materials |
interior Decorations | Making pleats or gathers |
Technical Specification
Model name | Juki MH-484-54U |
---|---|
Feed system | Differential-feed |
Max. sewing speed | 5,500rpm |
Stitch length | Main feed: 1~4mm Differential-feed: 1~5.6mm |
Top-feed amount | - |
Differential-feed ratio | Max. gathering stitching 1: 3 (standard 1: 1.5) Max. stretch stitching 1: 0.5 |
Lift of the presser foot | By hand: 5mm, By knee: 10mm |
Needle bar stroke | 30mm |
Needle | TV × 7 (#11) #9~#18 |
Stitch length adjustment | By dial |
Safety stitch | Condensation stitch/reverse stitching (by feed lever) |
Looper system | Inclined crank |
Looper stroke | 21.5mm |
Looper stroke of the front and rear | 2.1~3.3mm |
Speed control | *(1) |
Lubrication | Automatic |
Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
Motor output | 750W |
Power requirement | Single-phase, 3-phase |
Power consumption | Rating 425VA |
*"sti/min" stands for "Stitches per Minute."
*(1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable)
