JUKI MH-481U BOTTOM FEED SINGLE NEEDLE DOUBLE CHAINSTITCH
Description / JUKI MH-481U BOTTOM FEED SINGLE NEEDLE DOUBLE CHAINSTITCH
Juki MH-481U
1-needle, Double Chainstitch Machine
The machine comes with a silicon oil lubricating unit, thread spreading mechanism and thread trimming mechanism which trims the thread without fail, thereby consistently ensuring beautifully-finished seams for light- to medium-weight materials.
The machine is provided with mechanisms to enable upgraded sewing

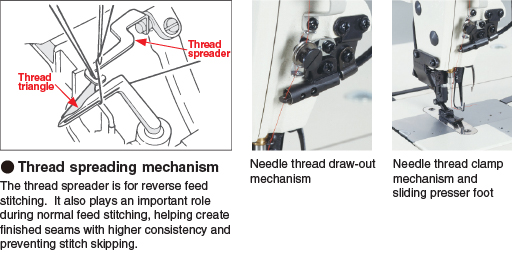

The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Safety stitching or reverse feed stitching with a simple lever operation
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.
APPLICATION FOR MH-481 SERIES
Application | Details |
---|---|
Men's Shirts | Attaching yokes on the back |
Slacks, pantaloons, ski pants | Attaching Wait Belts, joining sides, seam insides, or hip seams |
Coats, blazers | Sewing the center of the back, joining sides, sewing sleeves, belts, collars, and sewing the facing on to the front. |
Skirts | Sewing the center and joining sides |
One-piece suits, blouses, negligees | Making pleats or gathers |
Uniforns, jumpers | Sew side and sew interlining on the wrong side of the materials |
interior Decorations | Making pleats or gathers |
Technical Specification
Model name | Juki MH-481 |
---|---|
Feed system | Bottom-feed |
Max. sewing speed | 5,500rpm |
Stitch length | 1~4mm |
Top-feed amount | - |
Differential-feed ratio | - |
Lift of the presser foot | By hand: 5mm, By knee: 10mm |
Needle bar stroke | 30mm |
Needle | TV × 7 (#11) #9~#18 |
Stitch length adjustment | By dial |
Safety stitch | Condensation stitch/reverse stitching (by feed lever) |
Looper system | Inclined crank |
Looper stroke | 21.5mm |
Looper stroke of the front and rear | 2.1~3.3mm |
Speed control | - |
Lubrication | Automatic |
Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
Motor output | - |
Power requirement | - |
Power consumption | - |
*"sti/min" stands for "Stitches per Minute."
More Information
Part No | JUKIMH481U |
---|---|
Weight (KG) | 41.000000 |
Manufacturer | Juki |
