JUKI LS-2342H-7 CYLINDER ARM WALKING FOOT
Description / JUKI LS-2342H-7 CYLINDER ARM WALKING FOOT
Juki LS-2342H-7
Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis Hook for Coarse Yarn (with large vertical-axis hook and gauge for small articles and automatic thread trimmer)
High and semi-long arm has been adopted.
The long distance from the machine arm to the needle contributes to improved workability.
The machine is suited to furniture and bags, provided with dramatically improved workability and functions required for sewing large products and extra heavy-weight materials.
Excellent for the sewing of sharp curves

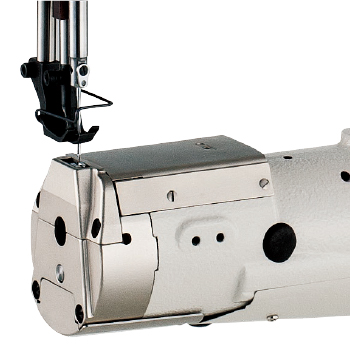

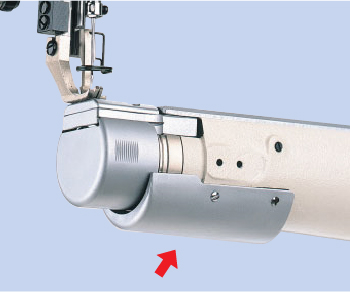

The slimmed-down throat plate easily responds to the sewing of small tubular articles with diameters as small as φ40mm. This enhances the machine's ability to smoothly sew not only bags and furniture, but also small articles such as wallets.
Gauge for small articles are provided as standard
The throat plate and feed dog are provided with a gauge that offers an excellent capability for the sewing of sharp curves. These gauges are especially useful for the sewing of curves of bags and leather cases.

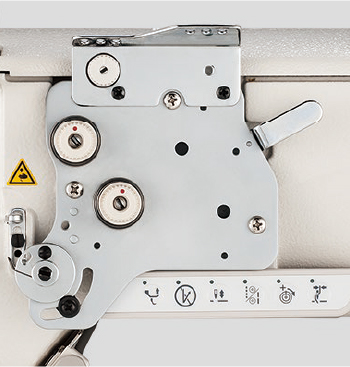

Double tension provided as : standard
A dual-tension is provided as standard responding to the sewing with thick thread under a higher tension.

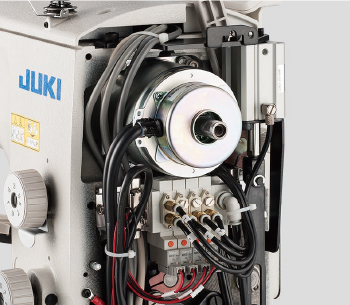

High-torque direct-drive motor is installed
This machin has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
Wider space under the machine arm
The machine has a wider free space under the machine arm to allow the operator to easily place and remove a large sewing products. In addition, the machine has outstanding capabilities in the sewing of sharp curves.
Multi-functional 6-string switch
The 6-string switch can make one-stitch correction, stitch length changeover and needle thread tension changeover, etc. by one button push each. A switch not used for any function can be optionally given a function.
Technical Specification
| Model name | Juki LS-2342H-7-0B |
|---|---|
| Max. sewing speed | 2,000sti/min* |
| Max. stitch length | 9mm (Normal/Reverse feed) |
| Stitch length dial | 2 pitch dial |
| Lift of the presser foot | By auto: 20mm, By hand: 10mm |
| Hook | Vertical-axis 1.6 fold-capacity hook |
| Needle (at the time of delivery) | 134×35 (Nm100~Nm180, Nm180) |
| Thread | #20~#0 (US:#69~#266, Europa:40/3~10/3) |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKILS2342H7 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Juki |
