JUKI LBH-1796A-S BUTTON HOLE INDEXER HEAD ONLY
Description / JUKI LBH-1796A-S BUTTON HOLE INDEXER HEAD ONLY

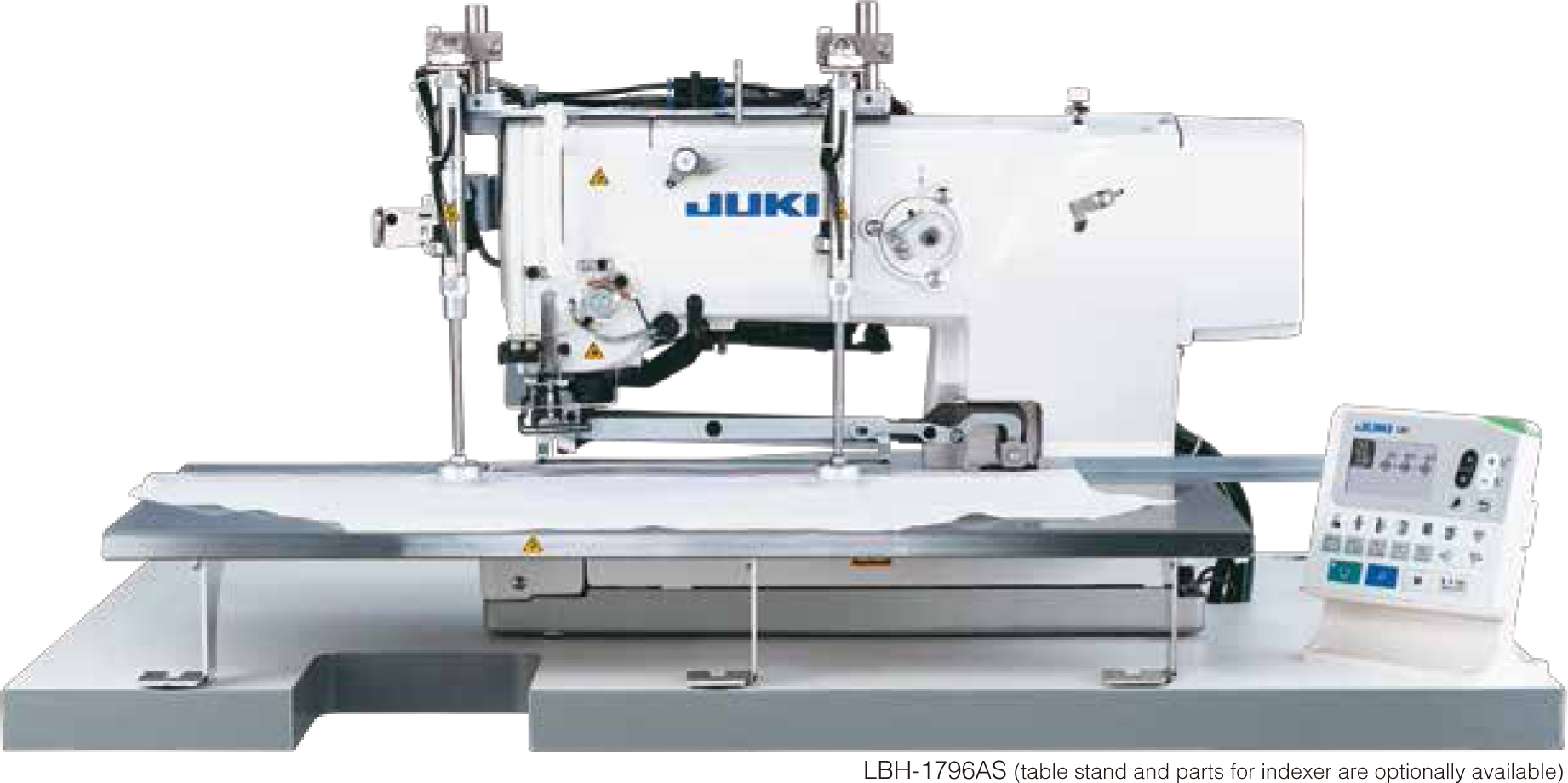

Juki LBH-1796AS
Computer-controlled, High-speed, Buttonholing Machine (220mm presser type)
Increased productivity is ensured!
In case of using 2 units LBH-1796A, The machine carries out a series of placket setting processes at 16 sec/pcs.It achieves 5.2 times as productive as general-purpose machines.
LBH-1796A
The LBH-1796A is a subclass model of the LBH-1790A Series. This product is provided with a 220mm work clamp foot.
It follows the world's highest sewing speed, deeply recessed shape of the machine head and dry-head mechanism of the existing LBH-1790A. In addition, the LBH-1796A can also be used as a simplified indexer to sew three buttonholes in a row

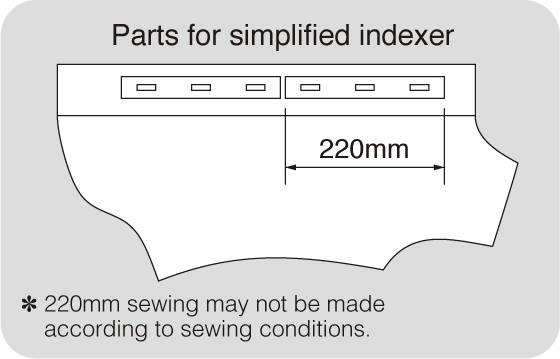

Simplified buttonholing indexer
When the optionally-available indexer mechanism is installed on the LBH-1796B, the operator can attend to two units of this model of sewing machine at one time or can use the LK-1903B button sewing machine together with the LBH-1796A, thereby not only further increasing productivity, but also ensuring consistent product quality due to the production capability without requiring the operator to have any special skills.

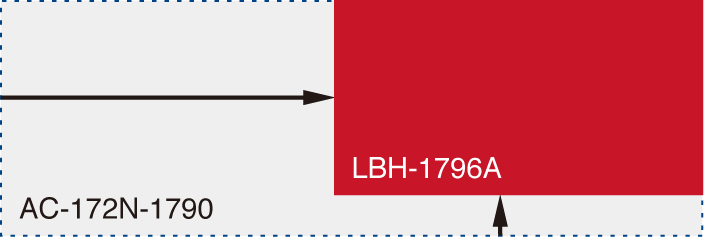

Space-saving
As with the general-purpose indexer, the simplified indexer for the LBH-1796A permits easy addition to and change of the production line, thereby contributing to saved installation space. The table area of the LBH-1796A is 56% less than that of the AC-172N-1790.

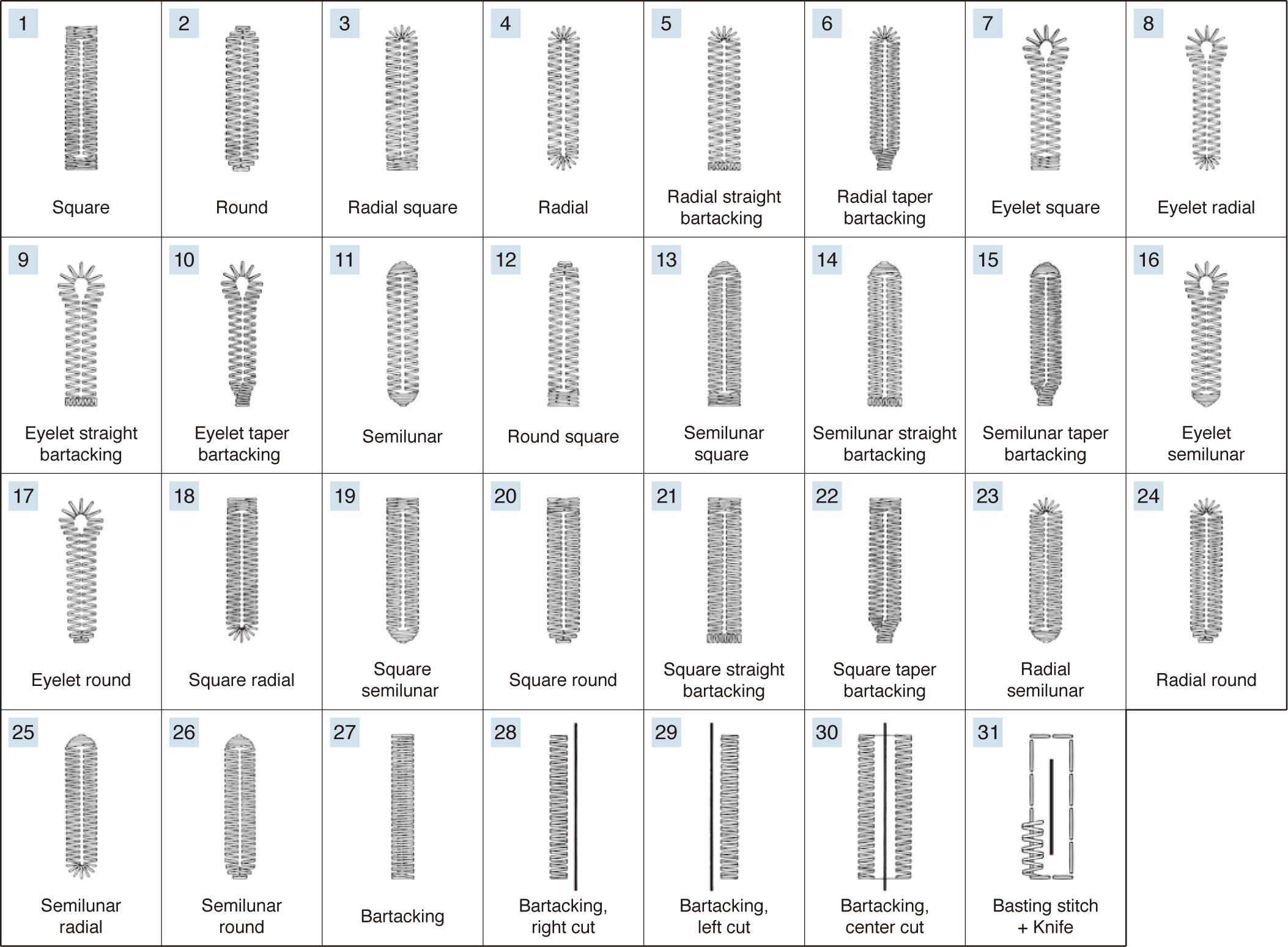

The machine is provided as standard with as many as 31 stitch patterns for buttonholing.
It is able to store 99 different patterns in its memory, which can be selected as desired from the operation panel.

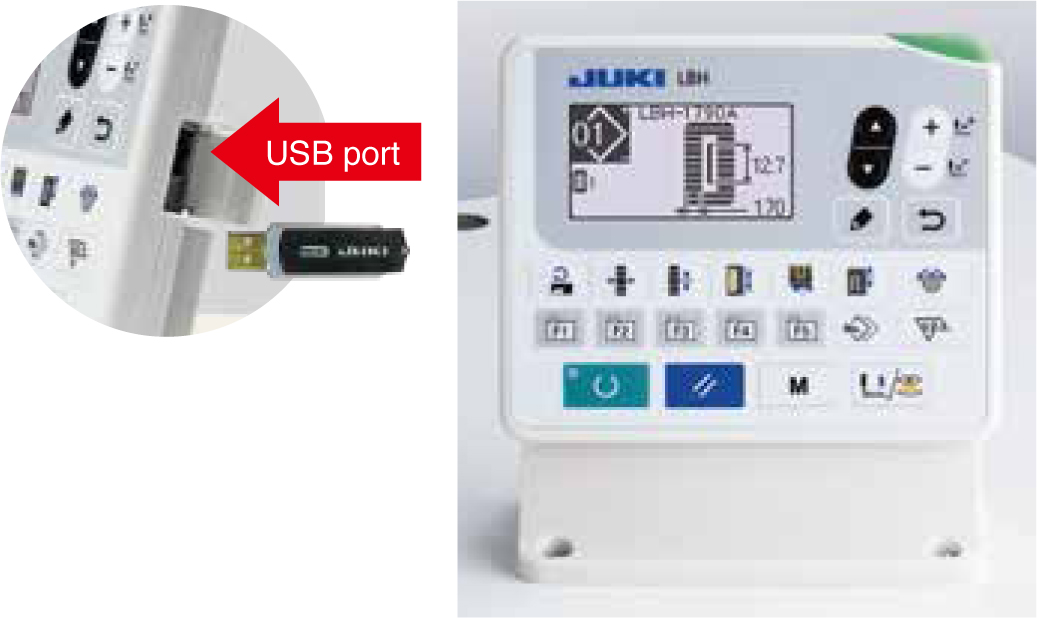

OPERATION PANEL - STANDARD LIQUID CRYSTAL PANEL (NEW)
USB Port is provided as standard on the standard panel
The memory storage capability of the main body of the sewing machine has been dramatically enhanced. Now the USB-ready main body of the sewing machine uses many different kinds of media. The main body of the sewing machine is provided as stanrard with a USB port. Now, date can be input/output to/from various kinds of media (SD (Secure Digital Card), CF (Compact Flash), etc.) by means of a USB thumb device and a card reader.
Technical Specifications
| Model | Juki LBH-1796A |
|---|---|
| Sewing speed | Max. 4,200sti/min, Normal 3,600sti/min When the non-lubricated hook (optional) is used: 3,300sti/min |
| Needle bar stroke | 34.6mm |
| Size of cloth cutting knife | 6.4~25.4mm |
| Bartacking width | Max. 5.0mm |
| Buttonhole length | Max. 220mm |
| Precision of needle throwing mechanism | 0.05mm |
| Needle thread tension | Active tension (electronic thread tension control system) |
| Number of stitches | Automatically computed from the size of the buttonhole and stitch pitch |
| Hook | DP type, full-rotary hook Non-lubricated hook (optional) |
| Lift of the work clamp | Parallel lifting 6mm |
| Auto-lifter | Provided as standard (stepping motor type) |
| Needle throwing system | Stepping motor |
| Cloth feeding system | Intermittent feed by stepping motor |
| Cloth cutting knife system | Stepping motor |
| Number of standard patterns | 31 patterns |
| Number of patterns that can be input | Max. 99 patterns |
| Bobbin thread winder | Built-in the machine head |
| Machine head drive system | Compact AC servomotor (direct-drive system) |
| Power requirement / Power consumption | 3-phase 200~240V/250VA |
| Lubrication | Only the hook section needs a minute-quantity lubrication. No lubrication is required when the non-lubricated hook (optional) is used. |
| Lubricating oil | Hook: JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Weight | Machine head (include motor) 55kg, Control box 6kg |
More Information
| Part No | JUKILBH1796AS |
|---|---|
| Weight (KG) | 34.000000 |
| Manufacturer | Juki |
