JUKI DSC-245U-X55278 CYLINDER ARM BINDING MACHINE HEAD ONLY
Description / JUKI DSC-245U-X55278 CYLINDER ARM BINDING MACHINE HEAD ONLY
Juki DSC-245U-X55278
Cylinder-bed, 1-needle, Unison-feed, Lockstitch Binding Machine

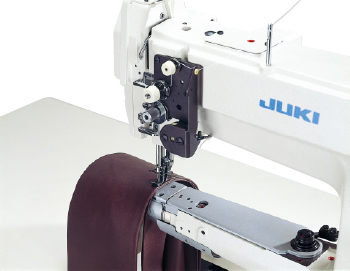

The DSC Series of sewing machine for sewing tubular materials such as bags and shoes has an outstanding ability to sew small curves smoothly.
The DSC Series of sewing machine for sewing tubular materials such as bags and shoes has an outstanding ability to sew small curves smoothly
With its consistent seam quality and sharp-curve sewing function, the JUKI DSC Series of cylinder-bed, 1-needle, unison-feed, lockstitch machines has earned an outstanding reputation. A further-upgraded DSC Series is now launched. The machine is provided with automatic thread trimmer and comes with thoroughly-redesigned electrical components, thereby ensuring higher power and improved reliability.
JUKI is confident that its newly launched DSC Series is provided with all the essentials needed for the sewing of heavy materials.

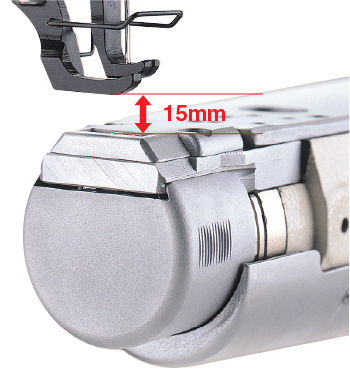

When using the knee lifter, the lift of the presser foot is as high as 15mm (Machine without a thread trimemer)
For the machine provided with a thread trimmer, the lift of the presser foot is as high as 13mm, allowing the operator to handle the material with ease.
automatically lubricated for hook (DSC-245, DSC-245-7)
The machine is equipped with a new automatic hook-lubricating system that automatically lubricates the hook. With this feature, a maintenance-free hook has finally materialized.
Technical Specification
| Model name | Juki DSC-245 |
|---|---|
| Max. sewing speed | 2,200sti/min* |
| Max. stitch length | 6mm (normal/reverse feed) |
| Needle bar stroke | 36mm |
| Lift of the presser foot | By hand: 9mm, By knee: 15mm |
| Thread take-up | Slide type |
| Alternating vertical movement | 3.0~4.8mm |
| Hook | Horizontal-axis full-rotary hook |
| Needle (at the time of delivery) | DP×17 (#18) #14~#21 |
| Thread | #50~#20, B33~B69, Nm=120/3~40/3 |
| Lubrication | By an oiler (hook: automatic) |
| Lubricating oil | JUKI New Defrix Oil No. 1 (equivalent to ISO VG7) |
| Cylinder-bed diameter | ø 46mm |
| Distance from needle to machine arm | 264mm |
| Weight of the machine head | 36kg |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKIDSC245X55278 |
|---|---|
| Weight (KG) | 45.000000 |
| Manufacturer | Juki |
