JUKI DDL-8000AP-SHNBN HEAVY WEIGH AUTO LOCKSTICH
Description / JUKI DDL-8000AP-SHNBN HEAVY WEIGH AUTO LOCKSTICH
Juki DDL-8000AP-SH (Minute-quantity lubrication type)
- Direct-drive, High-speed, 1-needle, Heavy-Weight Lockstitch Machine with Automatic Thread Trimmer.
Good Value Models with JUKI Quality and Friendly to Operators, The DDL-8000A Series maintains JUKI's established seam quality and is provided with narrowed-down essential and simplified functions.
It helps improve the work efficiency through operator assistance with its audio guidance.

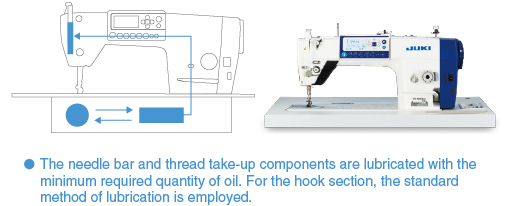

Minute-quantity lubrication type - Juki DDL-8000A-SH
The machine contributes to production improvement.
The DDL-8000A-SH is the standard model developed with the emphasis on durability. It produces seams with consistency when run at speeds which falls in the range of the highest sewing speeds.
Voice guidance for assisting the operator (newly-developed LCD panel)
This sewing machine is provided as standard with the voice guidance with clock function.
USB port standard equipment
Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.
Production support function
The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set. These pieces of data that provide an indication for the operator will contribute to enhanced production support.
Automatic turning OFF function of the operation panel backlight
The backlight of the operation panel is automatically turned OFF when the operation panel is not operated for a certain period of time. (Setting time: 1- 20 minutes)
LED hand light
Illuminance of the LED hand light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.
Technical Specifications
| Model | Juki DDL-8000AP-SH |
|---|---|
| Specification | Standard type |
| Application | heavy-weight |
| Lubrication | Minute-quantity lubrication |
| Max. sewing speed | 4,500sti/min*1 |
| Max. stitch length | 5mm |
| Lift of the presser foot | By hand: 5.5mm Auto: 1st stage 8.5mm, 2nd stage 13mm By knee: 15mm |
| Voice guidance | with voice guide |
| Lubricating oil | JUKI Machine Oil 7 (equivalent to ISO VG7) |
| Needle | DB×1 (#21) #20~23 (134Nm125~160) |
| Power consumption | 330VA (Main motor output 550W) |
*1 sti/min is the abbreviation for “stitches per minute”
*2 When the optional long pitch kit is installed: 7mm (normal feed), 5mm (reverse feed)
More Information
| Part No | JUKIDDL8000APSHNBN |
|---|---|
| Weight (KG) | 50.000000 |
| Manufacturer | Juki |
