JUKI MO-6905G-0M6-700 3 THREAD HEAVY DUTY O/L HEAD ONLY
Part No
JUKIMO6905G0M6700

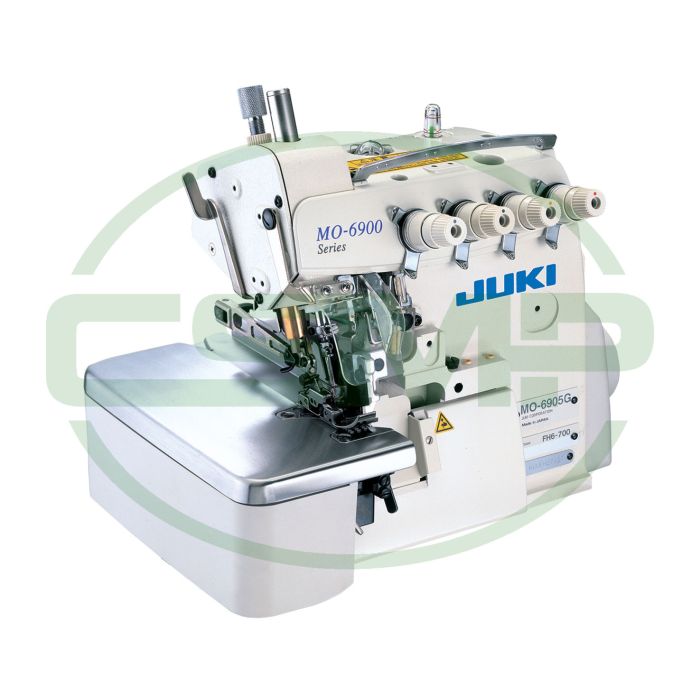

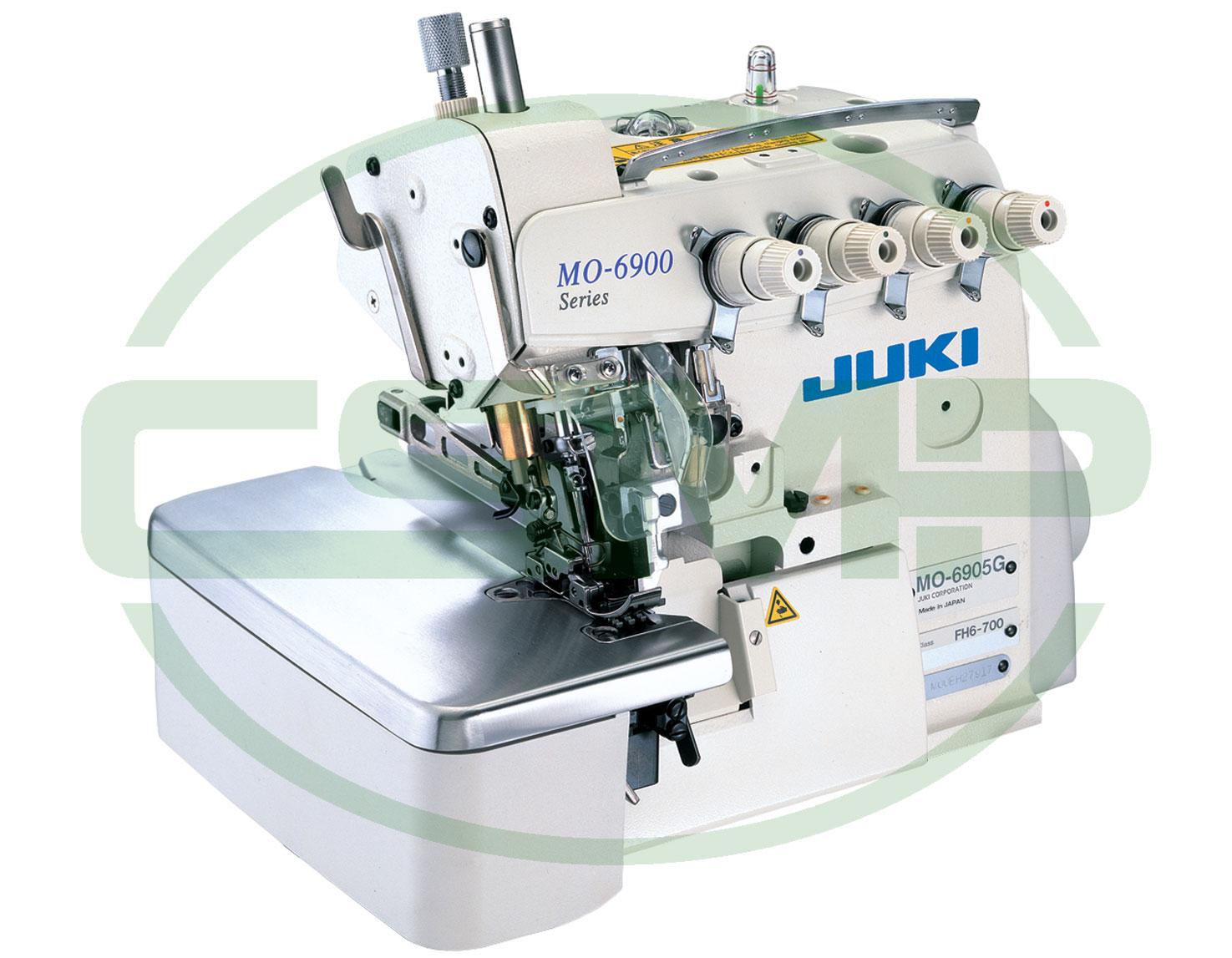

Juki MO-6905G-0M6-700
Bottom-feed, 1-Needle 3-Thread Overlock / Safety Stitch Machine for overedging carpets (for Extra Heavy-weight Materials)
Pricing and Availability on Request
Description / JUKI MO-6905G-0M6-700 3 THREAD HEAVY DUTY O/L HEAD ONLY
Juki MO-6905G-0M6-700
Bottom-feed, 1-Needle 3-Thread Overlock / Safety Stitch Machine for overedging carpets (for Extra Heavy-weight Materials)
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials.
The machine incorporates a mechanism and parts that are optimum for the sewing of extra heavy-weight materials, such as an extra high-lift type upper looper, tractor foot and coarse type feed dog.
It demonstrates an excellent performance ability in the sewing of various kinds of heavy-weight materials such as jeans, raised fabric materials, mats and carpets.
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials
The machine securely clamps the material at the beginning of sewing as well as smoothly sewing multi-layered parts of the material to facilitate the sewing of extra heavy-weight materials.
- The machine incorporates mechanisms that are both durable and reliable, such as the needle bar mechanism, utilyzing the upper and lower bushings, a cartridge type oil filter and cooling fan.
- The machine is equipped as standard with a micro-lifter that helps reduce operator fatigue. The micro-lifter is designed to achieve optimum balance, not only reducing noise and vibration but also ensuring comfortable operation.
- Needle thread heat remover and needle cooler prevent stitching troubles during times of high-speed sewing, thereby contributing to upgraded seam quality.
- The machine comes standard with various adjusting mechanisms, such as a micro-adjusting mechanism, all of which can be easily adjusted to enable the machine to perform sewing under the best-suited conditions for any kind of material.
Subclass Specification
| Subclass Model | Juki MO-6905G-0M6-700 |
|---|---|
| Application | For Overedging Carpets, mats for entrance halls, etc. |
| Material | Extra Heavy-Weight |
| Number of Needles | 1 |
| Number of Threads | 3 |
| Needle Gauge | - |
| Overedging Width | 10.0mm |
| Number of Feed Dog Rows | 3 |
| Stitch Length | 7mm |
| Bottom differential-feed ratio | - |
| Longitudinal stroke of top feed dog | - |
| Presser lifting amount | 7mm |
| Needle system | DCx1 #24 |
| Max sewing speed | 4,000 sti/min- |
| Remarks | For Overedging Carpets, mats for entrance halls, etc. |
* “sti/min” stands for “Stitches per Minute”
Technical Specification
| Model name | Juki MO-6905G |
|---|---|
| Stitch type | For Overedging Carpets |
| Stitch style in the U.S.A. | 505 |
| Max. sewing speed | 4,400 sti/min* |
| Stitch length | 2.5~5mm |
| Needle gauge (mm) | - |
| Overedging width (mm) | 4.8, 10.0, 18.0 |
| Differential feed ratio | For gathering 1:1.75 (max. 1:3.8) For stretching 1:0.7 (max. 1:0.6) |
| Needle bar stroke | 28.8mm |
| Inclination angle of the needle | 20° |
| Needle bar bushing | Upper/lower bushing method |
| Needle | DO×5 (excluding some subclass model) |
| Max. lift of the presser foot | 8mm (excluding some subclass model) |
| Max. presser foot pressure | 63.7N (6.5kgf) |
| Stitch adjusting method | By push-button |
| Differential-feed adjusting method | By lever (with micro-adjustment) |
| Weight of the machine head | 28kg |
| Lubrication | Automatic |
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) |
| Needle cooler | Provided as standard (excluding some subclass model) |
| Needle thread heat remover | Provided as standard |
| Micro-lifter | Provided as standard |
* “sti/min” stands for “Stitches per Minute”
More Information
| Part No | JUKIMO6905G0M6700 |
|---|---|
| Weight (KG) | 34.000000 |
| Manufacturer | Juki |
