JUKI MH-486-54U/PF3 SINGLE NEEDLE DOUBLE CHAINSTITCH TOP & BOTTOM FEED
Description / JUKI MH-486-54U/PF3 SINGLE NEEDLE DOUBLE CHAINSTITCH TOP & BOTTOM FEED
Juki MH-486-54U/PF3
1-needle, Double Chainstitch, Bottom and Variable Top-feed Machine (with automatic thread trimmer)
An easy-to-operate, high-precision presser foot, feed dog and thread draw-out mechanism have been developed for this sewing machine so that any operator can finish seams of the highest quality.
The machine flexibly adapts to a wider range of light- to heavy-weight materials, process changes, and sewing specifications, including partial shirring.
The machine incorporates many functions and places a great deal of importance on higher product quality
The machine comes with many different functions to prevent uneven material feed and puckering for higher-quality seams.

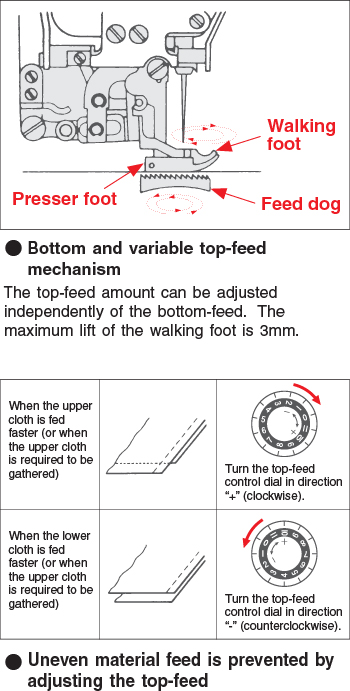

The machine is adaptable to a wider variety of light-to heavy-weight materials and takes full advantage of top-feed mechanism.
This enables unskilled operators to finish seams of consistent quality.
The top-feed dog has been designed so that the operator can smoothly place the material to be sewn on it.
Furthermore, the gauge can be easily replaced and stitch adjustment can be performed without difficulty
The machine comes with a forced lifting mechanism for the top-feed dog. This enables the operator to place the material to be sewn on the top-feed dog more smoothly. The machine incorporates its exclusive chain-off thread presser pedal foot, which improves seam quality and ease of operation.
The exclusive gauge comes in five different types, and the gauges can be replaced in a simple procedure. This facilitates the required adjustment when changing the needle count.
The machine is also capable of performing partial shirring
The machine works effectively for processes which require partial shirring as long as the partial shirring device (PH-3) is used in combination with the partial shirring dial.
The partial shirring device comes in two different types, the kneepad drive type and the pedal drive type.
The machine is provided with mechanisms to enable upgraded sewing

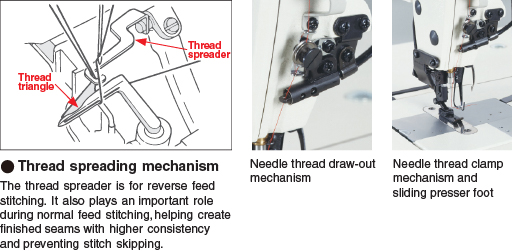

The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Safety stitching or reverse feed stitching with a simple lever operation
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.
APPLICATION FOR MH-486 SERIES
| Application | Details |
|---|---|
| Men's Shirts | Attaching yokes on the back |
| Slacks, pantaloons, ski pants | Attaching Wait Belts, joining sides, seam insides, or hip seams |
| Coats, blazers | Sewing the center of the back, joining sides, sewing sleeves, belts, collars, and sewing the facing on to the front. |
| Skirts | Sewing the center and joining sides |
| One-piece suits, blouses, negligees | Making pleats or gathers |
| Uniforns, jumpers | Sew side and sew interlining on the wrong side of the materials |
| interior Decorations | Making pleats or gathers |
Technical Specification
| Model name | Juki MH-486-54U/PF3 |
|---|---|
| Feed system | Bottom and variable top-feed |
| Max. sewing speed | 4,500rpm |
| Stitch length | 1~5mm |
| Top-feed amount | 0~7mm |
| Differential-feed ratio | - |
| Lift of the presser foot | By hand: 5mm, By knee: 7mm |
| Needle bar stroke | 33mm |
| Needle | TV × 7 (#11) #9~#21 |
| Stitch length adjustment | By dial |
| Safety stitch | Condensation stitch/reverse stitching (by feed lever) |
| Looper system | Inclined crank |
| Looper stroke | 21.5mm |
| Looper stroke of the front and rear | 3.2mm |
| Speed control | *(1) |
| Lubrication | Automatic |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Motor output | 750W |
| Power requirement | Single-phase, 3-phase |
| Power consumption | Rating 425VA |
*"sti/min" stands for "Stitches per Minute."
*(1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable)
More Information
| Part No | JUKIMH4865 |
|---|---|
| Weight (KG) | 34.000000 |
| Manufacturer | Juki |
