JUKI DNU-1541 UNISON FEED LOCKSTITCH HEAD ONLY
Description / JUKI DNU-1541 UNISON FEED LOCKSTITCH HEAD ONLY
Juki DNU-1541
1-needle, Unison-feed, Lockstitch Machine with Double-capacity Hook
With its reliable feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.
With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.
Excellent sewing capabilities and feed performance

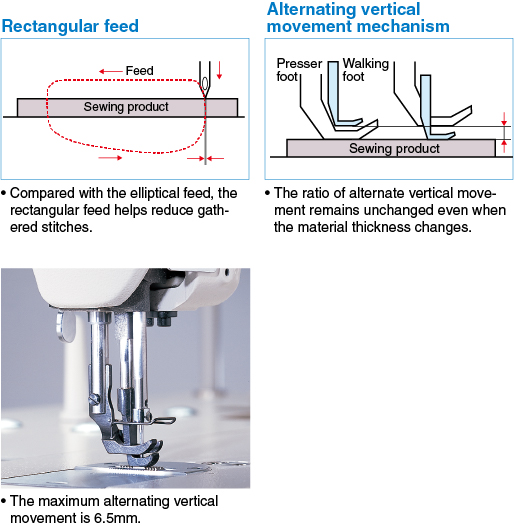

The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm.
In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.
High-speed performance increases productivity
The machine delivers increased productivity at sewingspeeds as high as 2,500sti/min.
The vertical stroke of the walking foot and presser foot can be easily set and changed

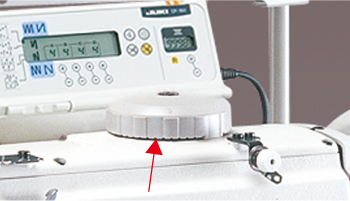

The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stroke setting. This ensures ideal sewing conditions at all times.
A helpful automatic reverse feed function is provided as standard

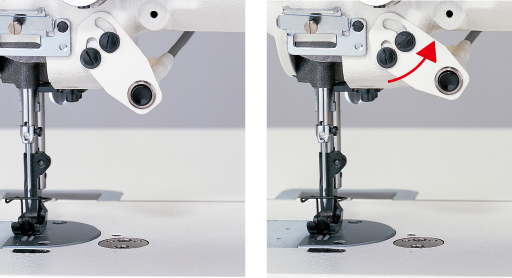

With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.

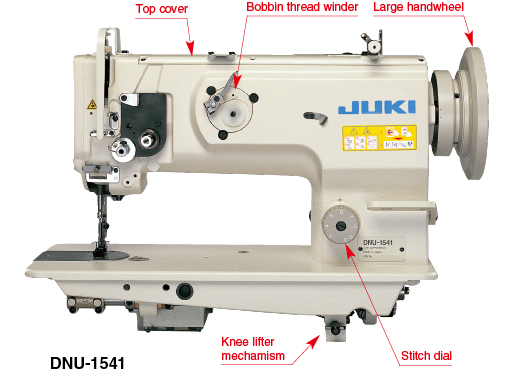

Excellent operability and maintainability
The stitch length can be easily selected by the stitch dial.
The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel (φ160mm).
A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.
The machine’s full-open-type top cover design makes adjusting works easier.
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (Hook : automatic.)
A walking foot mechanism is built into the machine arm to prevent oil from scattering

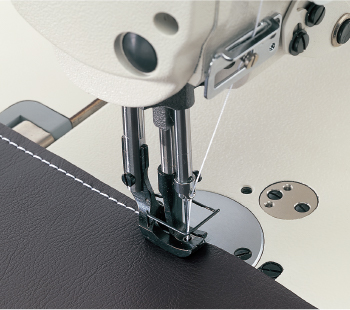

The area around the needle entry is designed to be easily observed
Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.
Technical Specification
| Model name | Juki DNU-1541 |
|---|---|
| Max. sewing speed | 2,500sti/min* |
| Max. stitch length | 9mm (forward / backward) |
| Needle bar stroke | 36mm |
| Lift of the presser foot | By hand: 9mm, By knee: 16mm |
| Thread take-up | Slide type |
| Amount of alternating vertical movement | 2.5~6.5mm |
| Dial for adjustment of alternating vertical movement | |
| Bottom-feed adjusting mechanism | - |
| Hook | Horizontal-axis full-rotary double-capacity hook |
| Needle (at the time of delivery) | 135×17 (Nm160) Nm125~Nm180 |
| Thread | #30~#5, B46~B138, Nm=60/3~15/3 |
| Pitch changing method | By dial |
| Bobbin thread winder | Provided as standard |
| Knee-lifter mechanism | Provided as standard |
| Safety mechanism | - |
| Lubrication | Centralized oil wick lubrication (hook: automatic) |
| Lubricating oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) |
| Distance from needle to machine arm | 264mm |
| Bed size | 477mm×178mm |
| Automatic reverse feed function | Option |
| Compressed air and air consumption | - |
| Motor output | 750W |
| Power requirement | - |
| Weight of the machine head | 36.5kg |
*sti/min is the abbreviation for “stitches per minute”
More Information
| Part No | JUKIDNU1541 |
|---|---|
| Weight (KG) | 50.000000 |
| Manufacturer | Juki |
