JM110LR JEMA HOT & COLD CUT STRIP CUTTER
Description / JM110LR JEMA HOT & COLD CUT STRIP CUTTER

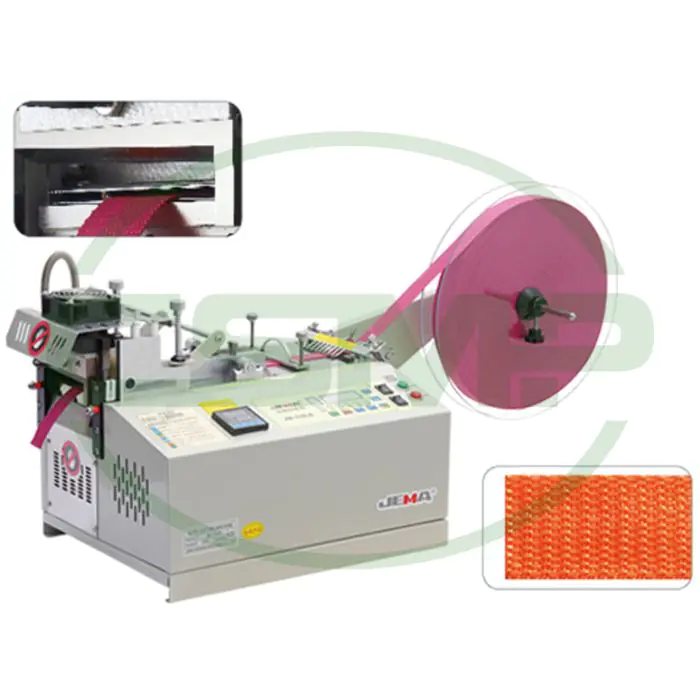

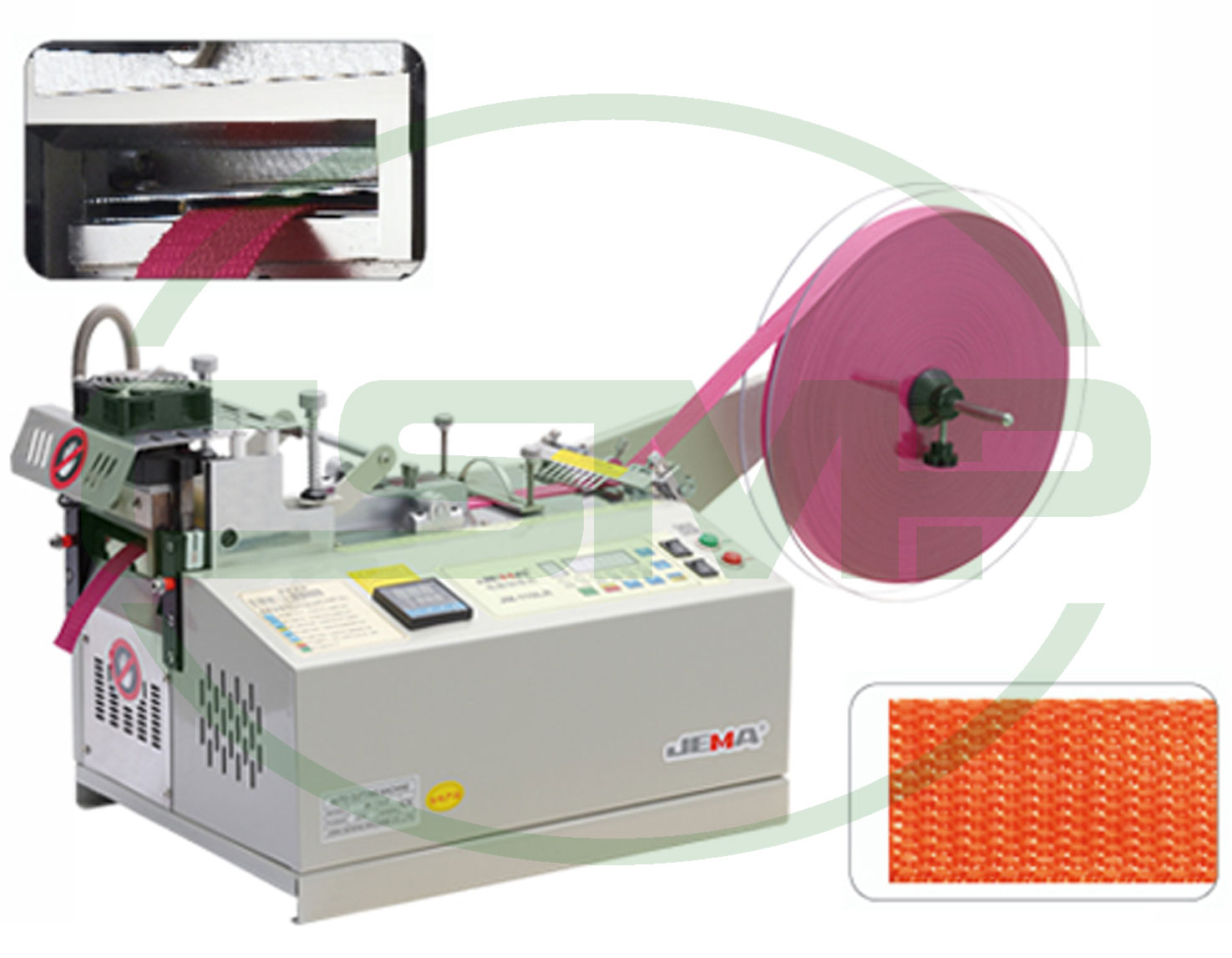

JEMA JM-110LR
Economic Hot and Cold Belt Loop Cutter
**12 Month Return to Base Warranty - Click Here for Details**
Automatically and neatly cut, easy operation.
Application
Woven Tapes, Strip Tapes, Bag Band, etc. But no pure cotton materials.
Quality affordable completely improve efficiency
Only the computer program set, can operate automatically, without manual guarding, save labor cost, simple operation, compared with the traditional manual operation, completely improve work efficiency.

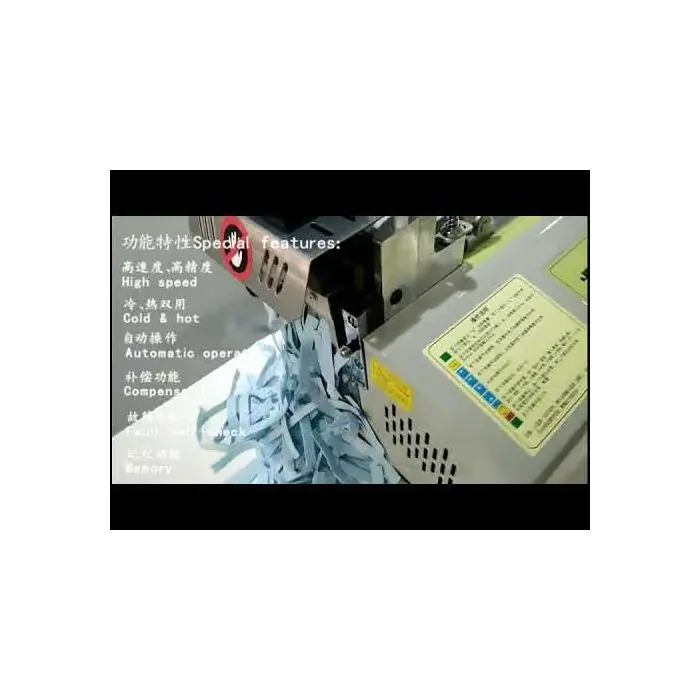

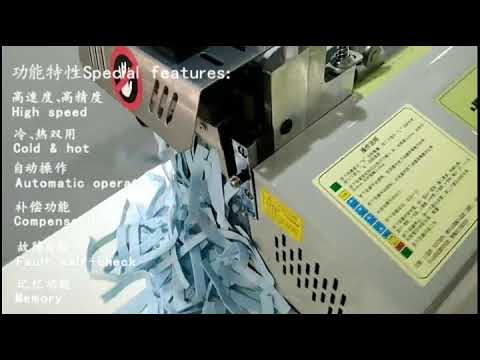

Special features
- High speed: It can cut 70-90 pcs per minute. (50mm long)
- Accuracy: Cut-length is accurate cwing to a stepping motor.
- Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
- Automatic operation: It works automatically only by setting length and quantity.
- Automatic stopper: It stops automatically if materials run out during operation.
Technical Specification
Model | JM-110LR |
Cutting Length (mm) | 20-9999 |
Max. Cutting Width (mm) | 95 |
Cutting Speed (p/min) | 90 |
Max. Blade Temp | 300 |
Voltage (V) | 110/220 |
Frequency (Hz) | 50/60 |
Power (kw) | 0.66 |
Package Size LxWxH (mm) | 560x420x405 |
Weight (kg) | 24/29 |
More Information
Part No | JM110LR |
---|---|
Weight (KG) | 23.000000 |
Manufacturer | Jema |
