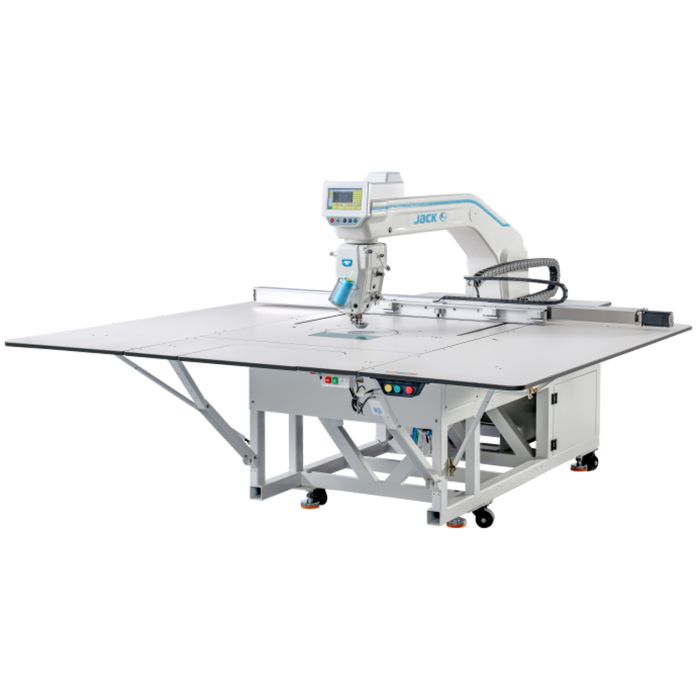

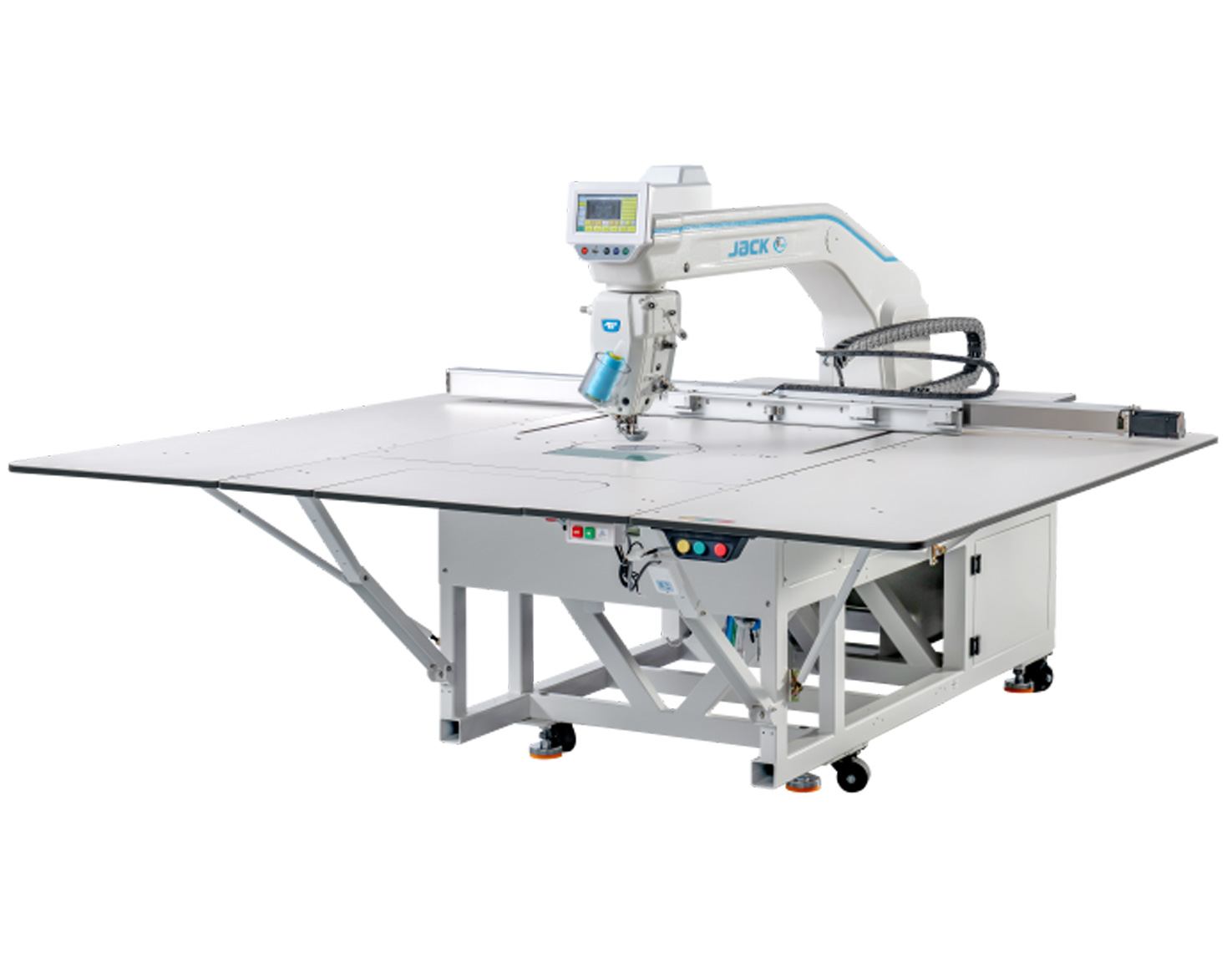

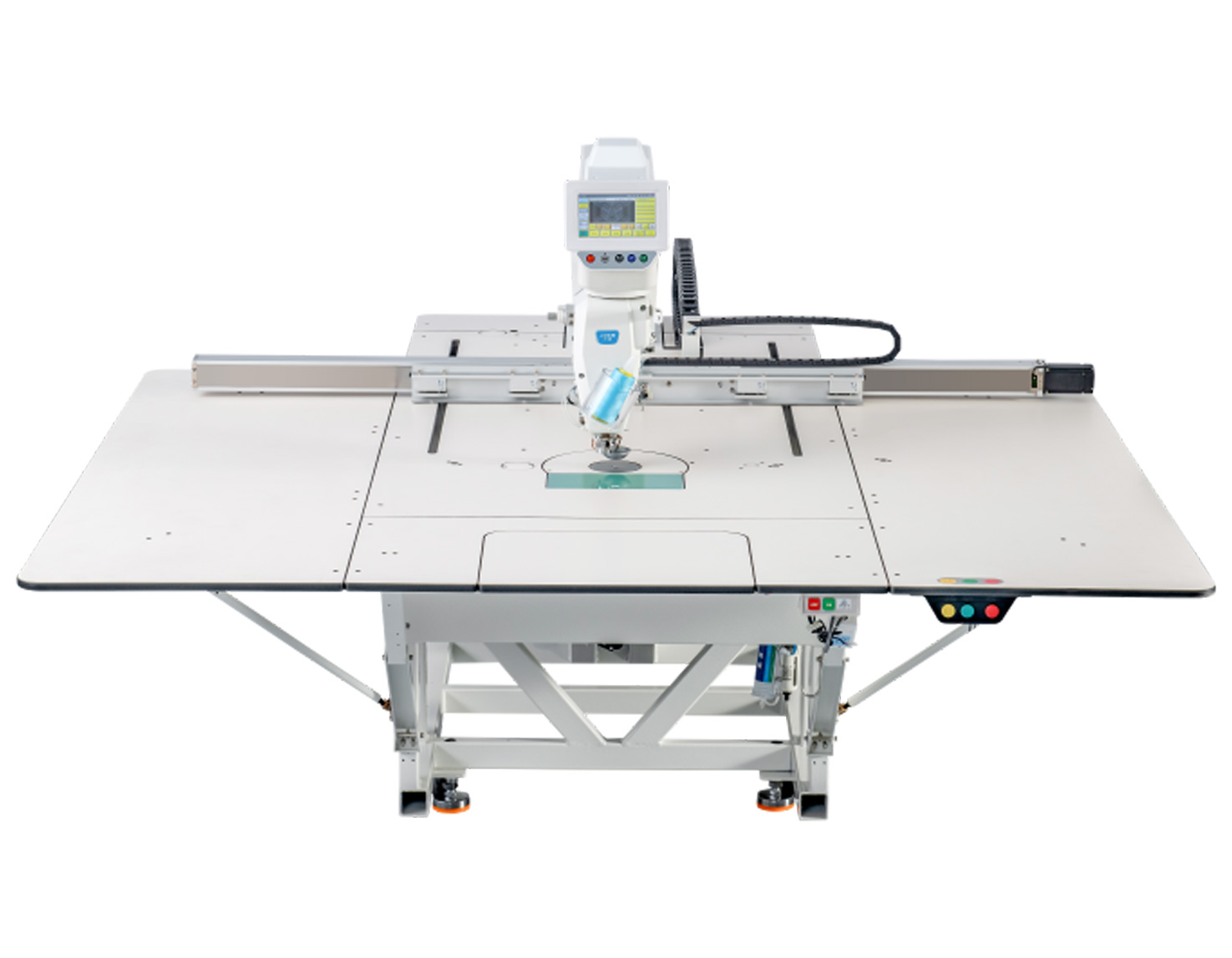

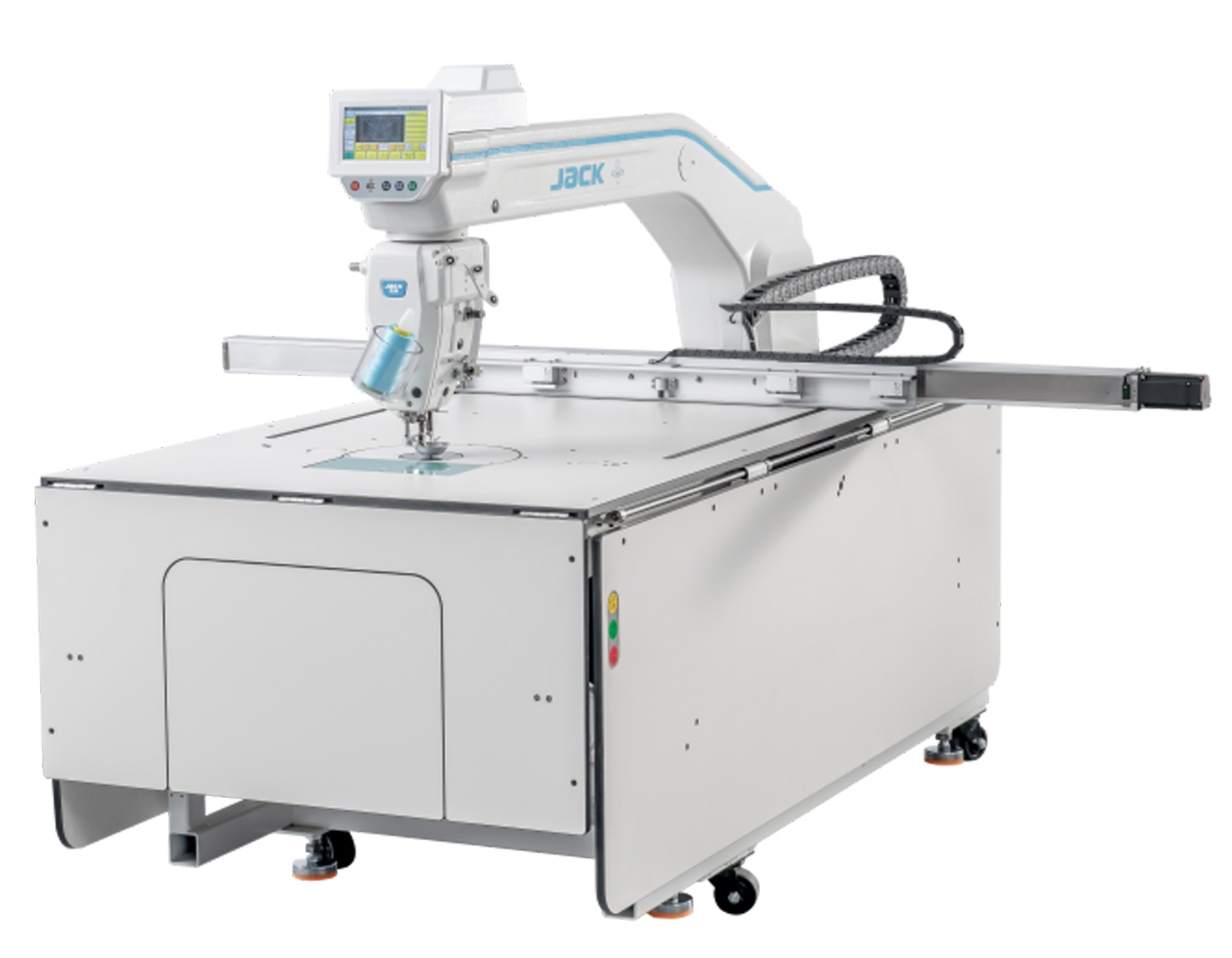

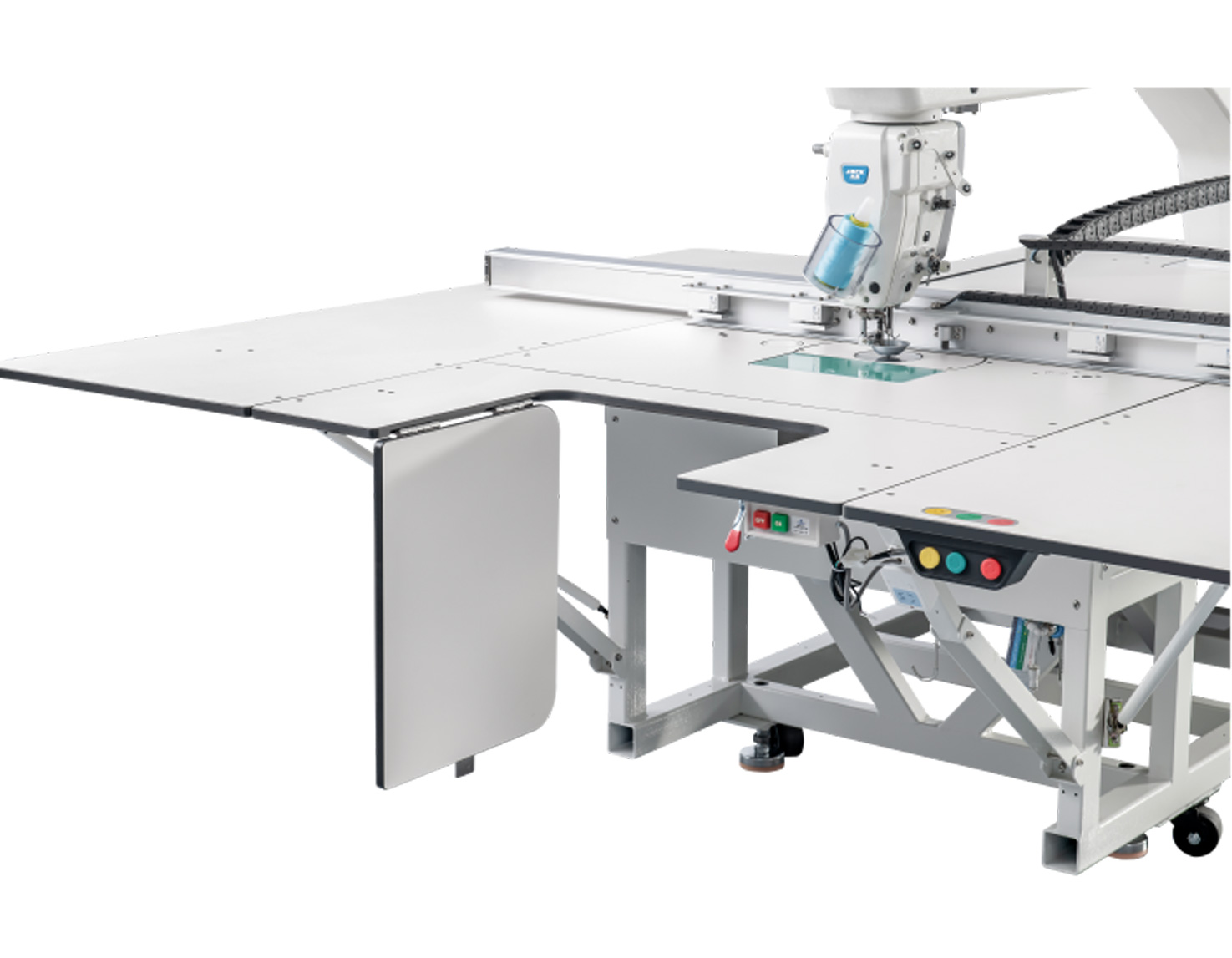

JACK M9-SS-F13-X 1400 X 950 MM PATTERN SEWING MACHINE
Part No
JACKM9SSF13X
Jack M9-SS-F13-X
1400x950mm Pattern Sewing Machine
Equipped
with
spirit
spider thread
control
system
Pricing and Availability on Request
Description / JACK M9-SS-F13-X 1400 X 950 MM PATTERN SEWING MACHINE
Jack M9-SS-F13-X
1400x950mm Pattern Sewing Machine

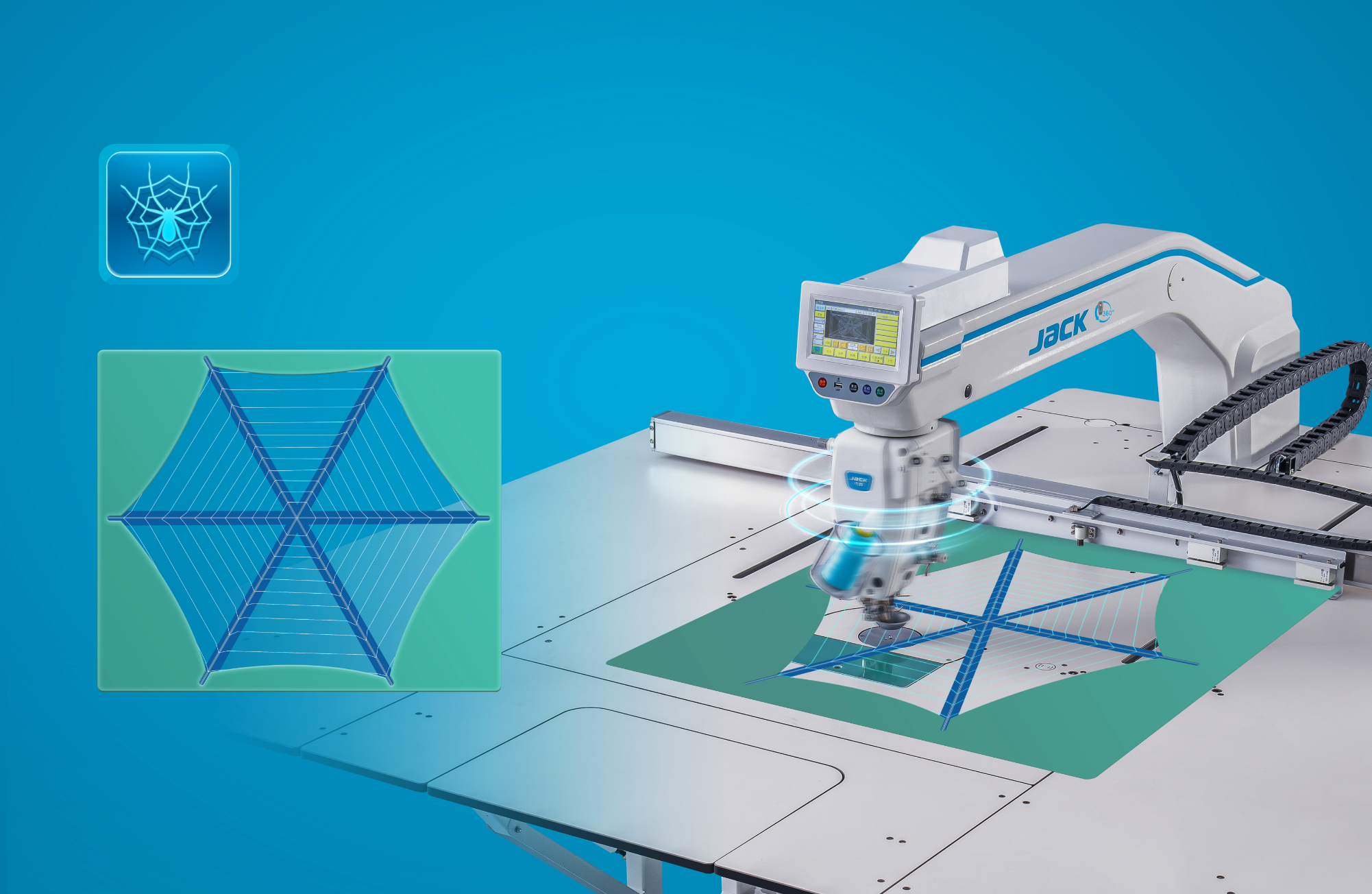

Equipped with spirit spider thread control system
The thread break is reduced by 80%, The sewing speed is increased by 20%
The efficiency is increased by 17%, Increased production by 38 pcs per day

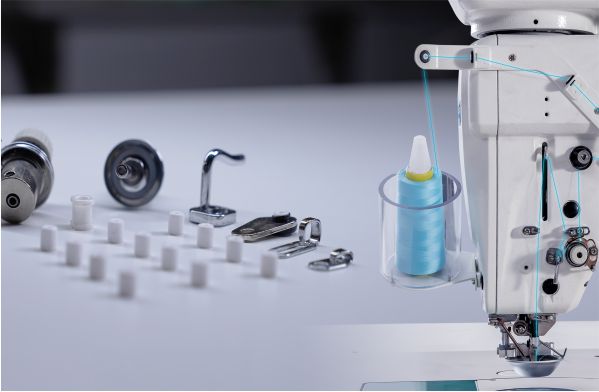

0 Thread Channels Technology
Nano materials coated thread passing parts, reduce friction by 70%, abrasion resistance increased by 170 times
30 million needles real machine test, historical sales data of 50,000 units, optimal thread channels design
0 Second Synchronization Algorithm
Algorithm supports 208 alignment calculations per stitch, the machine head adopts the lightweight design of aviation aluminum, the synchronisation accuracy is increased by 20%, Apply self-concentric frame, to make the torsion deviation being less than 0.04 mm
Technical Specifications
| Model | Jack M9-SS-F13-X |
|---|---|
| Purpose | Quilting and pattern sewing |
| Needle | DPx5 DPx17 |
| No. of Needles | 1 |
| No. of Threads | 2 |
| Sewing Area | 1400 x 900 mm |
| Middle Presser Foot Walking Distance | 15mm |
| Needle Gauge | 0.05-20mm |
| Max Speed | 3600 r.p.m |
| Volume | 2200 x 1220 x 1650 mm |
| Weight | 610kg / 690kg |
More Information
| Part No | JACKM9SSF13X |
|---|---|
| Weight (KG) | 74.000000 |
| Manufacturer | Jack |
