JACK JK-T783G-Z BUTTON HOLE MACHINE 40MM FOOT DIRECT DRIVE
Description / JACK JK-T783G-Z BUTTON HOLE MACHINE 40MM FOOT DIRECT DRIVE

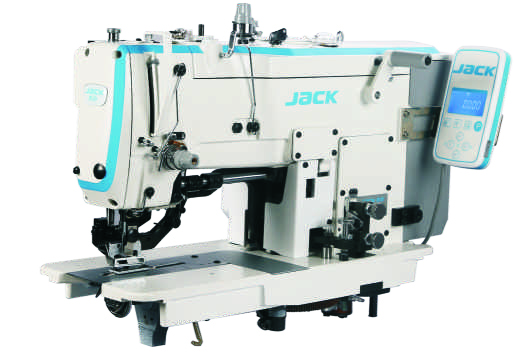

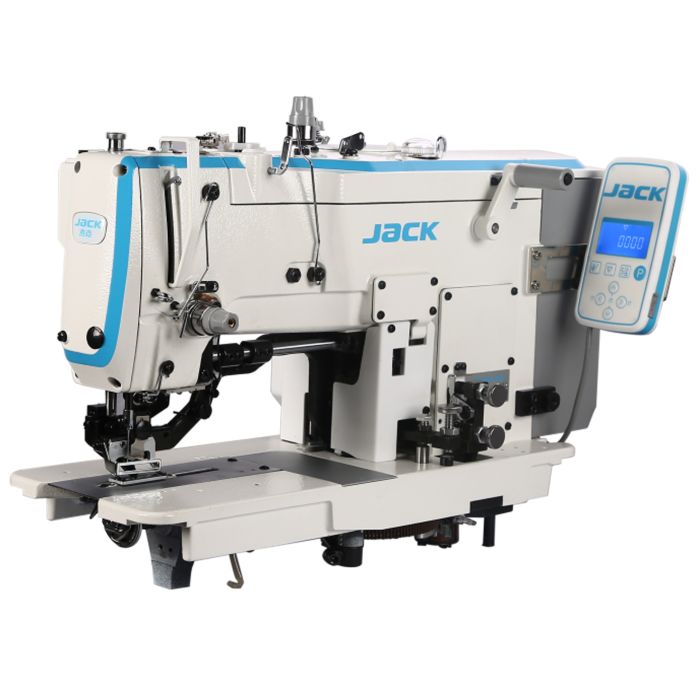

Jack JK-T783G-Z
Integrated Electronic Lockstitch Buttonholiding Machine
Mechanical Buttonhole machine driven by an integrated single shaft motor has low vibration, low noise, high efficiency and excellent sewing quality. Automatic thread trimmer and foot lifter controlled by a stepper motor to improve efficiency and reduce labor. New panel with automatic piece counter function. Suitable for sewing buttonholes on various fabrics, shirts, overalls, T-shirts.
Mechatronics,easy To Install
Driven by servo motor, it has low vibration, low noise, high efficiency production performance and excellent sewing quality

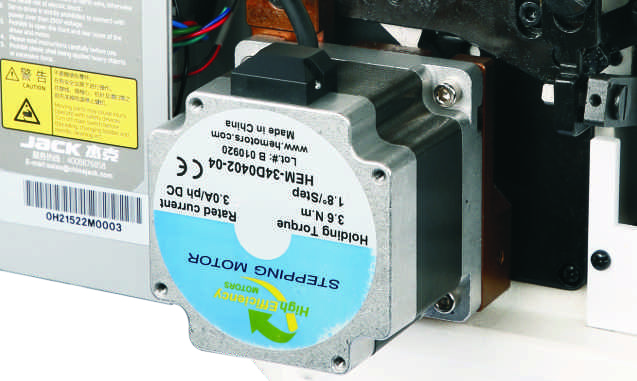

Auto Lifting And Trimming, Energy Saving And Efficient
With automatic presser foot lifting and automatic thread trimming functions, improve work efficiency and reduce labor intensity

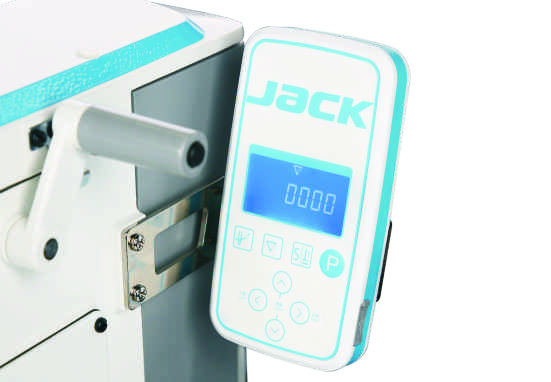

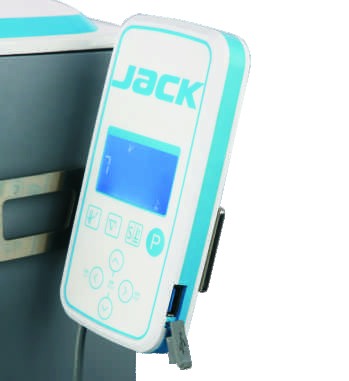

Dot Panel, easy Operation
With patterns and parameter display functions, no need to consult the manual, easy to operate, you can freely set the number of soft start needles, dynamically observe and adjust the machine running speed, and the operation is easier
Wide Range Of Applications, Beautiful Stitches
JK-781GK is equipped with a special knitting dedicated presser foot, a small needle plate and a feeding plate. For high-elestic fabics it also can hold down and sew beautiful stitches. This machine more suituable for knitting material with lower thread breakage rate

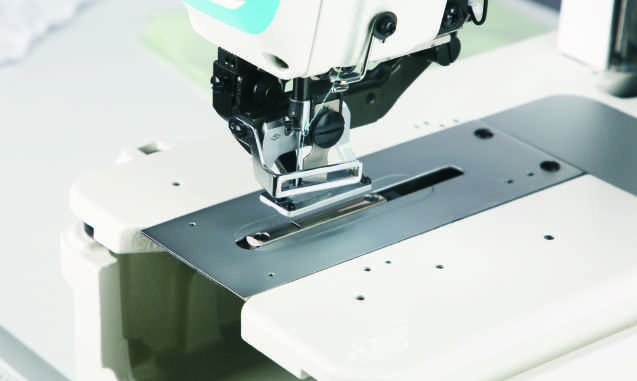

Short Thread Remaining, No Need Thread Timmer Again
Thin woven material equipped with short thread remainning presser foot, a needle plate and feeding plate, by changing the thinkness of the small needle plate to keep the remain thread within 3mm. Then the factory can reduce the cost of thread cutting workers; reduce enterprise costs and increase profitability
Bottom Thread Detection
When the bobbin thread margin is insufficient (after sewing the current buttonhole), stop in time
Automatic Counting Function
It can automatically record the number of keyholes for easy counting and quick verification.
Technical Specification
| Model | Jack JK-T783G-Z |
|---|---|
| Functions | Woven Materials |
| Button Hole Size (mm) | 40x5 |
| Needle | DPx5 #12 |
| No. of Needles | 1 |
| Side Cutter Function | 1/4"~1-1/4" |
| No. of Threads | 2 |
| Parallel Interspace (mm) | 0.2-205 |
| Automated Thread Trimmer | Yes |
| Auto Presser Foot Lifter | Yes |
| Presser Foot Lifter Height (mm) | 12 |
| Max. Speed (s.p.m) | 3600 |
| Volume (mm) | 730x365x695 |
| Weight (kg) | 46/66 |
More Information
| Part No | JACKJKT783GZ |
|---|---|
| Weight (KG) | 94.000000 |
| Manufacturer | Jack |
