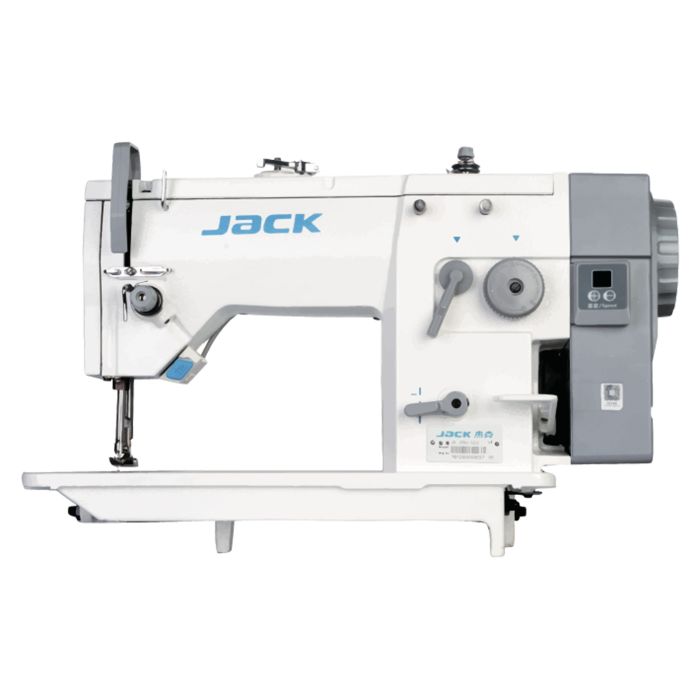

JACK JK-20U-53Z ZIG ZAG DIRECT DRIVE MACHINE
Description / JACK JK-20U-53Z ZIG ZAG DIRECT DRIVE MACHINE
Jack JK-20U-53Z
Short Arm Zig-Zag Machine
Short arm Zig-Zag machine suitable for sewing and embroidering. Zig-zag adjustable in different widths up to 9 mm ideal on medium-light fabrics. Double use of the knee-lift that can be used to raise the presser foot or to embroider.
Add Stitch Button
In addition to activating the LED light, we have added an electronic button near the needle bar to add stitches with precision even in the most difficult jobs.
Direct Drive Motor
Built-in 550W direct drive motor for efficient energy saving. Integrated panel for maximum speed and needle positioning.
Zig-Zag Width
The width of the zig-zag can reach 9mm and can be controlled by a convenient lever, or by the knee-lift.
Self Lubrication
Automatic oil supply for better lubrication.
Needle Position
The needle can be moved to 3 positions (central, right and left) thanks to a handy slider: this allows you to sew even in the presence of hinges.
Technical Specifications
| Model | Jack JK-20U-53Z |
|---|---|
| Application | Basic Model |
| Zig Zag Width | 9mm |
| Threads | 2 |
| Motor | 550W |
| Max Speed | 2000 rpm |
| Dimensions | 65x25x35mm |
| Needle System | 134R |
More Information
| Part No | JACKJK20U53Z |
|---|---|
| Weight (KG) | 56.000000 |
| Manufacturer | Jack |
