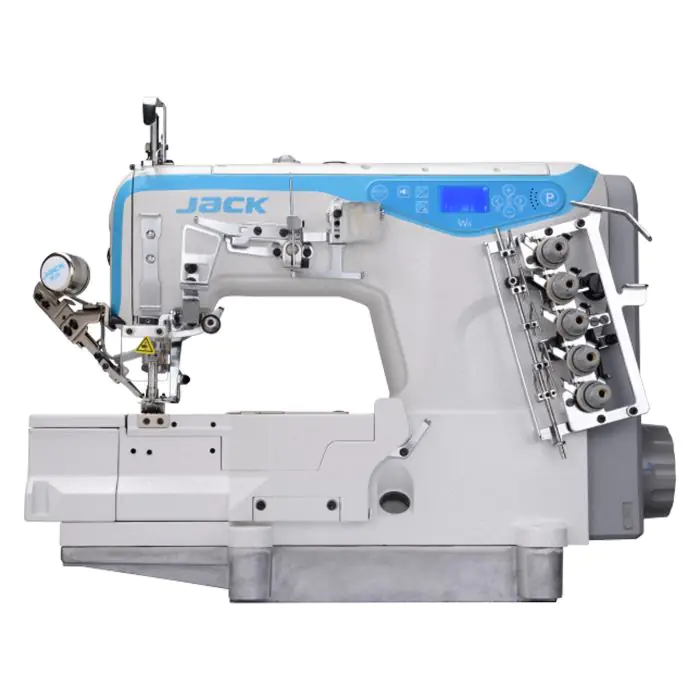

JACK W4-D-05CB ELASTIC LACE ATTACH WITH R/H KNIFE
Part No
JACKW4D05CB
Jack W4-D-05CB
Direct Drive Elastic Tape Attaching Machine, with Right-Side Cutter
For Light And Heavy Duty
Pricing and Availability on Request
Description / JACK W4-D-05CB ELASTIC LACE ATTACH WITH R/H KNIFE
Jack W4-D-05CB
Direct Drive Elastic Tape Attaching Machine, with Right-Side Cutter
For Light And Heavy Duty
Expand sewing range, suitable for various fabrics.
Voice Guide
Using the machine it will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, moreover with a single key you can return to the initial settings. (Only on -UT)
Multifunction
Normal sewing, tape binding and bottom hem sewing.
Integrated Design
Mechanical and electronics come together in a clean design without wiring but integrated.
Technical Specifications
| Model | Jack W4-D-05CB |
|---|---|
| Function | Elastic Lace Attaching (Right-Side Cutter) |
| Needle | UY128GAS 11-14# |
| Number of Needles | 3 |
| Number of Threads | 5 |
| Stitch Width (mm) | 1.5-4.55 |
| Stitch Length | 5.6/6.4 |
| Differential Ratio | 0.65-1.3 |
| Presser Foot Lifting Height (mm) | 7 |
| Max Speed (s.p.m) | 5500 |
| Volume (mm) | 670x445x595 |
| Weight (kg) | 48/58 |
More Information
| Part No | JACKW4D05CB |
|---|---|
| Weight (KG) | 84.000000 |
| Manufacturer | Jack |
