JACK JK-T2210 220MM X 100MM PROGRAMABLE PATTERN SEWING MACHINE COMPLETE
Description / JACK JK-T2210 220MM X 100MM PROGRAMABLE PATTERN SEWING MACHINE COMPLETE

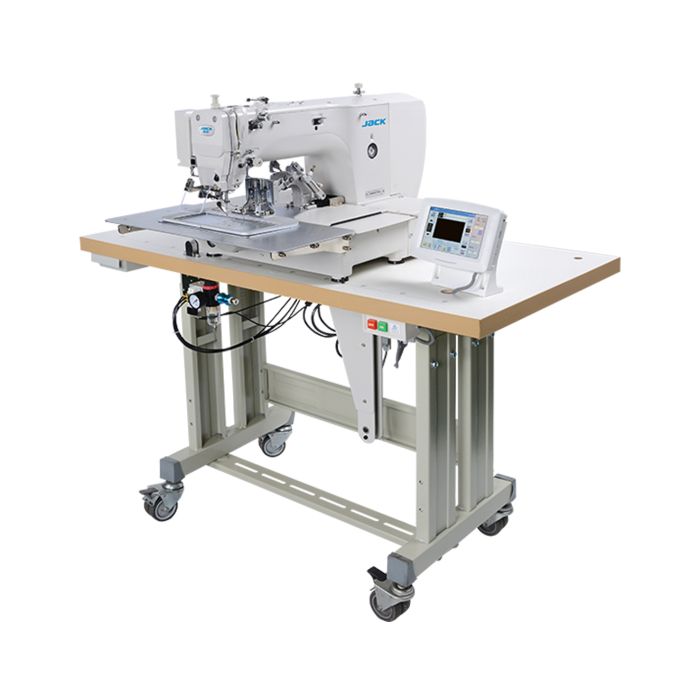

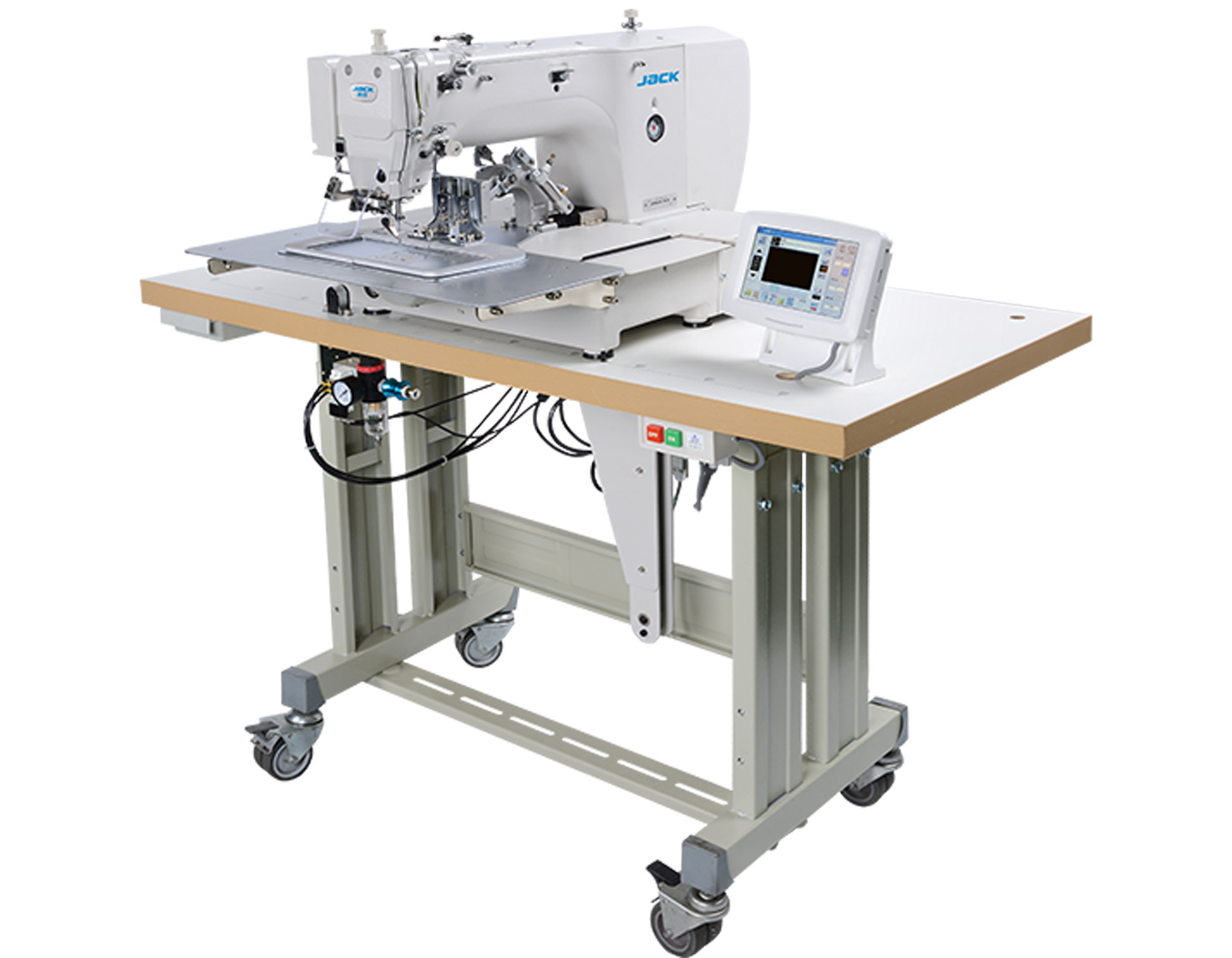

Jack JK-T2210
Automatic Pattern Sewing Machine - Sewing Area 220mm X 100mm
The machine is used for multiple sewing a repeatable pattern, such as sewing on labels, fastenings or decorative stitching. Equipped with a servo motor built into the machine head (direct drive system) and step motors – servo motor and a new solution of the transport mechanism, increase the quality of sewn patterns, smoother machine work, high accuracy and shorten the start and finish time of the sewing process.

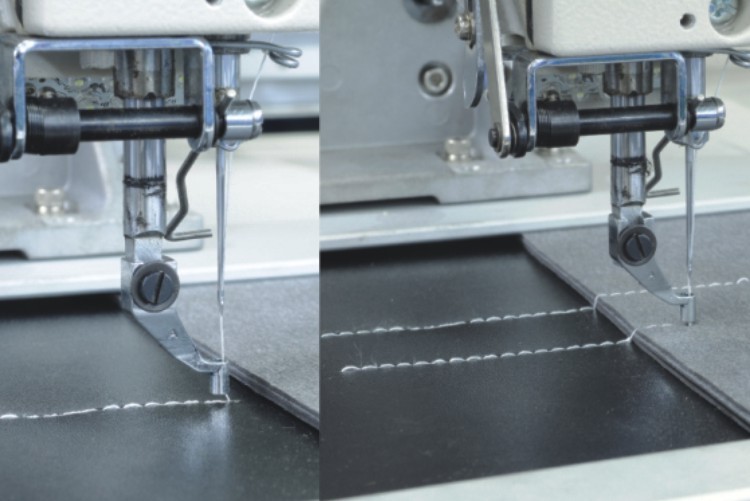

Intelligent Mid Presser Foot
The foot lift can be changed to any height, in order to avoid skipped stitches, thread breakage and damage to fabrics

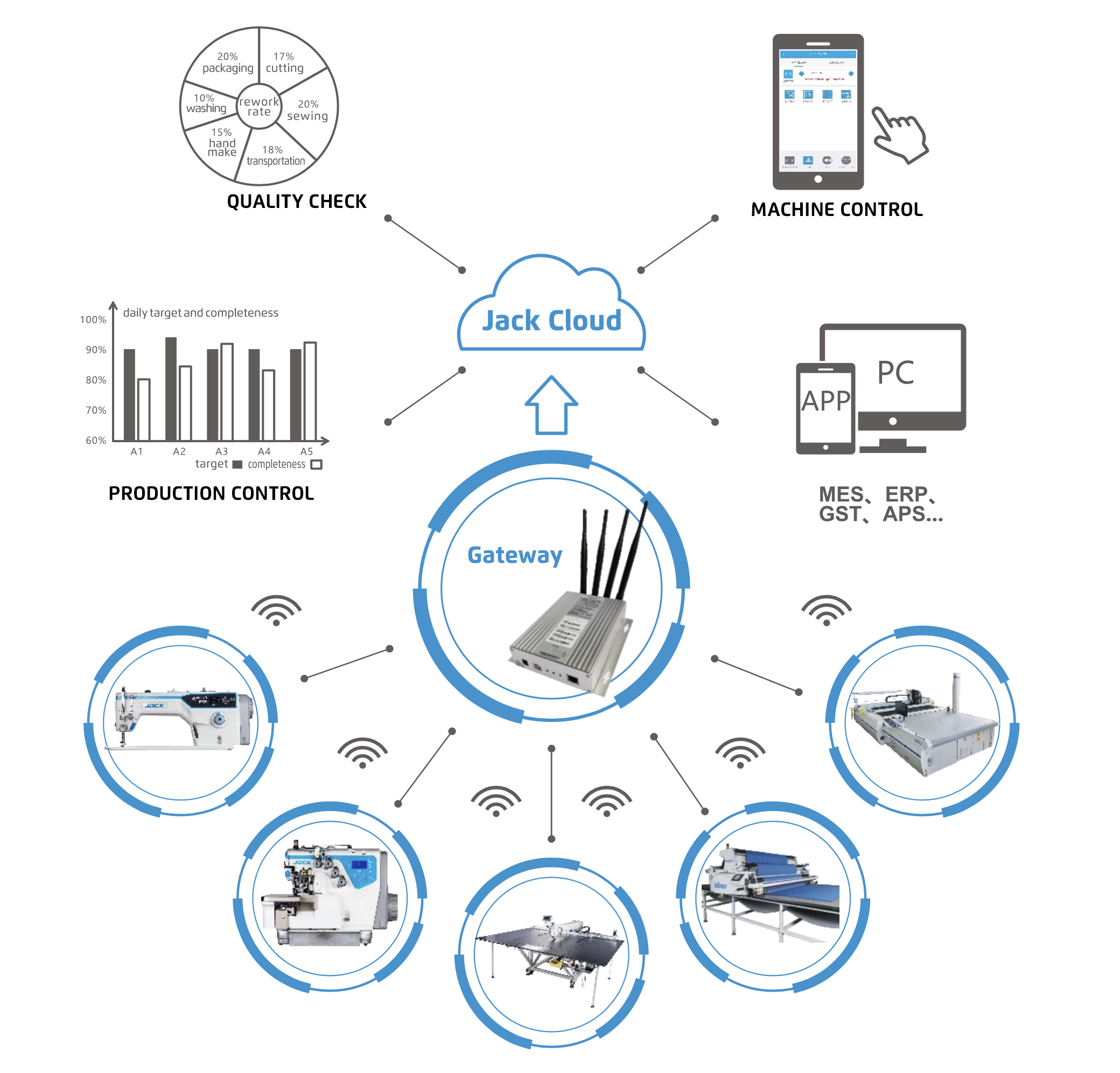

Industry 4.0 (Optional)
Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines
Technical Specifications
Model | Jack JK-T2210 |
---|---|
Needle | DPx17 11-25# |
Sewing area (mm) | 22x100 |
Presser foot lift (mm) | 22 |
Max Speed (S.p.m) | 2700 |
Volume (mm) | 1200x840x1320 |
Weight (kg) | 136/186 |
More Information
Part No | JACKJKT2210 |
---|---|
Weight (KG) | 32.000000 |
Manufacturer | Jack |
