JACK JK-T1906GP-D ELASTIC WASTE BAND BARTACK MACHINE
Description / JACK JK-T1906GP-D ELASTIC WASTE BAND BARTACK MACHINE

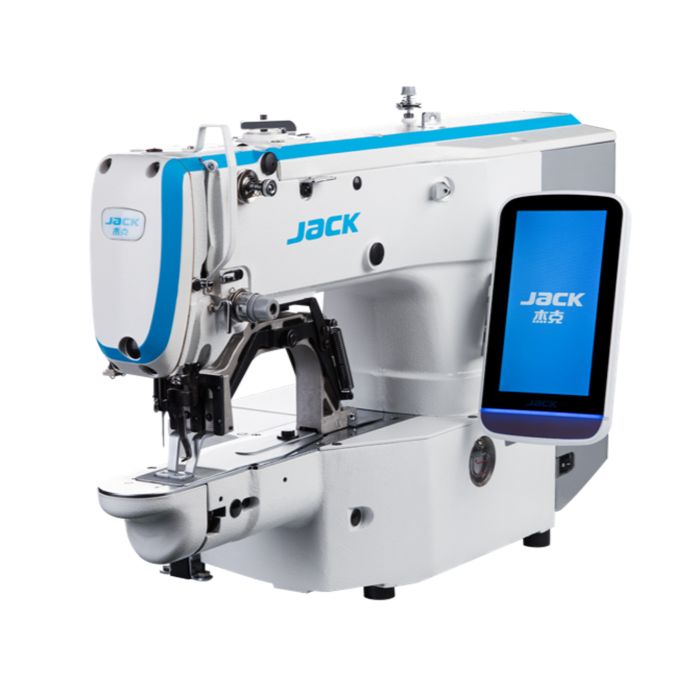

Jack JK-T1906GP-D
Electronic Elastic Waistband Bartacking Machine
Electronic bartack / button sewer machine (Includes clamp change kit), one machine for 2 types of jobs and a wide range of functions. Easy and intuitive touch-screen panel, the panel shows the functions and drawings.
A Wide Range Of Applications

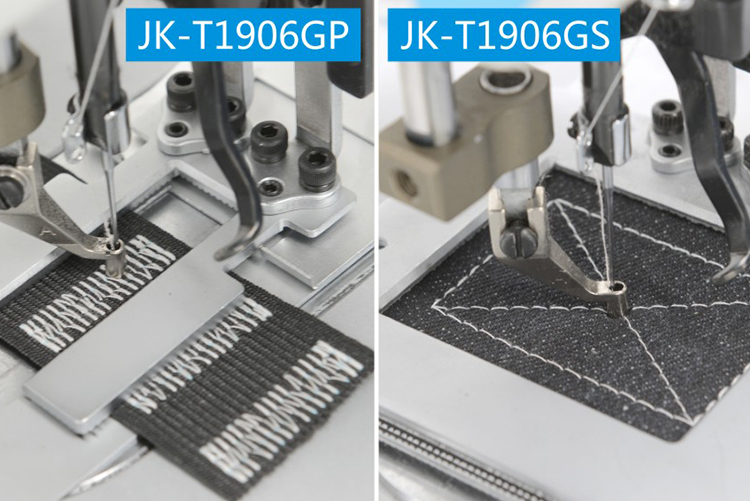

JK-T1906GP: The 60x50mm Pattern Field is suitable for stitching of elastic bands.
JK-T1906GS: for textile bags, shopping bags, velcro, shoes, decorative stitches.
Reinforced Seams
Reinforced sewing on high-strength products such as bags and fishing nets can be easily done.
High Efficiency
The speed of this machine reaches 3200 (r.p.m.), which results in a high production efficiency.
Touch Panel With Voice Guide
The operation panel simultaneously displays parameters and patterns through the LCD screen and helps you to learn the various functions as well as troubleshoot and errors via voice guidance.
Industry 4.0 (Optional)
Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines
Technical Specifications
| Model | Jack JK-T1906GP-D |
|---|---|
| Application | Elastic Attaching |
| Needle | DPx17 14# |
| No. of Needles | 1 |
| No. of Threads | 2 |
| X: Sewing Range (mm) | 60 |
| Y: Sewing Range (mm) | 50 |
| Presser Foot Lifting Height (mm) | 10 |
| Max Speed (S.p.m) | 2700 |
| Volume (mm) | 805x405x525 |
| Weight (kg) | 55/64 |
More Information
| Part No | JACKJKT1906GPD |
|---|---|
| Weight (KG) | 93.000000 |
| Manufacturer | Jack |
