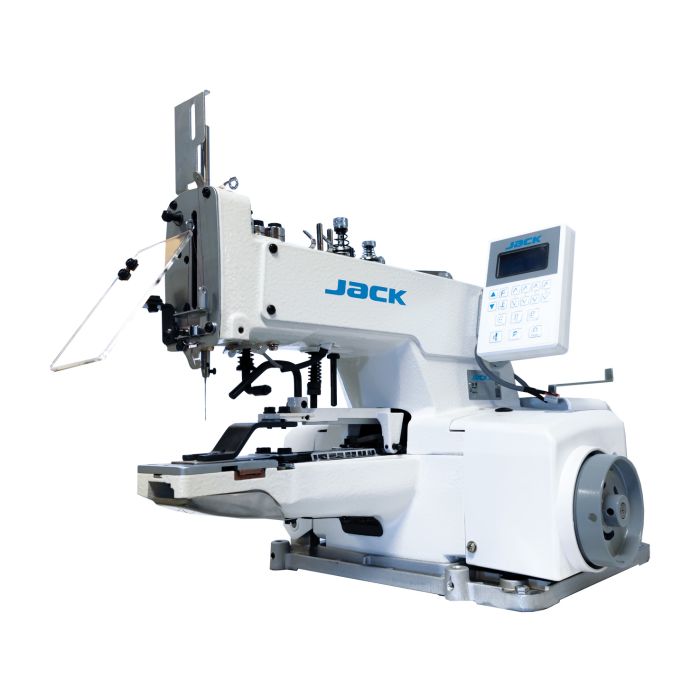

JACK JK-T1377E ELECTRONIC BUTTON SEWING MACHINE
Description / JACK JK-T1377E ELECTRONIC BUTTON SEWING MACHINE
Jack JK-T1377E
Single-thread, Chainstitch, Mechanical Button Sewing Machine
Jack Button sewing machine JK-T1377E with automatic thread trimming and presser foot lifting. Stitch shape (for buttons with 4 holes) can quickly be changed over between parallel or “cross”, without replacing the cams. We change the type of stitching using the lever located on the machine head. All sewing parameters can be easily programmed on a readable control panel located in the machine head.

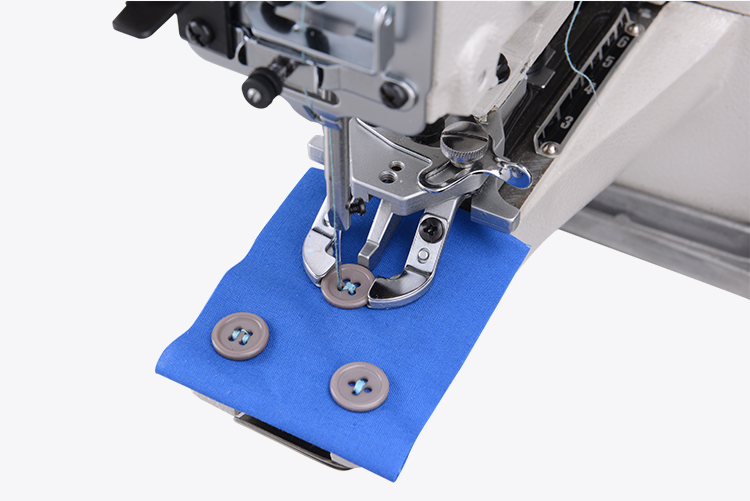

3 Sewing Types
One machine, three ways to attach a button, just turn the knob to change easily.

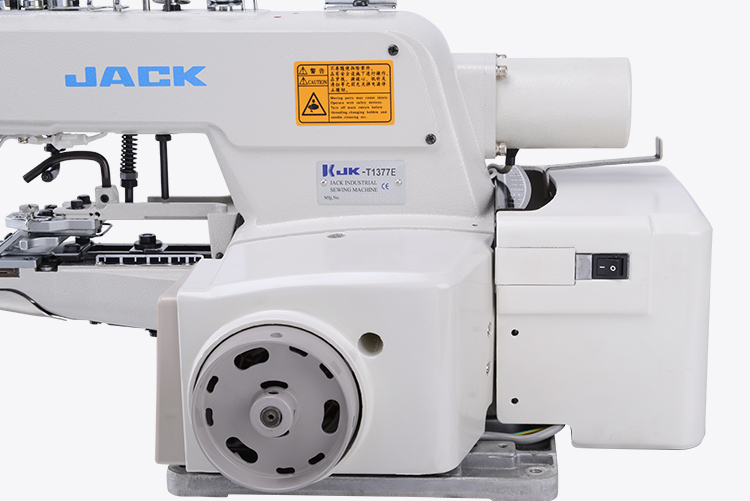

Direct Drive Eco Motor
Integrated motor and control box, 71% energy saving.
Intelligent Configuration
Automatic presser foot lifter and thread trimmer controlled by a magnet, less work and higher efficiency

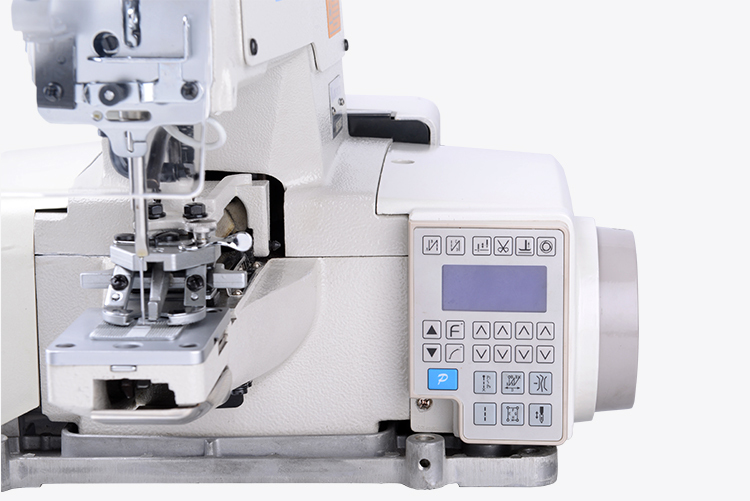

Easy To Use LCD Display
From the panel it is easy to choose the number of stitches, the presser foot pressure, and set various parameters.

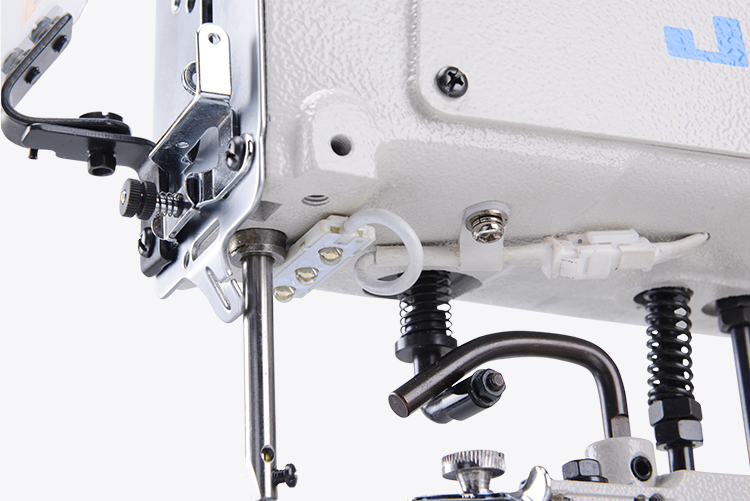

LED Light
More precise seams and less tired eyes.

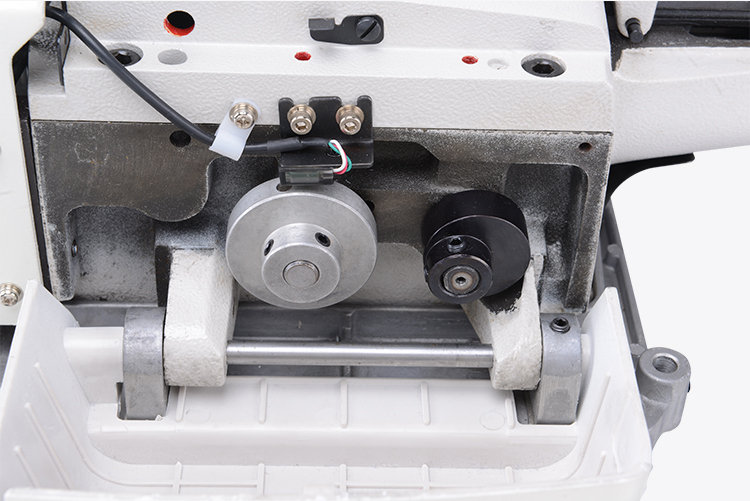

Eccentric Gear
Few vibrations increase the stability and the life of the machine
Technical Specifications
| Model | Jack JK-T1377E |
|---|---|
| Needle | TQx1 16# |
| No. of Needles | 1 |
| No. of Threads | 1 |
| Button Diameter (mm) | 10-28 |
| Button Hole Size (mm) | X: 2.5 ~ 6.5 Y: 0, 2.5 ~ 4.5 |
| Automatic Thread Trimming | Yes |
| Automatic Presser Foot Lifter | Yes |
| Integarted Direct Drive | Yes |
| Presser Foot Lifting Height (mm) | 9 |
| Max Speed (s.p.m) | 1500 |
| Volume (mm) | 625x465x440 |
| Weight (kg) | 28.6 / 34.5 |
More Information
| Part No | JACKJKT1377E |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Jack |
