JACK JK-2030GHC-4Q COMPLETE MACHINE WITH FOOT LIFTER
Description / JACK JK-2030GHC-4Q COMPLETE MACHINE WITH FOOT LIFTER

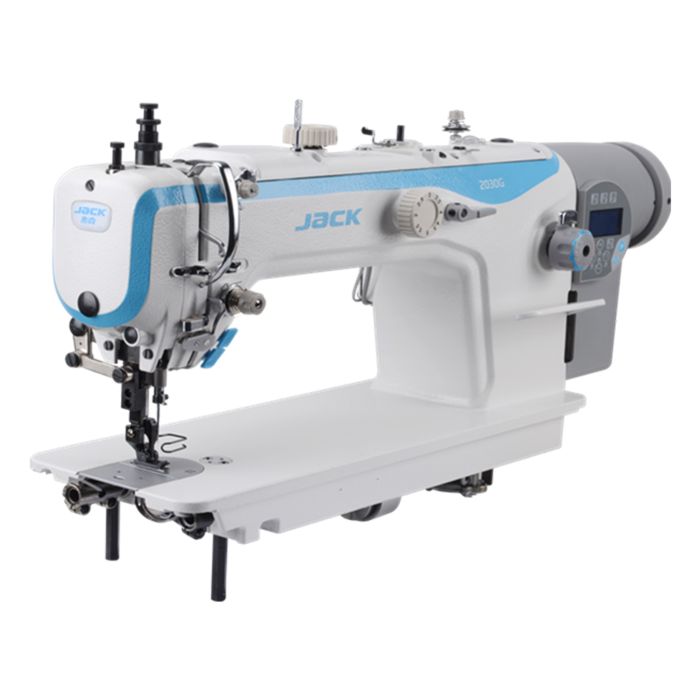

Jack JK-2030GHC-4Q
Top & Bottom Feeding Computerized Lockstitch
1-needle lockstitch machine designed for sewing thicker materials (eg leather, upholstery materials), equipped with an energy-saving motor built directly into the machine head (Direct Drive system). This solution guarantees quiet operation and low power consumption. The double transport (bottom teeth and upper – rolling foot) ensures perfect movement of the upper and lower layers of the sewn materials. The machine has a clear operating panel built into the head and LED illumination at the needle bar. Extended arm – the distance from the body to the needle bar is 33.5 cm.

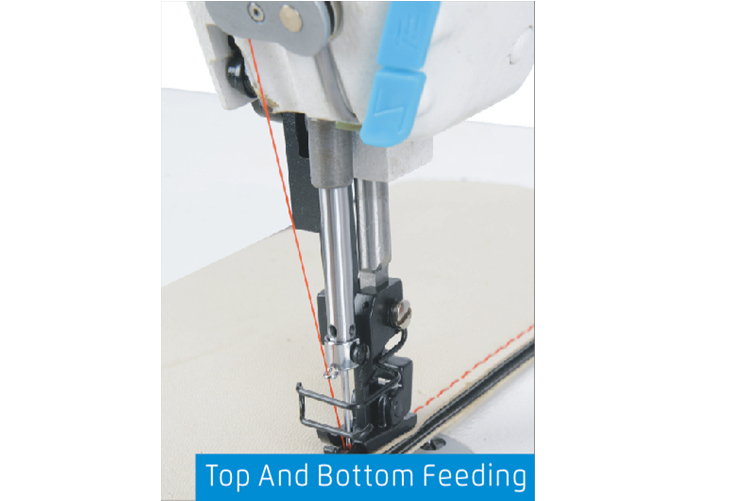

Top Feed
With this type of upper and lower feed, forget about the sliding of the material.

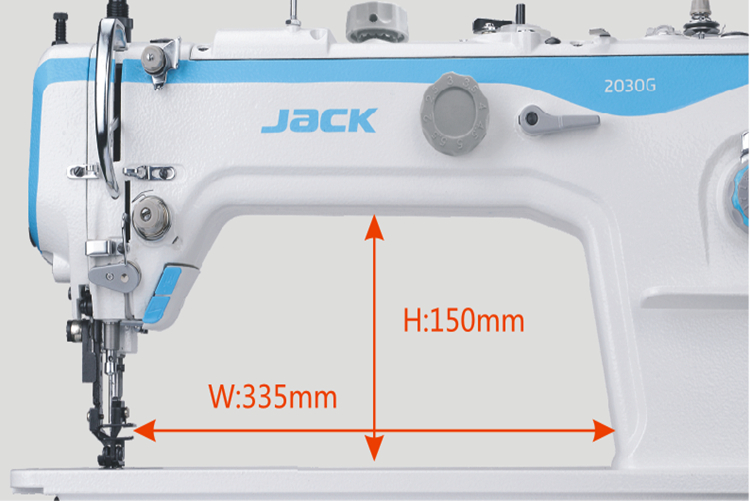

Big Operation Space
335MMX150MM, 75mm wider and 20mm higher than normal, Wide range of applications
All The Power You Need

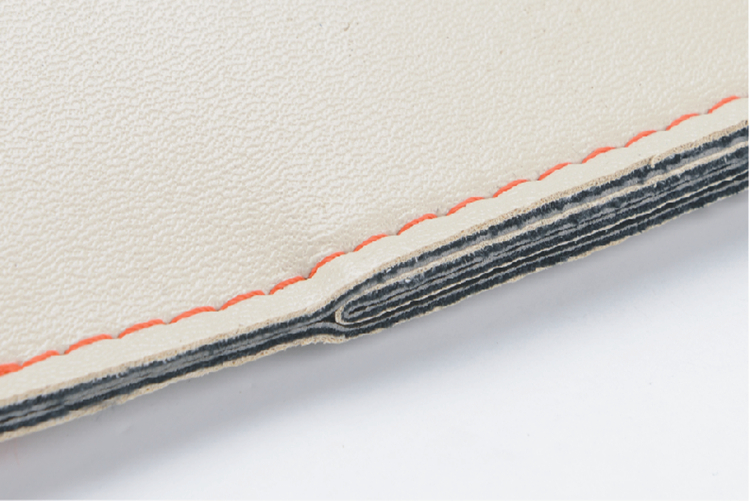

750W servo motor, strong needle perforation, 8 layers of leather can be sewn easily;
Easy To Learn, Easy To Use
Easy to adjust the inner and outer foot, suitable for various thick fabrics with beautiful stitches.
Technical Specifications
| Model | Jack JK-2030GHC-4Q |
|---|---|
| Application | Sofa, Car Seatr, Luggage, Shoes |
| Needle | DPx17 20-23# |
| Threads | 2 |
| Two Presser Foot Working Distance (mm) | 2.5-5.5 |
| Presser Foot Lifting Height (mm)/th> | 8/16 |
| Max Sewing Speed (S.P.M) | 2200 |
| Automatic Thread Trimming | Yes |
| Auto Reverse | Yes |
| Electronic Thread Tension | Yes |
| Integrated Drive Drive | Yes |
| Auto Presser Foot Lifter | Yes |
| Volume (mm) | 785x320x605 |
| Weight (KG) | 43/53 |
More Information
| Part No | JACKJK2030GHC4QC |
|---|---|
| Weight (KG) | 81.000000 |
| Manufacturer | Jack |
