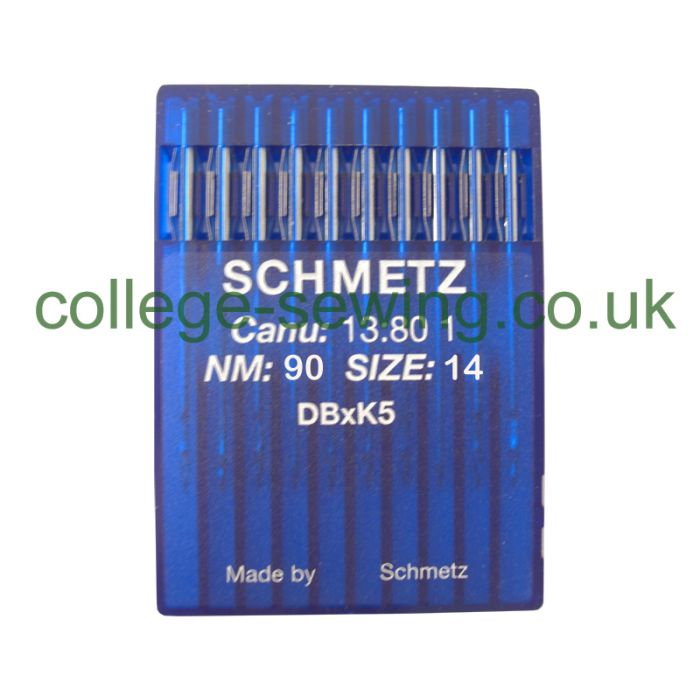

DBXK5 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Description / DBXK5 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 13:80 1 - DBXK5 - NM 90 / Size 14 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.

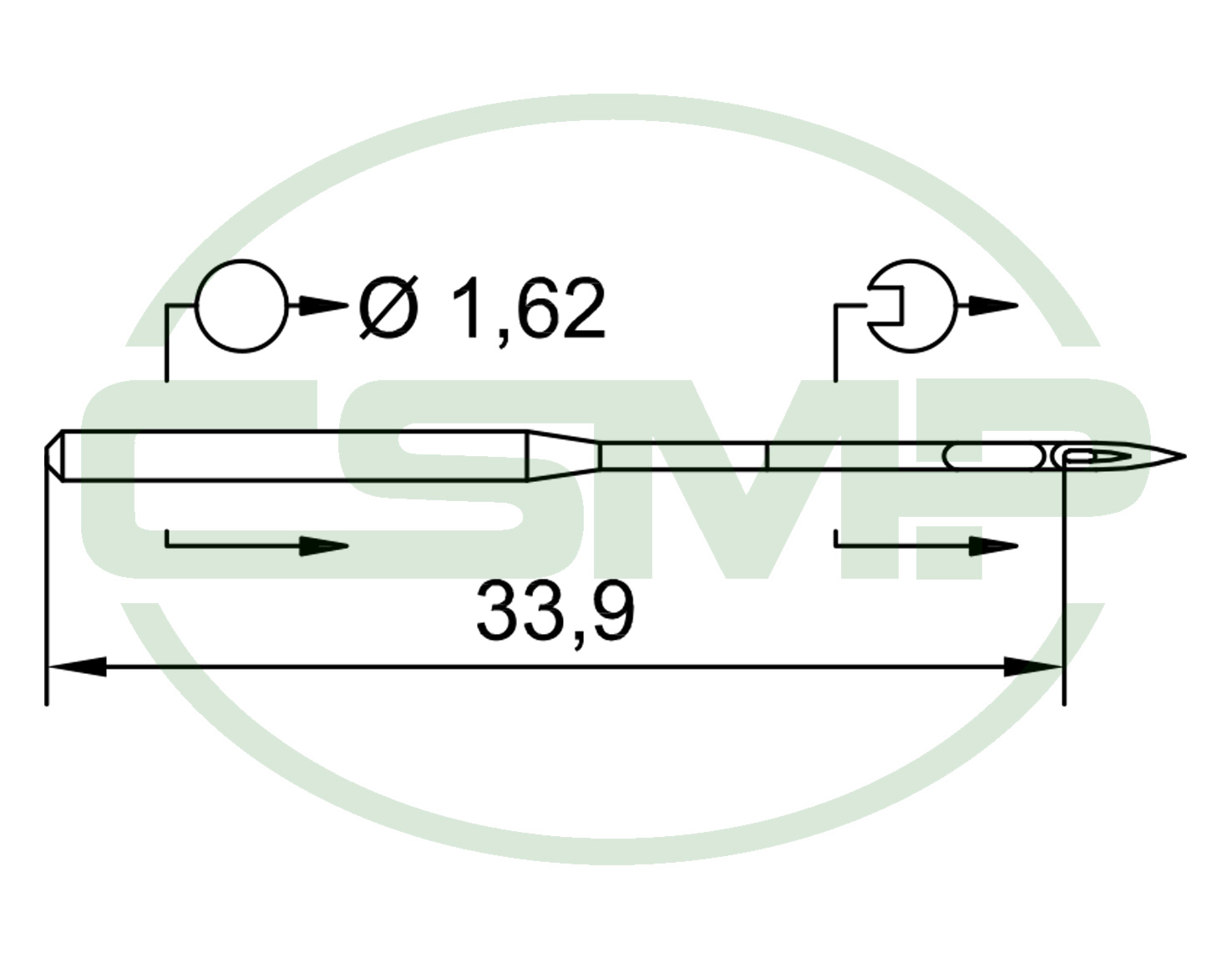

Needle Specification
Customary Needle Designations | DBXK5 |
---|---|
CANU | 13:80 1 |
NM / Size | NM: 90 / Size: 14 |
Point Style | STANDARD (Normal round point) |
Type of Coating | Chrome |
Shank-ø | 1.62 mm |
Overall Length | 37.7 mm |
Length to Eye | 33.9 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | DBXK5X90 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 90 / Size 14 |
