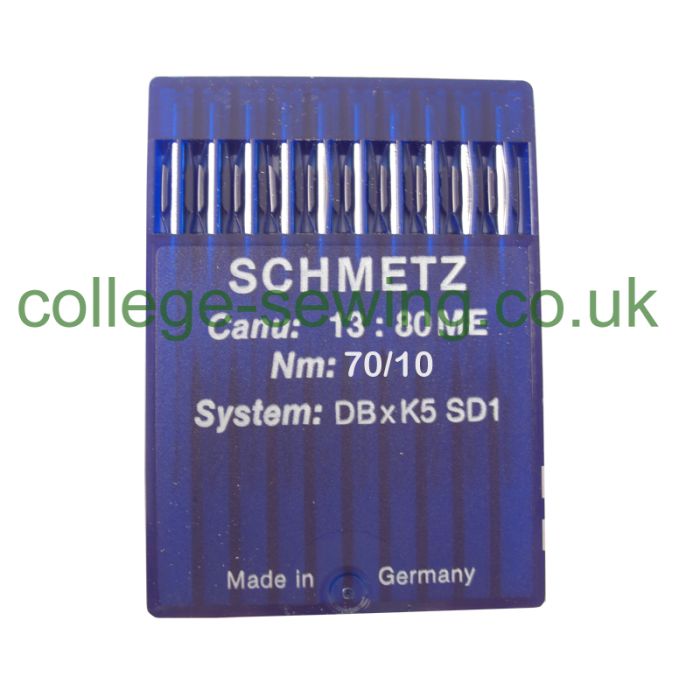

DBXK5 SD1 SIZE 70 PACK OF 10 NEEDLES SCHMETZ
Part No
DBXK5SD1X70
Schmetz 13:80ME1 - DBXK5 SD1 - NM 70 / Size 10 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
£4.58
Ex. VAT
Only 9 Left In Stock!
Description / DBXK5 SD1 SIZE 70 PACK OF 10 NEEDLES SCHMETZ
Schmetz 13:80ME1 - DBXK5 SD1 - NM 70 / Size 10 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.

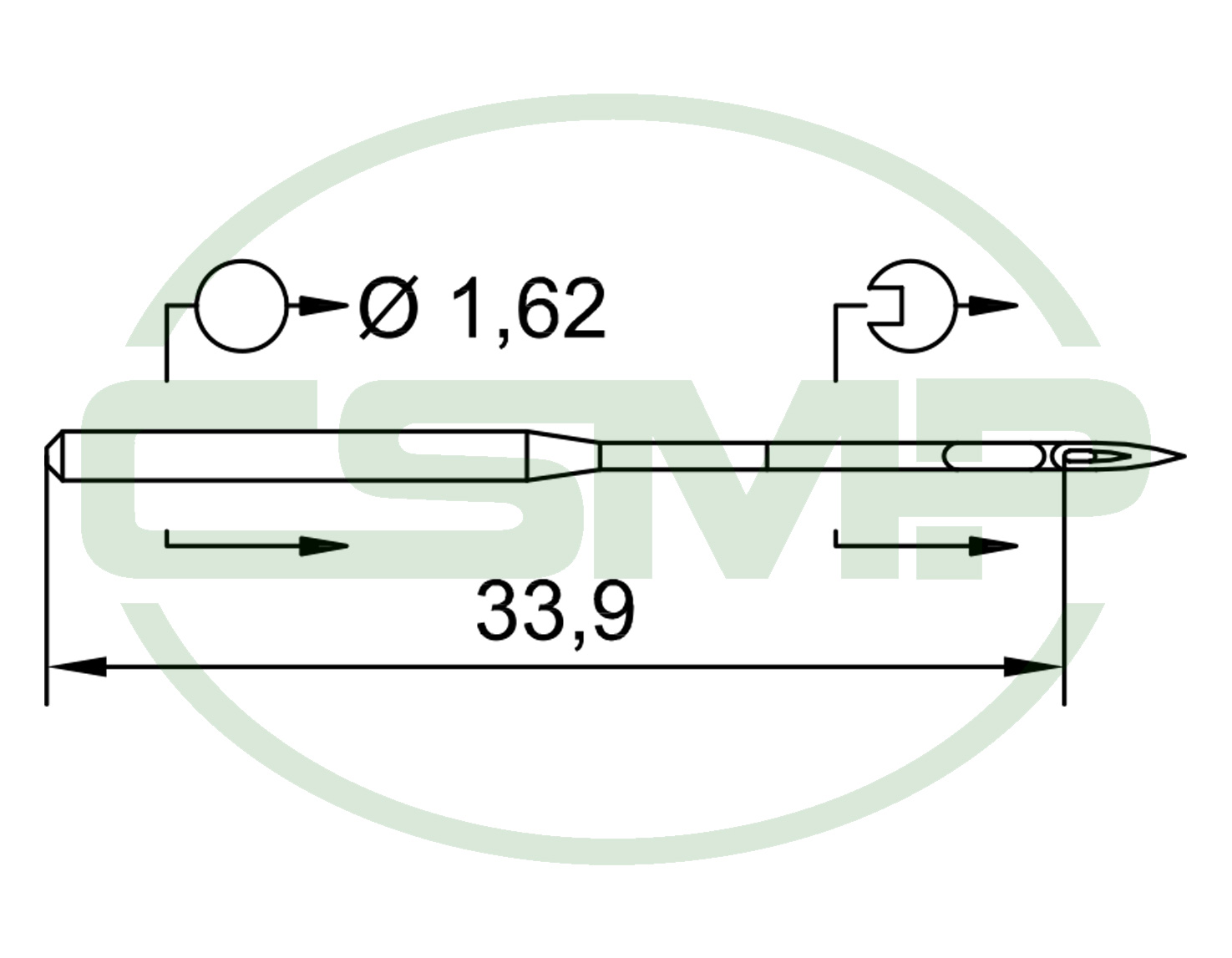

Needle Specification
| Customary Needle Designations | DBXK5 SD1 |
|---|---|
| CANU | 13:80ME1 |
| NM / Size | NM: 70 / Size: 10 |
| Point Style | SD1 (Round point with small triangular tip) |
| Type of Coating | Chrome |
| Shank-ø | 1.62 mm |
| Overall Length | 37.7 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | DBXK5SD1X70 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 70 / Size 10 |
