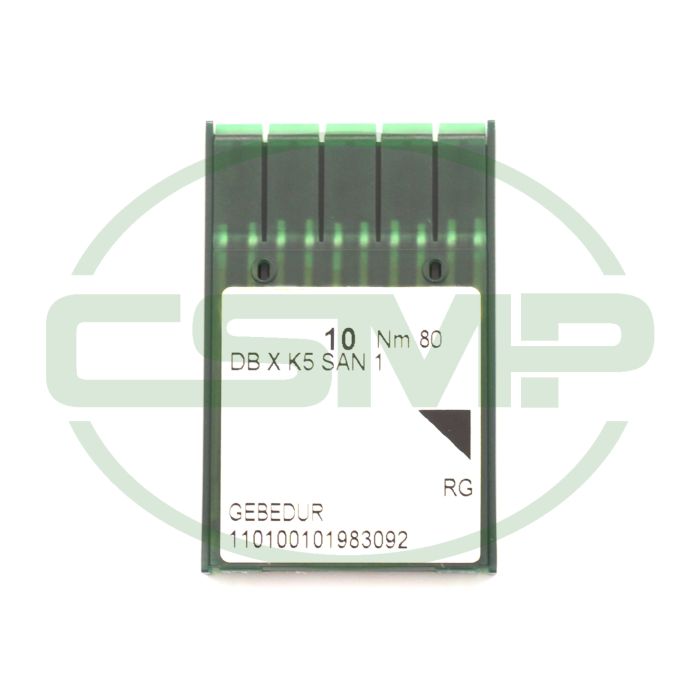

DBXK5 SAN1 GEBEDUR SIZE 80 GROZ BECKERT PACK OF 10 NEEDLES
Description / DBXK5 SAN1 GEBEDUR SIZE 80 GROZ BECKERT PACK OF 10 NEEDLES
Groz Beckert - DBXK5 SAN 1 GEBEDUR - NM 80 / Size 12 - RG (Normal round point with small ball) GEBEDUR™ Packet of 10 Needles.
RG (Normal round point with small ball)
- Slightly rounded shape of the point
- Suitable for knitted and woven fabrics and microfiber
- Standard point for chainstitch as well as single and multihead embroidery
- Perfectly suited for button sewing
SAN™ 1 for embroidering products made from sturdy materials
The SAN™ 1 version of needle DBxK5 is particularly suitable for embroidering products made of sturdy materials such as baseball caps or leather. The reinforced blade increases the stability of the needle and the special geometries of the scarf and eye improve the pick-up of the loop. In addition, the larger eye simplifies threading and allows the embroidery thread to slide through unhindered. The GEBEDUR™ coating increases the wear protection of the needle, especially in the point and eye area.
Groz Beckert GEBEDUR™ Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.
Needle Specification
Customary Needle Designations | 1738 KK, DB-N20, BLX1, 10:60 | |
---|---|---|
NM / Size | NM: 80 / Size: 12 | |
Type of Coating | GEBEDUR™ | |

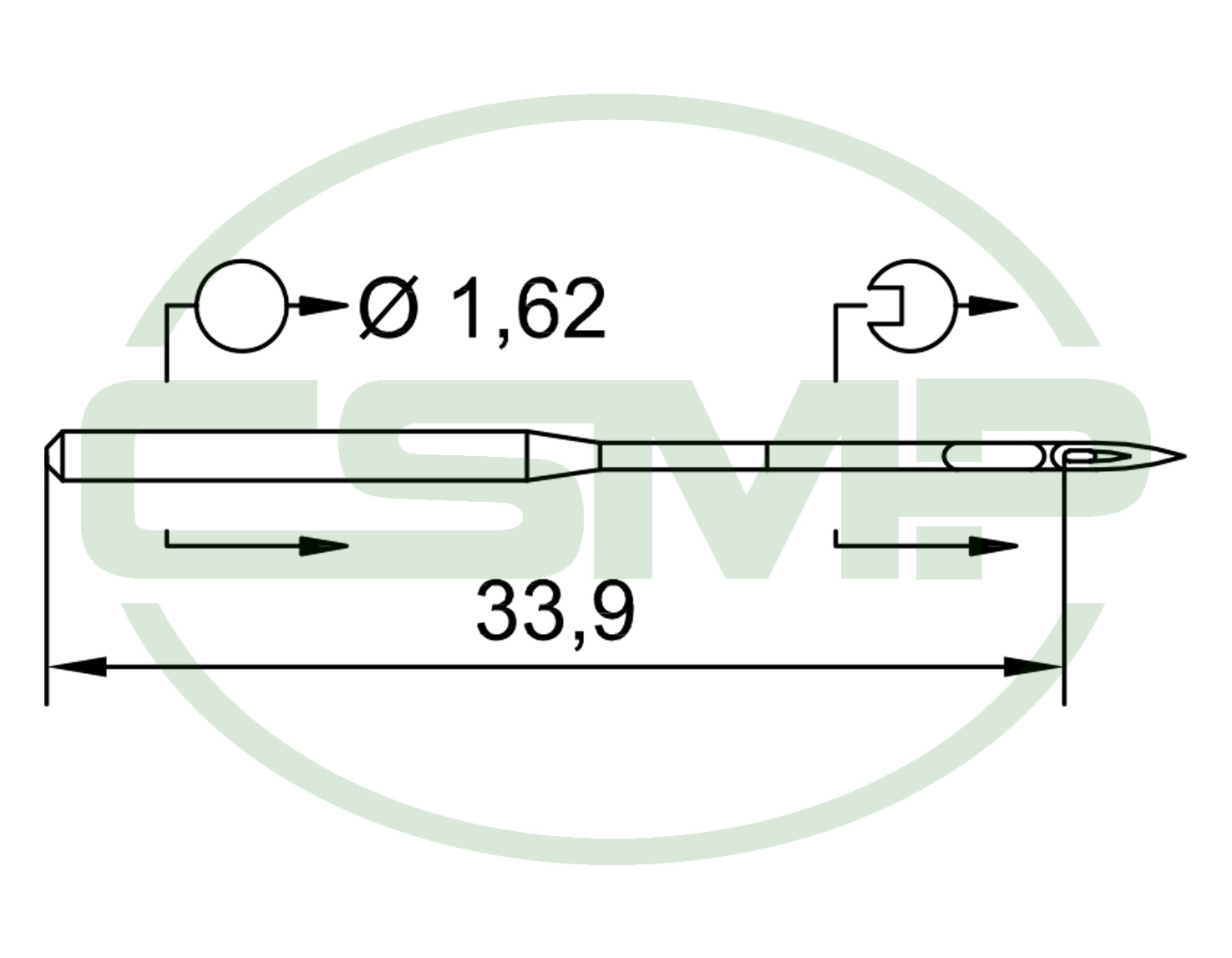

Shank-ø | 1.62 mm | |
Overall Length | 37.5 mm | |
Length to Eye | 33.9 mm | |
Needle Form Description | Straight needle with single groove and scarf | |
Technical Sewing Application | Single and multihead embroidery | |
Stitch Type Class | 300 | |
Recommended For | Knitwear, Woven fabrics, Leather | |
Examples of Use | All kinds of embroidery |
More Information
Part No | DBXK5SAN1GEBX80 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Groz Beckert |
Needle Size | NM 80 / Size 12 |
