BROTHER UF-8910-000 1N STANDARD UNISON FEED MACHINE
Description / BROTHER UF-8910-000 1N STANDARD UNISON FEED MACHINE
Brother UF-8910-000
Standard Single needle, direct drive, flat-bed, unison-feed machine with thread trimmer
The new brother electronic digital unison feed machine is the result from more than 110 years of experience in innovation in industrial sewing machine manufacturing.
- Customizable, easy to use and to program
- Three different specifications to fit all needs; many functions are standard
- New innovative and unique functions
From luxury leather production to car seat, car interior, airbag, and upholstery.
The new unison feed machine of brother is covering a large variety of different applications.
Wide arm bed and digitized numerical management are standard. This is the new global standard of Brother's unison-feed sewing machines. Panels and buttons can be customized to the customer's needs for user-friendly operation.
- Color LCD Touch Panel that can be customized to suit your usage.
- Digitizing adjustment for enhanced sewing reproducibility, helpful for all repeated orders production, and useful to reproduce machine setting.
- Large fabric is easy to handle due to its wide arm bed. Essential for airbag, big bags or upholstery production.
Features

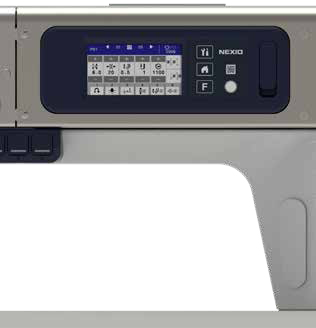

Color LCD touch panel that can be customized to suit your usage.
Two home screens can be selected for each usage.
It is also possible to customize the six switches and see the current setting values. In addition, it has a function to lock various setting changes to prevent operational errors from occurring.

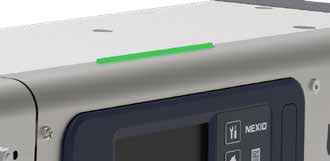

Status LED
Three color LEDs allow you to check the status of the sewing machine. Very easy to identify from distance status of each machine.

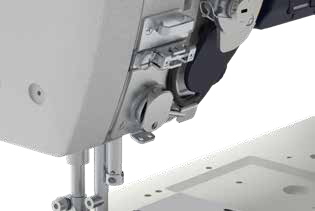

Digitizing adjustment for enhanced sewing reproducibility
Thread tension, alternating presser foot movement, the presser bar pressure, feed pitch and the sewing speed can now be digitalized.
Adjustments that used to depend on hu-man senses can now be set numerically with more precision, and identical results on different machines.

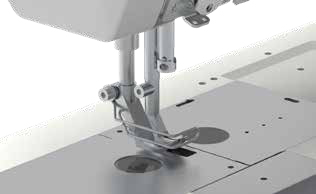

Upper thread holding device is equipped as standard
The upper thread holding device can be set to maintain the upper thread in the back of the fabric at the beginning of sewing.
Large fabric is easy to handle due to its longer arm bed
The 400mm longer arm bed can easily handle large fabrics without stress.
Two highly illuminated LED lights are installed to help improve the operator‘s work efficiency.
Equipped with two USB ports
It is possible to easily copy sewing data and adjustment values between sewing machines using a USB memory.
Software upgrades can also be done simple. The USB port on the control box is also capable of power supply.
Productivity improvement with loT capabilities
The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work. The optional LAN port can be used to expand the functionality to match the customer‘s needs.
Technical Specification
| Model name | Brother UF-8910-000 |
|---|---|
| Subclass | Standard |
| Stitch | Single needle unison feed |
| Electric Bobbin Winder | - |
| Skip-stitch detection device | - |
| Max. sewing speed | 3,800sti/min |
| Max. back tacking speed | 2,000sti/min |
| Max. stitch length | 9mm |
| Presser foot height | 20mm |
| Max. interaction lift stroke | 9mm |
| Presser bar pressure | 70~125N |
| Needle thread tension | 0.7~9.5Nm |
| Arm pocket size | 400mm |
| Hook size | 28mm |
| Standard twin needle gauge | - |
| Min. needle gauge | - |
| Max. needle gauge | - |
| Needle bar stroke | 40mm |
| Needle (DBx1 / DPx5) | 134×35 Nm130 (#21) Nm125~180 (#20~#24) |
| LED light | LED for sewing area and arm pocket are standard equipment |
| Number of programs | 15 programs (each program has 20 steps) |
| Number of patterns | 9~50 patterns*1 |
| Motor | AC servo motor (1kW) |
| Power | Single phase, 3-phase: 200V-240V |
*1 Varies depending on the number of stitches per pattern and the total number of needles
More Information
| Part No | BROUF8910000 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Brother |
