BROTHER T-8420C-003 N64D 6.4MM 1/4 TWIN NEEDLE HEAD ONLY

Part No BROT8420C003N64D
Brother T-8720C-005 N64D Twin Needle Lock Stitcher with Large Hook High position of arm jaw and large arm pocket make handling material easier Easy to replace gauge parts Feed Method Can Be Switched To Suit The Sewing Application
Pricing and Availability on Request
Contact Us for Quote

Description / BROTHER T-8420C-003 N64D 6.4MM 1/4 TWIN NEEDLE HEAD ONLY

Brother T-8720C-005 N64D

Twin Needle Lock Stitcher with Large Hook

  • High position of arm jaw and large arm pocket make handling material easier
  • Easy to replace gauge parts

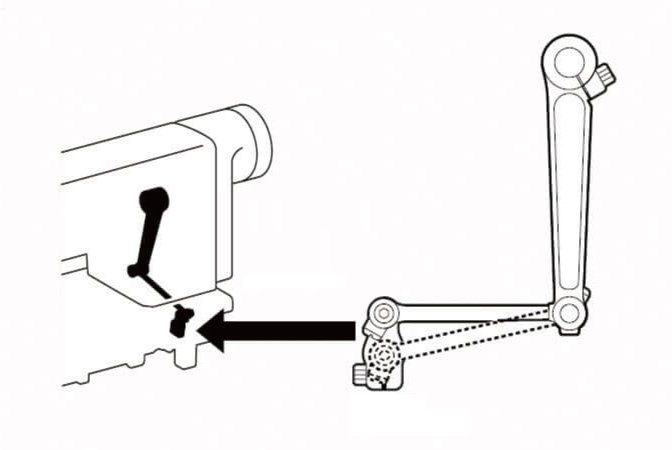

Feed Method Can Be Switched To Suit The Sewing Application

A function to switch between needle feed and lower feed is equipped as a standard function. Needle feed is effective in preventing uneven material feeding, and lower feed prevents puckering and is ideal for making quick and frequent turns. The operator can select the optimum feed method according to the material and the process, so that sewing quality can be increased.

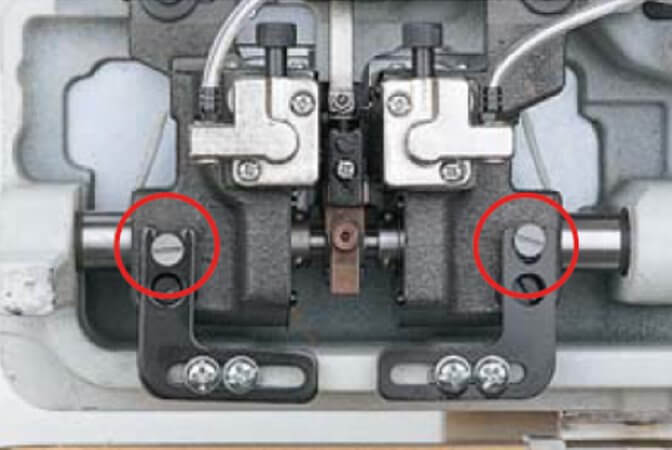

Easy Gauge Part Replacement

Cam adopted in the lateral position adjustment mechanism for the rotary hook base allows easy fine adjustments for clearance between needle and rotary hook point can easily be made, which greatly increases the efficiency of replacing gauge parts. Furthermore, a needle drop correction function (sideways) is provided, so that the needle drop position can still be adjusted to the center of the needle hole even if using commercially-available gauge parts. The gauge parts for previous models can still be used without any changes.

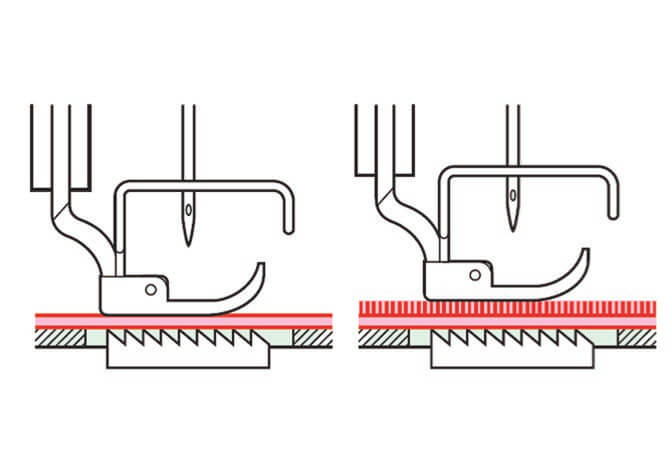

Enhanced Sewing Quality

Optimized floating presser foot for long pile materials A micro-adjustable type floating presser foot, which can be slightly lifted to sew according to sewing materials, is equipped as standard. This device is ideal for controlling presser foot floating in materials that stretch easily and materials with long pile. It prevents damage to the material. In addition, articles can be handled with ease even when sewing curves.

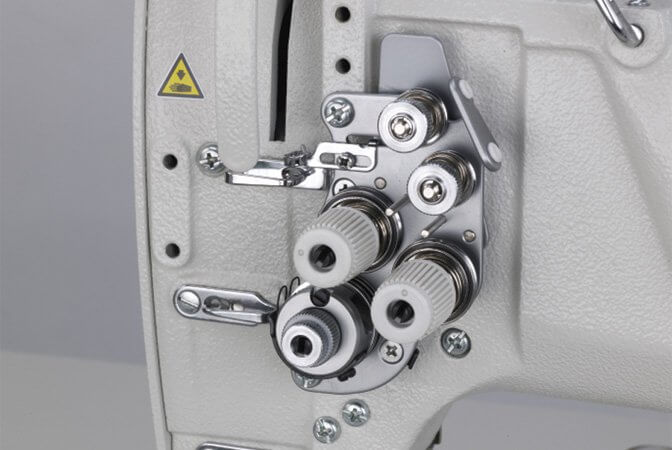

Excellent Material Compatibility

The angle of the feed dog can now be adjusted. In addition, it is now much easier to adjust the height of the feed dog. Furthermore, the thread take-up amount can be adjusted, so that materials from light to medium weight can be sewn with -□□3 sub-classes.
Adjustments can be made easily to the optimum settings, so that a wide range of different materials can be sewn.


Technical Specifications

>
Model Brother T-8720C-005 N64D
Lubrication type Minimum lubrication
Application Light materials
Medium materials
Max. sewing speed 4,000 sti/min
Needle DPx5 (#14)
Max. stitch length 4.0mm
Presser foot height 7.0mm
Height of feed dog 1.0mm
Arm pocket size 120.0 mm x 264.0mm
Arm bed size 517.5mm x 178.0mm
Bobbin winder Included in machine arm
Machine head drive Belt drive mechanism
Weight Machine head : 42.5kg

Product Attachments

document-text
Brother T-8420C Brochure (805.01 kB)
document-text
Brother T-8420C Parts Book (2.04 MB)

More Information

Part No BROT8420C003N64D
Weight (KG) 55.000000
Manufacturer Brother
