BROTHER KE-430HS-03 BARTACK MACHINE MEDIUM WEIGHT
Description / BROTHER KE-430HS-03 BARTACK MACHINE MEDIUM WEIGHT
Brother KE-430HS-03
Electronic Direct Drive Lockstitch Medium Weight Bar Tacker (Short remaining thread spec.)
Stable thread tightening and thread trimmer when sewing from light materials to medium materials and heavy materials. They minimize the the disposition of thread ends.
- Productivity Improvement by World's Top-class Sewing Speed and IoT
- Reduction of disposition of threads ends (short remaining thread)
- Beautiful and Highly-reproducible Sewing Quality
- Superior Usability as Everyone can Use Easily and Reliability
- Clean Sewing with Minimum Lubrication
Productivity improvement by World’s Top-class Sewing Speed and IoT
Overwhelmingly Superior Productivity with Sewing Speed 3,300sti/min
KE-430H provides 3,300sti/min and contributes to enhance productivity.
Reduction of Disposition of Thread Ends (Short Remaining Thread)
Thread trimmer driven by stepping motor cuts the thread more shortly, stably and quietly than conventional mechanical thread trimmer. It reduces hand trimming work after sewing.
Also, the thread nipper, equipped as standard*2, minimizes thread cast off at sewing start and bird’s nest.
Productivity Improvement with IoT
NEXIO series are IoT applicable models. The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work.
Beautiful and Highly-reproducible Sewing Quality
Thread Tension can be Set as Numerical Value by Digital Tension
You can adjust the tension appropriately for the material being sewn without relying on individual feel. It provides higher production management and sewing reproducibility.
Clean Sewing without Oil Staining
HS models are minimum lubrication and they supply limited oil only to the needle bar and thread take-up and prevent oil from being dispersed, realizing clean sewing for your valued product.
Superior Usability as Everyone can Use Easily and Reliably
User-intuitive Color LCD with Touch Panel
Equipped the Color LCD with touch panel and indicates display items with illustration icons, offering use-intuitive operation. It is very easy to set cycle program. Also, sewing patterns, sewing speed, magnification and upper thread tension can be memorized easily as user programs.

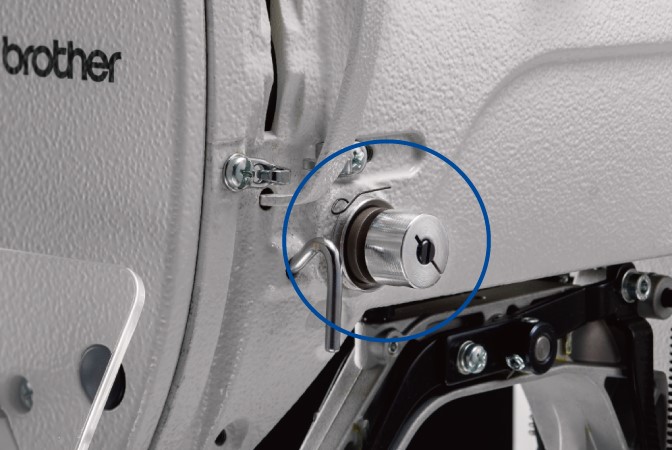

Reduction of Maintenance Cost as No Need for Grease-up Work.
There is no need for grease-up work at connecting rod because it adopts oil lubricating. It reduces maintenance work.
Low Noise and Low Vibration for Stress-Free Operation
Low Noise and Low Vibration for Stress-Free Operation
Wide variety of sewing capability due to enlarged sewing area
Sewing area can be expanded from 40mmx30mm to 50mmx40mm as option. It enables to sew more applications such as hook and loop fastener and applique.
Technical Specifications
| Model | Brother KE-430HS-03 |
|---|---|
| Lubrication type | Minimum lubrication |
| Application | Medium materials |
| Max. sewing speed | 3,300sti/min |
| Max. sewing area | Max. 40x30mm |
| Stitch length | 0.05～12.7mm |
| Feed mechanism | Y-θintermittent feed mechanism (pulse-motor driven mechanism) |
| No. of stitches | Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset) |
| Max.No. of stitches | 5,000 stitches/pattern |
| Work clamp lifter | Pulse motor drive system |
| Work clamp height / Button clamp height | Max. 17mm |
| Rotary hook | Shuttle hook (double shuttle hook, optional) |
| Digital tension | Standard equipment |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Thread nipper | Option |

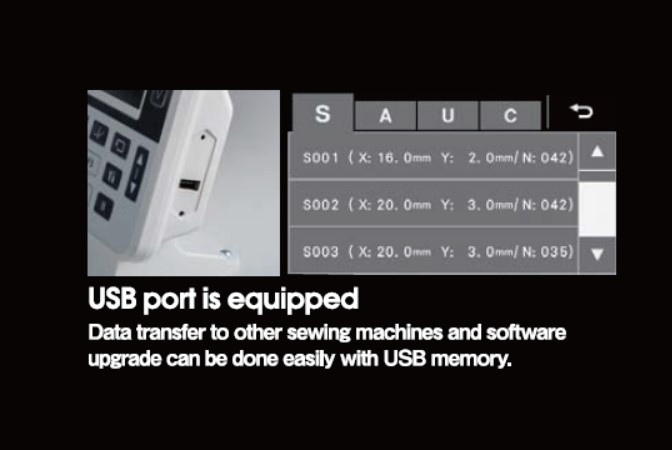

| Data storage method | Internal flash memory (Data addition is available with external memory) |
| No. of cycle programs | 30 cycle (50 programs for each cycle) |
| No. of stored data | 89 sewing patterns are set already (up to 512 patterns can be added. Total number of stitches of stored data which can be added is within 500,000*2) |
| Motor | AC servo motor 550W (Direct Drive) |
| Weight | Machine head: Approx. 58kg Operation panel: Approx. 0.5kg Control box: Approx. 7kg |
| Power supply | Single-phase 100V/200V, 3 phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans box is require |
More Information
| Part No | BROKE430HS03 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Brother |
