BROTHER DA-928A-7-364X 3N 6.4MM EXTRA HEAVY WEIGHT F.O.A HEAD
Part No
BRODA92807364
Brother DA-928A-7-364X
Twin Needle Feed Off the Arm Double Chain Stitcher
Clean Sewing with Minimum Lubrication System
A New Knife with Highly Safe Shape
Beautiful Sewing Finishes with New Presser Mechanism
Minimum lubrication system can be realizing clean sewing
Pricing and Availability on Request
Description / BROTHER DA-928A-7-364X 3N 6.4MM EXTRA HEAVY WEIGHT F.O.A HEAD
Brother DA-928A-7-364X
Twin Needle Feed Off the Arm Double Chain Stitcher
- Clean Sewing with Minimum Lubrication System
- A New Knife with Highly Safe Shape
- Beautiful Sewing Finishes with New Presser Mechanism

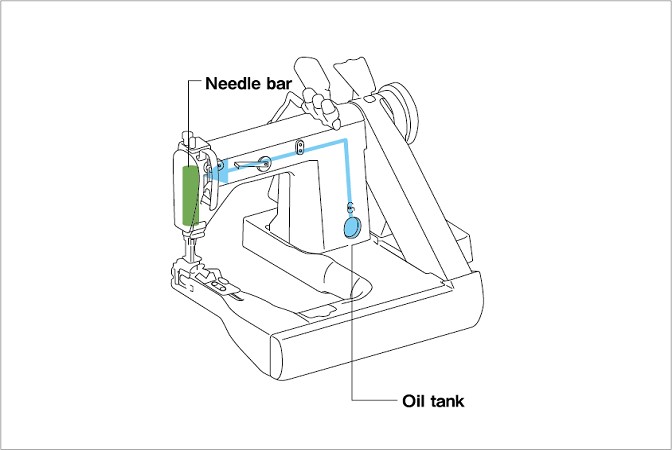

Minimum lubrication system can be realizing clean sewing
Minimum lubrication system supplies limited oil only to the needle bar and the upper shaft realizing clean sewing for your valued products.

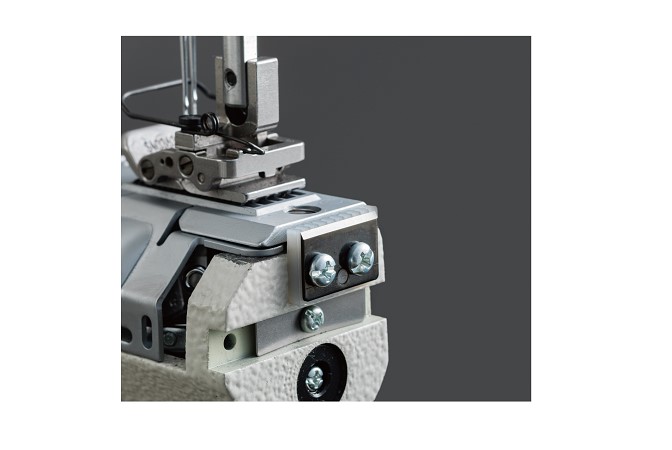

A new knife with highly safe shape
Sewing work can be done safely with a new knife with highly safe shape.
Improved presser foot mechanism offers high quality sewing.
Lightened presser foot mechanism prevents uneven material feeding, meeting the highest quality standard and the follow-up ability with respect to the presser foot pressure has been improved by 20%.
Technical Specifications
| Model | Brother DA-928A-7-364X |
|---|---|
| Applications | Extra-Heavy materials |
| Lubrication type | Minimum lubrication |
| Max. sewing speed | 4,000sti/min*1 |
| Max. stitch length | 4.7mm |
| Height of presser foot | 11mm |
| Needle bar stroke | 35mm |
| Needle | TVX5 #140 |
| Needle gauge | 3-needles 1/8 X 2 |
| Height of feed dog | 1.3mm |
| Weight | 49kg |
| Size | 465mm x 500mm x 340mm |
| Outer perimeter of cylinder | 171mm |
| Presser foot presser | 58.8~98N (6~10kgf) |
More Information
| Part No | BRODA92807364 |
|---|---|
| Weight (KG) | 0.100000 |
| Manufacturer | Brother |
