BROTHER BE-438HX DIGITAL TENSION HEAD ONLY BUTTON SEWING MACHINE
Description / BROTHER BE-438HX DIGITAL TENSION HEAD ONLY BUTTON SEWING MACHINE
Brother BE-438HX
Electronic Direct Drive Lockstitch Button Sewer (Short remaining thread spec.)
With world top-class sewing speed and prevention, the machine improve productivity. It also has superior sewing quality, usability, and reduces maintenance cost.
- Prouctivity Improvement by World's Top-class Sewing Speed and IoT
- Reduction of disposition of threads ends (short remaining thread)
- Beautiful and Highly-reproducible Sewing Quality by Digital Tension
- Set Button Smoothly
- Superior Usability as Everyone can Use Easily and Reliability
- Clean Sewing with Semi-dry Type
Productivity improvement by World’s Top-class Sewing Speed and IoT
Overwhelmingly Superior Productivity with Sewing Speed 2,800sti/min
BE-438HX provides 2,800sti/min and contributes to enhance productivity.
Reduction of Disposition of Thread Ends (Short Remaining Thread)
Thread trimmer driven by stepping motor cuts the thread more shortly, stably and quietly than conventional mechanical thread trimmer. It reduces hand trimming work after sewing.
Productivity Improvement with IoT
NEXIO series are IoT applicable models. The visualization by connecting sewing machine and computer technology enables the customer to analyze, manage processes and speed up productivity improvement and maintenance work.
Beautiful and Highly-reproducible Sewing Quality

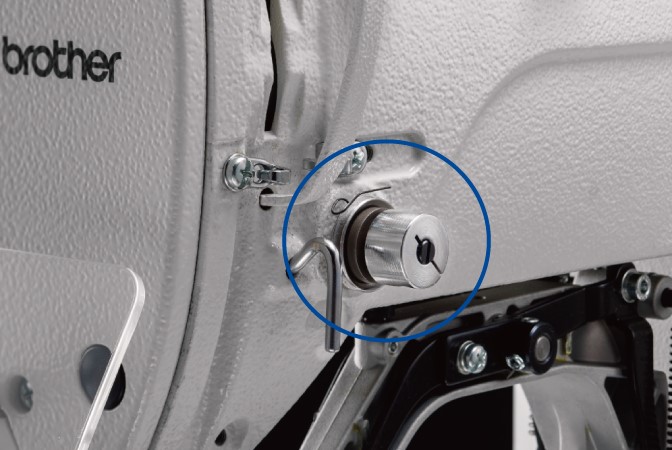

Thread Tension can be Set as Numerical Value by Digital Tension
You can adjust the tension appropriately for the material being sewn without relying on individual feel. It provides higher production management and sewing reproducibility.
Clean Sewing without Oil Staining
This model is semi-dry type and they supply constant clean oil only to the shuttle hook, there is no concern of oil stain and it realizes clean sewing for your valued product.
Superior Usability as Everyone can Use Easily and Reliably
User-intuitive Color LCD with Touch Panel
Equipped the Color LCD with touch panel and indicates display items with illustration icons, offering use-intuitive operation. It is very easy to set cycle program. Also, sewing patterns, sewing speed, magnification and upper thread tension can be memorized easily as user programs.
Reduction of Maintenance Cost as No Need for Grease-up Work.
There is no need for grease-up work at connecting rod because it adopts oil lubricating. It reduces maintenance work.
Low Noise and Low Vibration for Stress-Free Operation
Its noise and vibration are minimized by reducing impact as thread trimming. Operators can sew confortably without fatigue and stress.
Wide variety of sewing capability due to renewed button clamp
Set button smoothly
Renewed button clamp enables to set a button more smoothly.
It enables to sew a large button(20-30mm) as well.
BE-438H can sew a large button(20-30mm) as option. You can sew more applications with this sewing machine.
Technical Specifications
| Model | Brother BE-438HX |
|---|---|
| Application | Button attaching |
| Lubrication | Semi-dry |
| Max. sewing speed | 2,800sti/min |
| Max. sewing area | Max.6.4x6.4mm |
| Dimensions of buttons that can be sewn | Outer diameter of buttons 8-30mm*1 |
| Stitch length | 0.05～6.4mm |
| Feed mechanism | Y-θintermittent feed mechanism (pulse-motor driven mechanism) |
| No. of stitches | Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset) |
| Max.No. of stitches | 5,000 stitches/pattern |
| Work clamp lifter | Pulse motor drive system |
| Work clamp height / Button clamp height | Max. 13mm |
| Rotary hook | Shuttle hook (double shuttle hook, optional) |
| Digital tension | - |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Thread nipper | Standard equipment |
| Data storage method | Internal flash memory (Data addition is available with external memory) |
| No. of cycle programs | 30 cycle (50 programs for each cycle) |
| No. of stored data | 64 sewing patterns are set already (up to 512 patterns can be added. Total number of stitches of stored data which can be added is within 500,000*2) |
| Motor | AC servo motor 550W (Direct Drive) |
| Weight | Machine head: Approx. 57kg Operation panel: Approx. 0.4kg Control box: Approx. 9kg |
| Power supply | Single-phase 100V/200V, 3 phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans box is require |
More Information
| Part No | BROBE438HX |
|---|---|
| Weight (KG) | 66.000000 |
| Manufacturer | Brother |
