BROTHER BAS-375H-05A 1200 X 700 PATTERN SEWING MACHINE
Description / BROTHER BAS-375H-05A 1200 X 700 PATTERN SEWING MACHINE

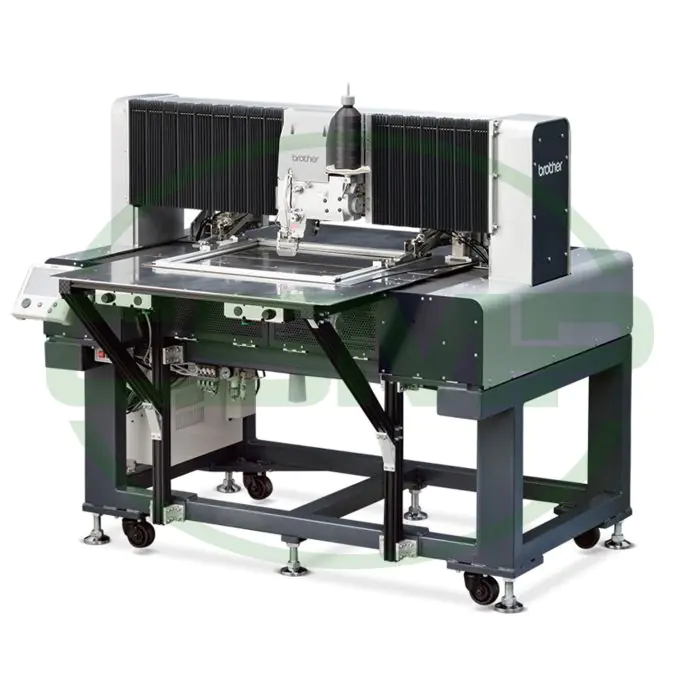

Brother BAS-375H-05A
Bridge Type Programmable Electronic Pattern Sewer (1200mm x 700mm)
The large sewing area enables to set multiple workpieces of such as shoes or bags at the same time and to sew larger applications such as automotive airbags, enhances productivity.
- Bridge type mechanism provides great sewing quality at higher sewing speeds
- World’s top-class productivity and sewing quality with Great sewing speeds
- Max. sewing area: 1200mmx700mm
World’s top-class productivity and sewing quality
Bridge type mechanism has a feed mechanism of X and Y that drives independently so that it provides great sewing quality at higher sewing speeds. A needle cooler preventing thread breakage thus for greater sewing speeds（Max. 2,700sti/min).

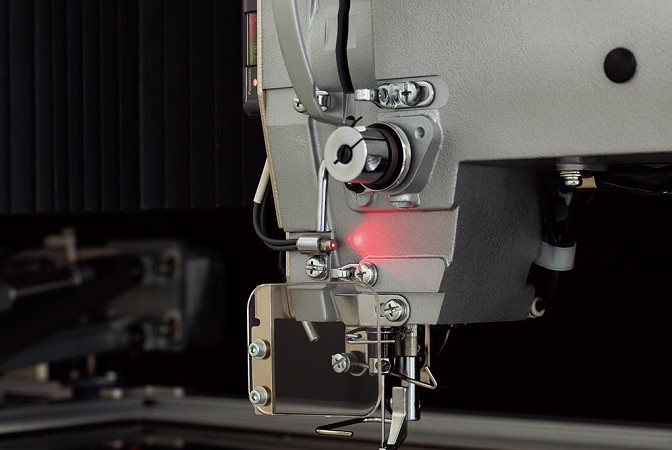

Include new digital tension and needle thread breakage detection mechanism as standard equipment
Various sizes of sewing threads can be used by the new digital tension which increases the setting range of the upper thread tension. Detects kind of needle thread breakage opportunity immediately, and which reduces defective workpieces.

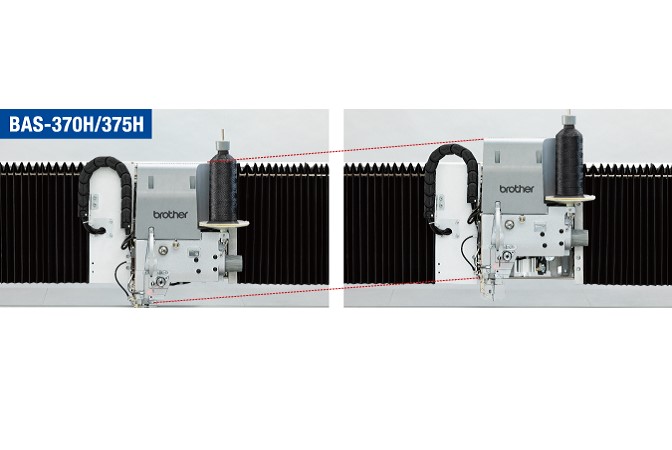

Machine head lifting function
The machine head rises 70 mm. Even with thick materials and clamps, you can sew a greater variety of applications minimizing concern for interference with the head. (BAS-370H / 375H only)

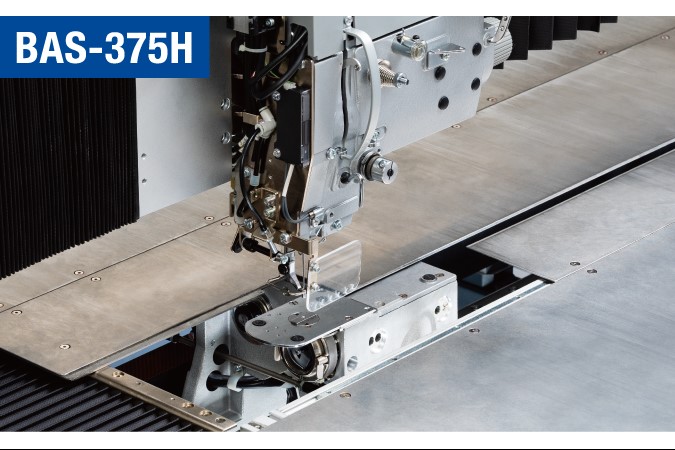

Ease of Access to shuttle hook area is simplified
When adjusting shuttle hook, the operator does not have to reach under the machine.

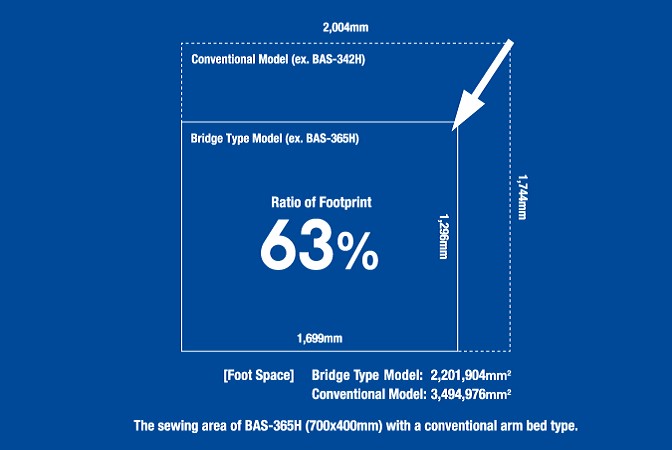

Effective utilization of factory floor space with compact footprint
The workspace footprint is extremely small for the larger sewing area provided when compared to conventional type BAS machines *1,allows making additional space for another machine.
*1 Programmable electronic sewing machine with sewing area larger than or equal to 200,000mm2 (BAS-365H: 280,000mm2)
Technical Specifications
| Model | Brother BAS-375H-05A |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,500sti/min |
| Max. sewing area | 1200x700mm |
| Footprint | 2,199mmx2,076mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-20.0mm (per 0.05mm) |
| Max. number of stitches | 100,000 stitches (per program) |
| Max. number of programs | 999 |
| Height of stepping presser foot | 25mm(highest needle stop position) |
| Stepping presser foot stroke | 0-10mm(per 0.1 mm) |
| Hook | Double-capacity shuttle hook |
| Head lifting function | Standard equipment |
| Head lifetable | 70mm (height from the top of the auxiliary plate Max.95mm) |
| Needle cooler | Standard equipment |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Digital tension | Standard equipment |
| Thread breakage detector | Standard equipment (fiber sensor drive) |
| Data storage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Approx. 910kg |
| Power | Single phase 220V / 230V 3-phase 200V / 220V / 380V / 400V |
| Apparent power/Power consumption | 1200VA/ 700Wh |
| Air pressure/Consumption | 0.5MPa/Needle cooler ON:1.8l/min OFF:0.2/min |
More Information
| Part No | BROBAS375H05A1200X700 |
|---|---|
| Weight (KG) | 32.000000 |
| Manufacturer | Brother |
