BROTHER BAS-360H-05A 500X400MM PATTERN SEWING MACHINE
Description / BROTHER BAS-360H-05A 500X400MM PATTERN SEWING MACHINE
Brother BAS-360H-05A
Bridge Type Programmable Electronic Pattern Sewer (500mm x 400mm)
The large sewing area enables to set multiple workpieces of such as shoes or bags at the same time and to sew larger applications such as automotive airbags, enhances productivity.
- Bridge type mechanism provides great sewing quality at higher sewing speeds
- World’s top-class productivity and sewing quality with Great sewing speeds
- Max. sewing area: 500mmx400mm
World’s top-class productivity and sewing quality with Great sewing speeds（Max. 2,500sti/min)

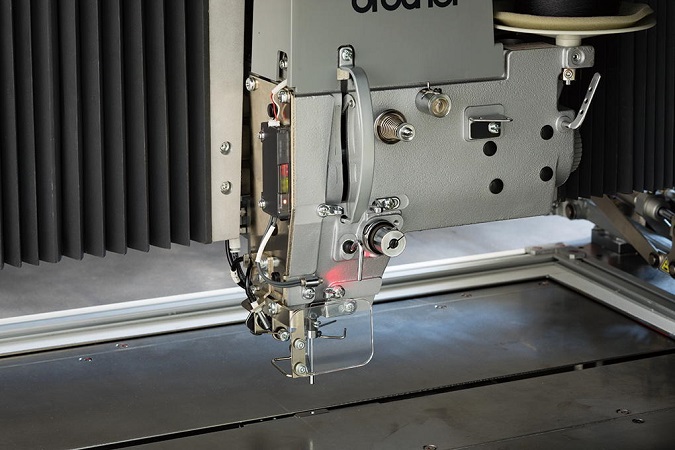

Bridge type mechanism has a feed mechanism of X and Y that drives independently so that it provides great sewing quality at higher sewing speeds.

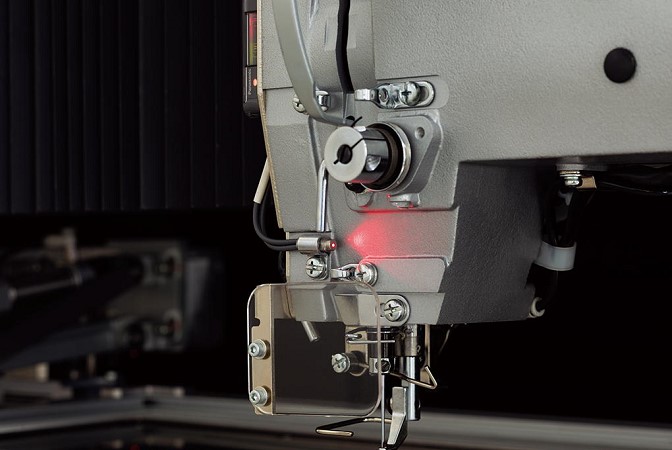

Include new digital tension and needle thread breakage detection mechanism as standard equipment
Various sizes of sewing threads can be used by the new digital tension which increases the setting range of the upper thread tension. Detects kind of needle thread breakage opportunity immediately, and which reduces defective workpieces.
Effective utilization of factory floor space with compact footprint
The workspace footprint is extremely small for the larger sewing area provided when compared to conventional type BAS machines *1, allows making additional space for another machine.
*1 Programmable electronic sewing machine with sewing area larger than or equal to 200,000mm2 (BAS-365H: 280,000mm2)
Brother’s unique control technology prevents pattern shape losing when sewing at high speed.
It keeps accuracy of stitch point and attains both of high sewing quality and productivity even at high speed sewing.

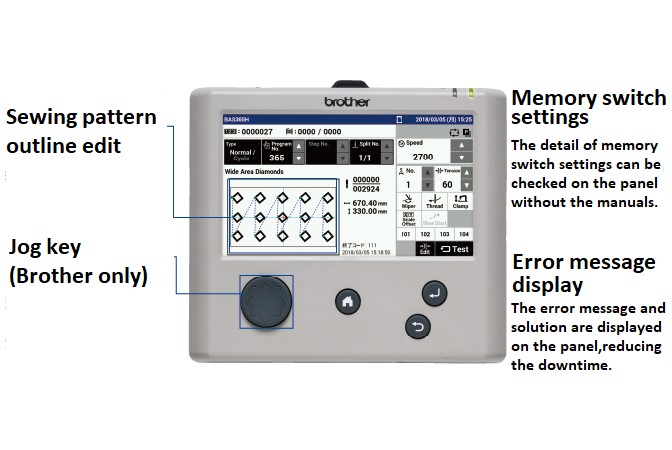

User-friendly color LCD with touch panel display
7-inch large screen and easy programming functions via LCD touch panel enable an intuitive easy-to-use experience.
Technical Specifications
| Model | Brother BAS-360H-05A |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,700sti/min |
| Max. sewing area | 500x400mm |
| Footprint | 1,489mmx1,296mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-20.0mm (per 0.05mm) |
| Max. number of stitches | 100,000 stitches (per program) |
| Max. number of programs | 999 |
| Work clamp lift amount | Max. 52.5mm |
| Height of stepping presser foot | 25mm(highest needle stop position) |
| Stepping presser foot stroke | 0-10mm(per 0.1 mm) |
| Hook | Double-capacity shuttle hook |
| Needle cooler | Standard equipment |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Digital tension | Standard equipment |
| Thread breakage detector | Standard equipment (fiber sensor drive) |
| Data storage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Approx. 630kg |
| Power | Single phase 220V / 230V 3-phase 200V / 220V / 380V / 400V |
| Apparent power/Power consumption | 950VA/ 560Wh |
| Air pressure/Consumption | 0.5MPa/Needle cooler ON:1.8l/min OFF:0.2/min |
