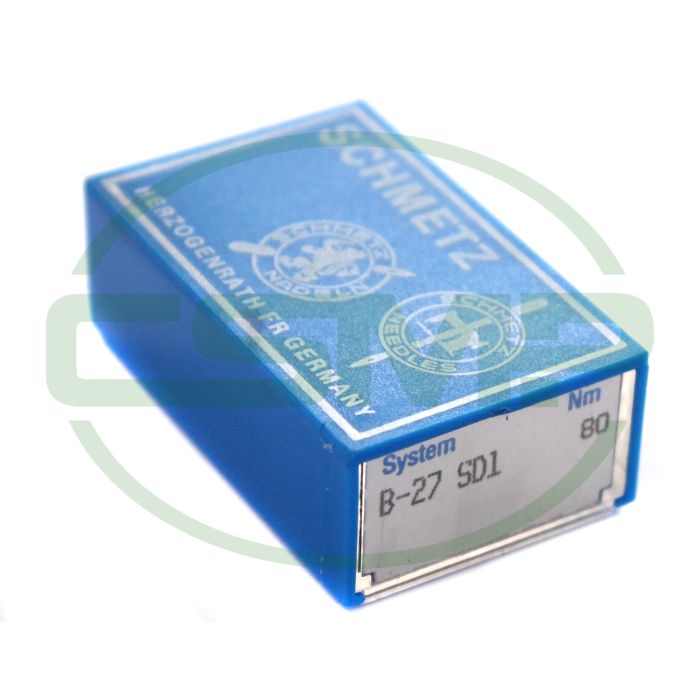

B27SD1 SIZE 80 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED
Description / B27SD1 SIZE 80 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED
Schmetz 03:36ME1 - B-27 SD1, MY 1023 SD1, UY 191 GS SD1, DCX27 SD1, RIM 27 SD1 - NM 80 / Size 12 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.
Needle Specification
Customary Needle Designations | B-27 SD1, MY 1023 SD1, UY 191 GS SD1, DCX27 SD1, RIM 27 SD1 |
---|---|
CANU | 03:36ME1 |
NM / Size | NM: 80 / Size: 12 |
Point Style | SD1 (Round point with small triangular tip) |
Type of Coating | Chrome |

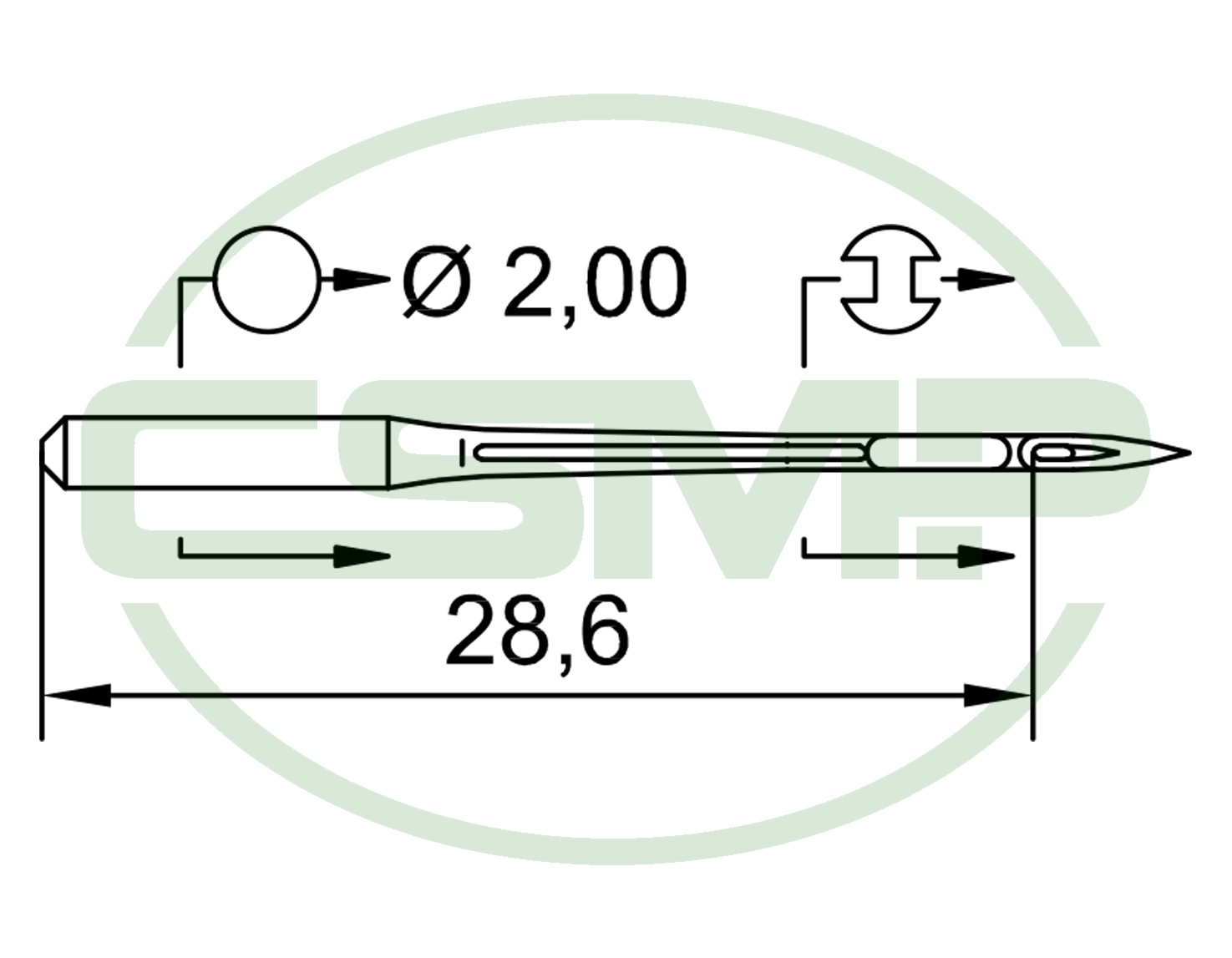

Shank-ø | 2.00 mm |
Overall Length | 33.1 mm |
Length to Eye | 28.6 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 3 |
Stitch Type | Chainstitch |
More Information
Part No | B27SD1X80 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 80 / Size 12 |
