7X3 SIZE 230 PACK OF 10 NEEDLES SCHMETZ
Description / 7X3 SIZE 230 PACK OF 10 NEEDLES SCHMETZ

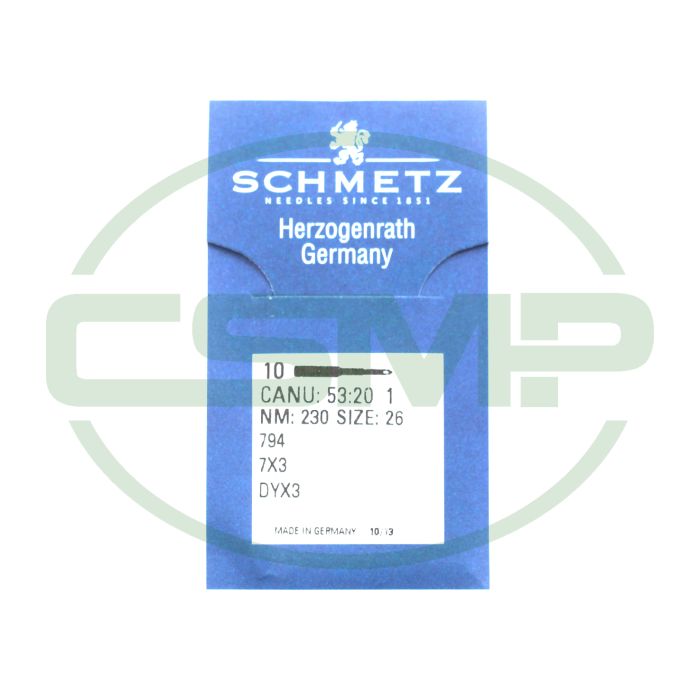

Schmetz 53:20 1 - 794, 7X3, DYX3 - NM 230 / Size 26 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
Customary Needle Designations | 794, 7X3, DYX3 |
---|---|
CANU | 53:20 1 |
NM / Size | NM: 230 / Size: 26 |
Point Style | STANDARD (Normal round point) |
Type of Coating | Chrome |

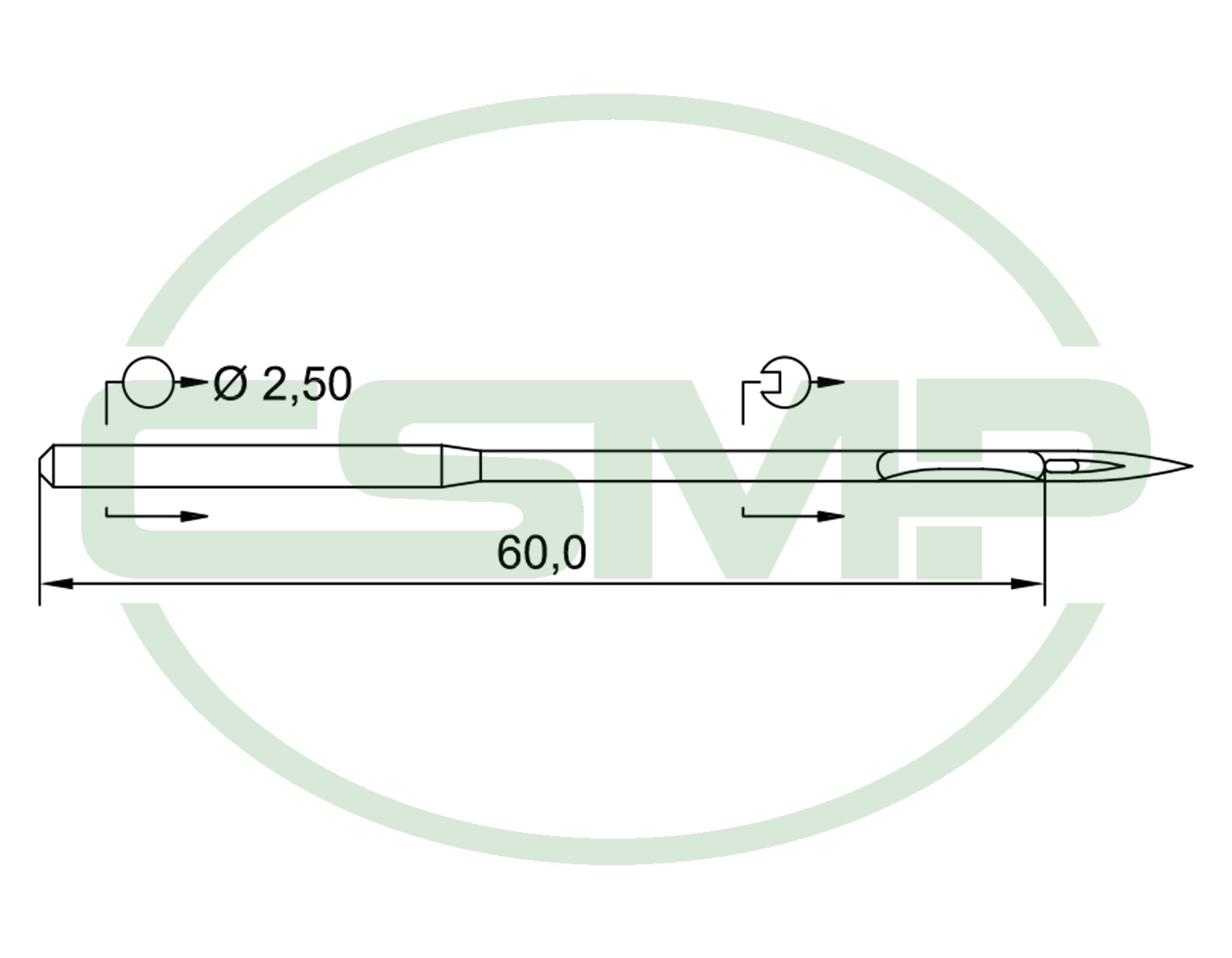

Shank-ø | 2.5 mm |
Overall Length | 67.8 mm |
Length to Eye | 60 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 7X3X230 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 230 / Size 26 |
