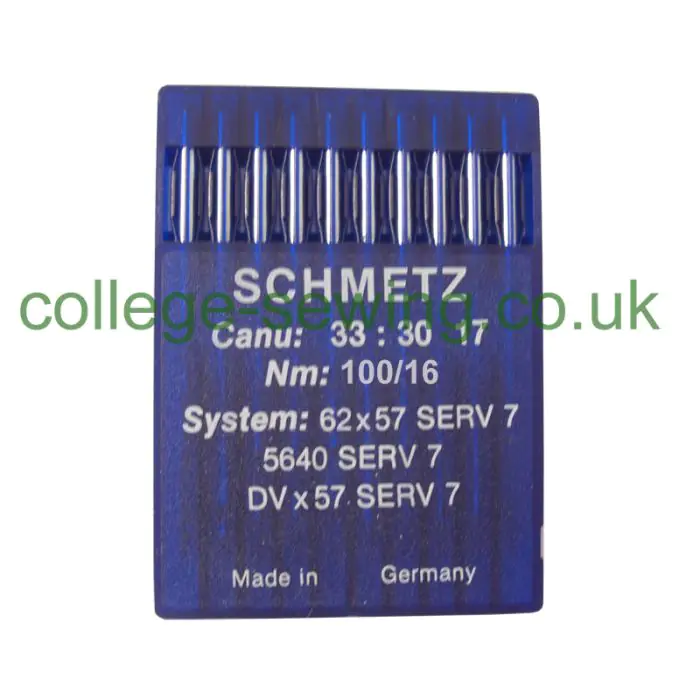

62X57 SERV7 SIZE 100 PACK OF 10 NEEDLES SCHMETZ

Part No 62X57SERV7X100
Schmetz 33:30 17 - 5640 SERV 7, 62X57 SERV 7, DVX57 SERV 7 - NM 100 / Size 16 - STANDARD (Normal round point) SERV 7 Packet of 10 Needles.
£7.46 Ex. VAT
Only 8 Left In Stock!

Description / 62X57 SERV7 SIZE 100 PACK OF 10 NEEDLES SCHMETZ

Schmetz 33:30 17 - 5640 SERV 7, 62X57 SERV 7, DVX57 SERV 7 - NM 100 / Size 16 - STANDARD (Normal round point) SERV 7 Packet of 10 Needles.

STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.

SCHMETZ SERV 7
Besides fabric damage, skip stitches are a problem that frequently arises when sewing elastic material. To prevent them, SCHMETZ developed the SERV 7 needle. This specially shaped needle is made for almost all needle systems, with all the main point shapes and in all current needle sizes.
The main distinguishing features of the SERV 7 design are the hump scarf that makes a particularly large loop of thread which can be more easily caught by the point of the hook and the blade reinforcement, that ensures the extraordinarily high stability of the needle. To produce the smallest possible stitch holes and optimise fabric displacement, the SERV 7 design thus often allows the use of a needle one size smaller without any reduction in the stability of the needle.
SERV 7 needles have a 15 % reinforcement, and as much as 20 % in some needle sizes. Therefore, the needle is especially stable and far less likely to “bend”. Neither the hook or looper nor other machine parts, e.g. the throat plate, are damaged.

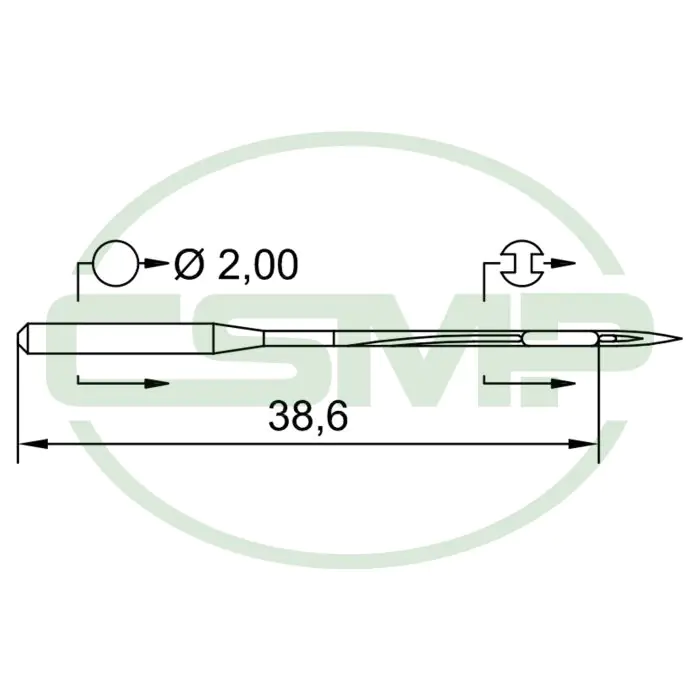

Needle Specification

Customary Needle Designations 5640 SERV 7, 62X57 SERV 7, DVX57 SERV 7
CANU 33:30 17
NM / Size NM: 100 / Size: 16
Point Style STANDARD (Normal round point)
Special Variant Special blade reinforcement and hump scarf, to avoid skipped stitches and reduce needle breakage
Type of Coating Chrome
Shank-ø 2 mm
Overall Length 44.1 mm
Length to Eye 38.6 mm
Shank Flattening Without shank flattening
Blade Shape Straight
Number of Grooves 3
Stitch Type Chainstitch

More Information

Part No 62X57SERV7X100
Weight (KG) 0.015000
Manufacturer Universal / Generic
Needle Size NM 100 / Size 16
