251 SIZE 75 PACK OF 10 NEEDLES GROZ BECKERT
Description / 251 SIZE 75 PACK OF 10 NEEDLES GROZ BECKERT

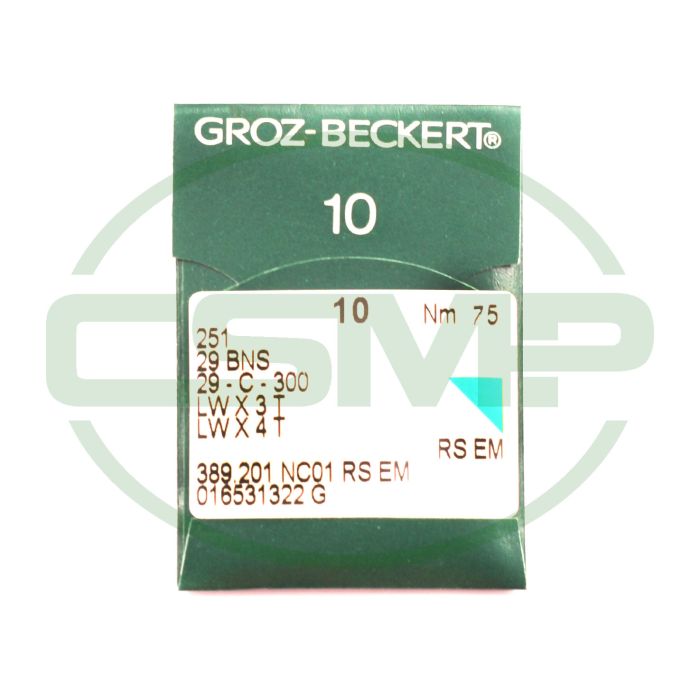

Groz Beckert - 251/29 BNS/29-C-300 - NM 75 / Size 11 - RS EM (Sharp and very slim point) Packet of 10 Needles.
RS EM (Sharp and very slim point)
- Eccentric point (at 0°)
- Exact piercing of the material
Eccentric point at 0°
A needle point is eccentric if it is not aligned exactly with the center of the needle radius, but to a specific position in the outer radius of the needle. Eccentric points fulfil different tasks depending on the needle type.
Flat shank at 270°
On sewing machine needles with a flat shank, one or multiple sides of the shank are flat. The flat shanks are used for radial positioning of the sewing machine needle in the needle bar. This ensures that the needle is positioned in exactly the same specified angle to the threading direction after each change. This guarantees a clear position of the needle in relation to the hook.
Needle Specification
| Customary Needle Designations | LWX3T, LWX4T, 29 BNS, 29 CA, 29-C-300, 251, 1715 F, SY 3690, 39:70 | |
|---|---|---|
| Further Point Designations | EM, EU, LG G ECC SET, RS EM | |
| NM / Size | NM: 75 / Size: 10 | |
| Type of Coating | Chromium | |
| Shank-ø | 2.02 mm | |
| Overall Length | 42.8 mm | |
| Length to Eye | 38.9 mm | |

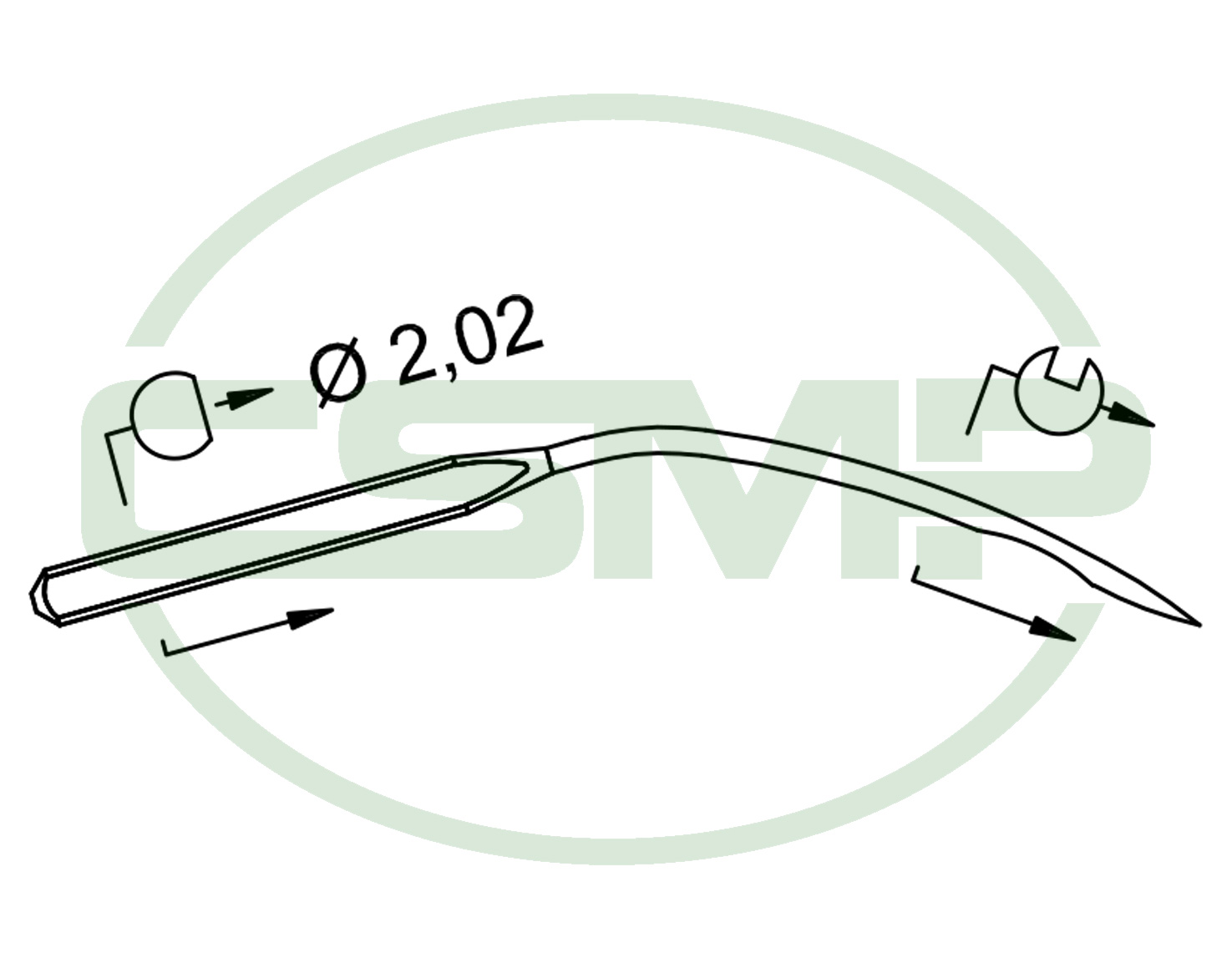

| Needle Form Description | Curved needle with one flat on the shank and sidewise bent blade | |
| Technical Sewing Application | Blind stitch | |
| Stitch Type Class | 100 | |
| Special(s) | Eccentric point at 0°, Flat shank at 270° | |
| Recommended For | Woven fabrics | |
| Examples of Use | Trousers, Suits |
More Information
| Part No | 251X75GB |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Groz Beckert |
| Needle Size | NM 75 / Size 11 |
