24X1 SIZE 130 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED
Description / 24X1 SIZE 130 PACK OF 10 NEEDLES SCHMETZ DISCONTINUED

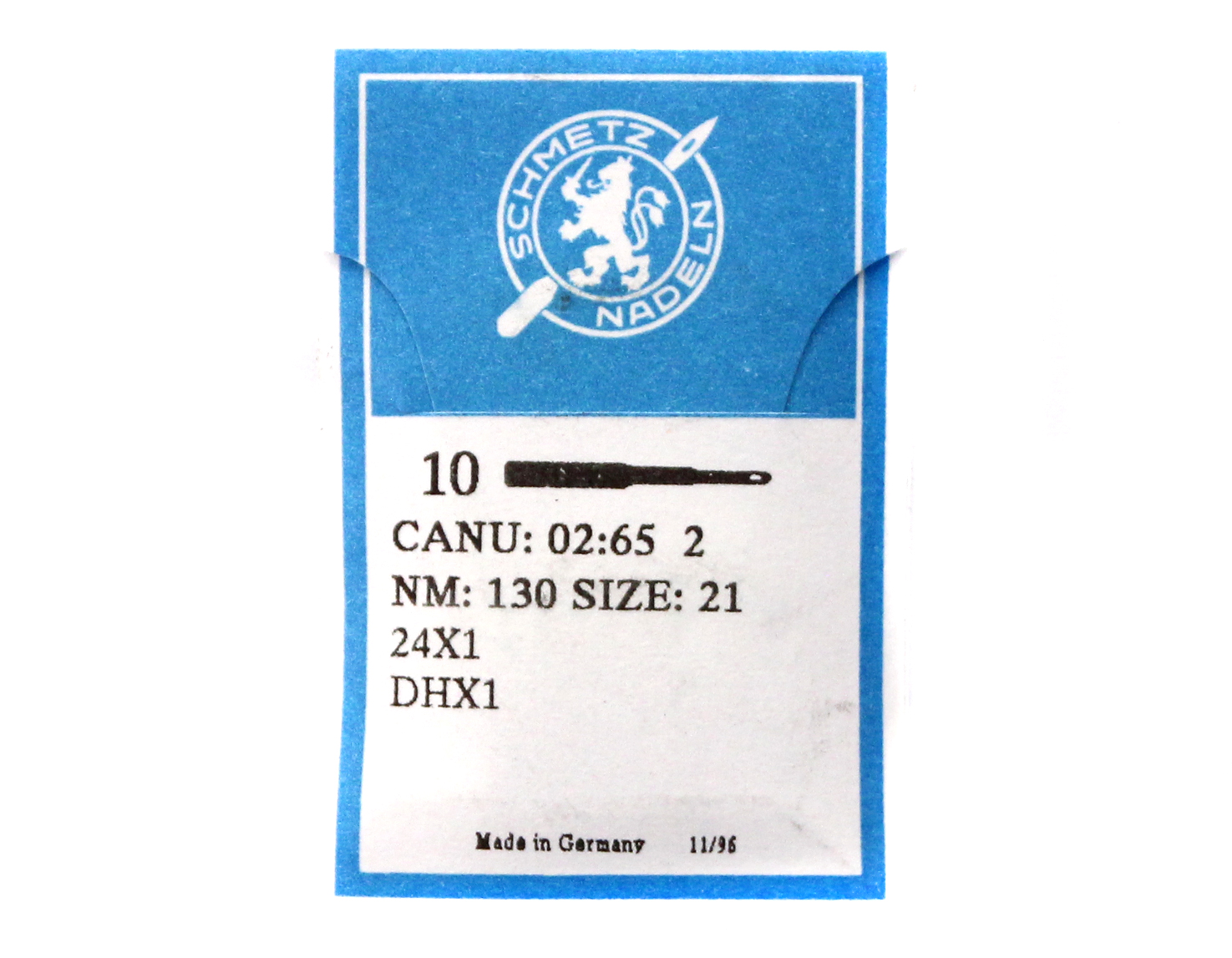

Schmetz 02:65 1 - 24X1, DHX1 - NM 130 / Size 21 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
Customary Needle Designations | 24X1, DHX1 |
---|---|
CANU | 02:65 1 |
NM / Size | NM: 130 / Size: 21 |
Point Style | STANDARD (Normal round point) |
Type of Coating | Chrome |
Shank-ø | 2 mm |
Overall Length | 32.1 mm |
Length to Eye | 28.2 mm |
Shank Flattening | With shank flattening |
Flattening° | 180° |
Blade Shape | Straight |
Number of grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 24X1X130 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 130 / Size 21 |
