2331F SD1 SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Description / 2331F SD1 SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Schmetz 49:07ME1 - 2331 F SD1, 48.50 SD1, EBX2 SD1 - NM 110 / Size 18 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.

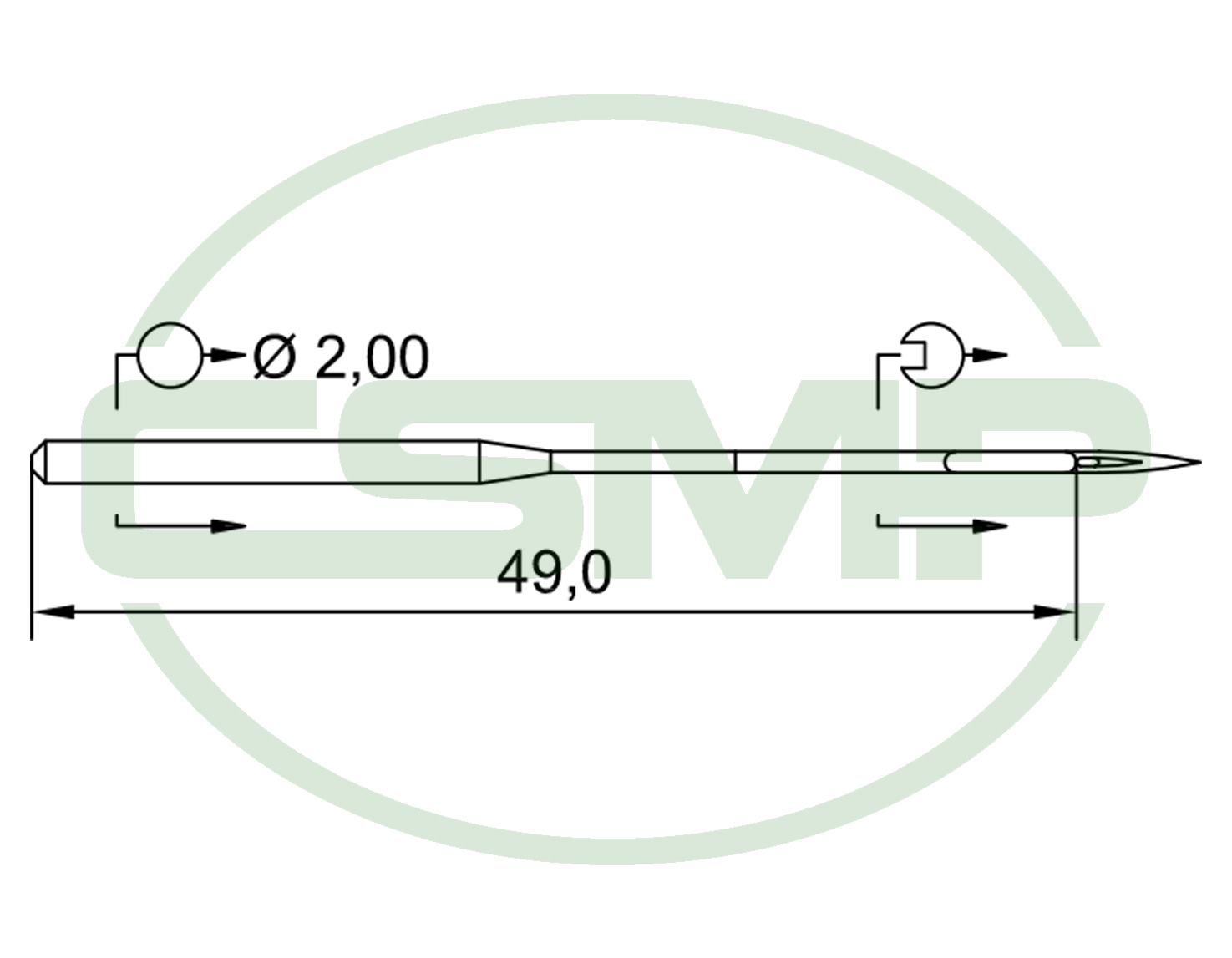

Needle Specification
Customary Needle Designations | 2331 F SD1, 48.50 SD1, EBX2 SD1 |
---|---|
CANU | 49:07ME1 |
NM / Size | NM: 110 / Size: 18 |
Point Style | SD1 (Round point with small triangular tip) |
Type of Coating | Chrome |
Shank-ø | 2 mm |
Overall Length | 54.8 mm |
Length to Eye | 49 mm |
Shank Flattening | With shank flattening |
Flattening° | 90° |
Blade Shape | Straight |
Number of grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 2331FSD1X110 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 110 / Size 18 |
