175X7KK SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Description / 175X7KK SIZE 110 PACK OF 10 NEEDLES SCHMETZ
Schmetz 47:30JB1 - 2091 KK, 175X7 KK, TQ-N14 - NM 110 / Size 18 - STU (Heavy rounded point for button sewing) Packet of 10 Needles.
STU (Heavy rounded point for button sewing)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
Customary Needle Designations | 2091 KK, 175X7 KK, TQ-N14 |
---|---|
CANU | 47:30JB1 |
NM / Size | NM: 110 / Size: 18 |
Point Style | STU (Heavy rounded point for button sewing) |
Type of Coating | Chrome |

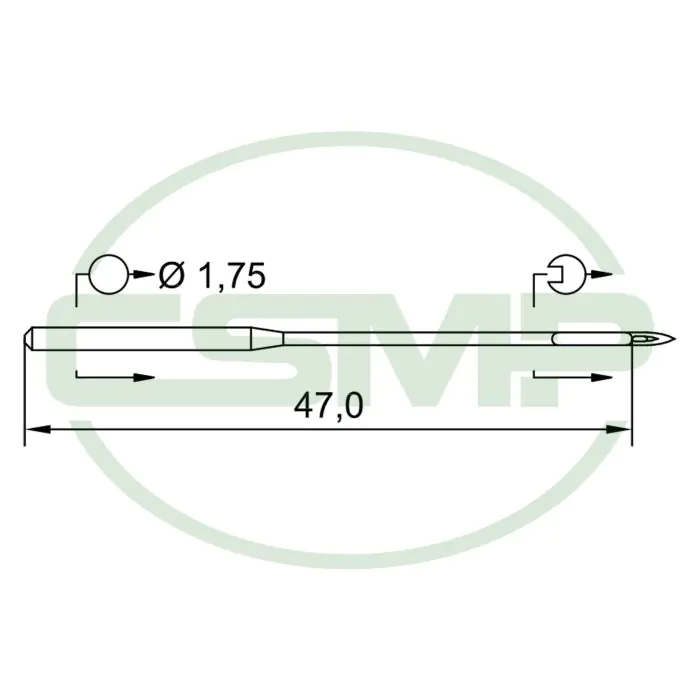

Shank-ø | 1.75 mm |
Overall Length | 50.3 mm |
Length to Eye | 47 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 175X7KKX110 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 110 / Size 18 |
