175X1 SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Part No
175X1X80
Schmetz 27:90JB1 - 29-S, 1985, 175X1, TQX1 - NM 80 / Size 12 - STU (Heavy rounded point for button sewing) Packet of 10 Needles.
£3.63
In Stock
Description / 175X1 SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Schmetz 27:90JB1 - 29-S, 1985, 175X1, TQX1 - NM 80 / Size 12 - STU (Heavy rounded point for button sewing) Packet of 10 Needles.
STU (Heavy rounded point for button sewing)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
| Customary Needle Designations | 29-S, 1985, 175X1, TQX1 |
|---|---|
| CANU | 27:90JB1 |
| NM / Size | NM: 80 / Size: 12 |
| Point Style | STU (Heavy rounded point for button sewing) |
| Type of Coating | Chrome |

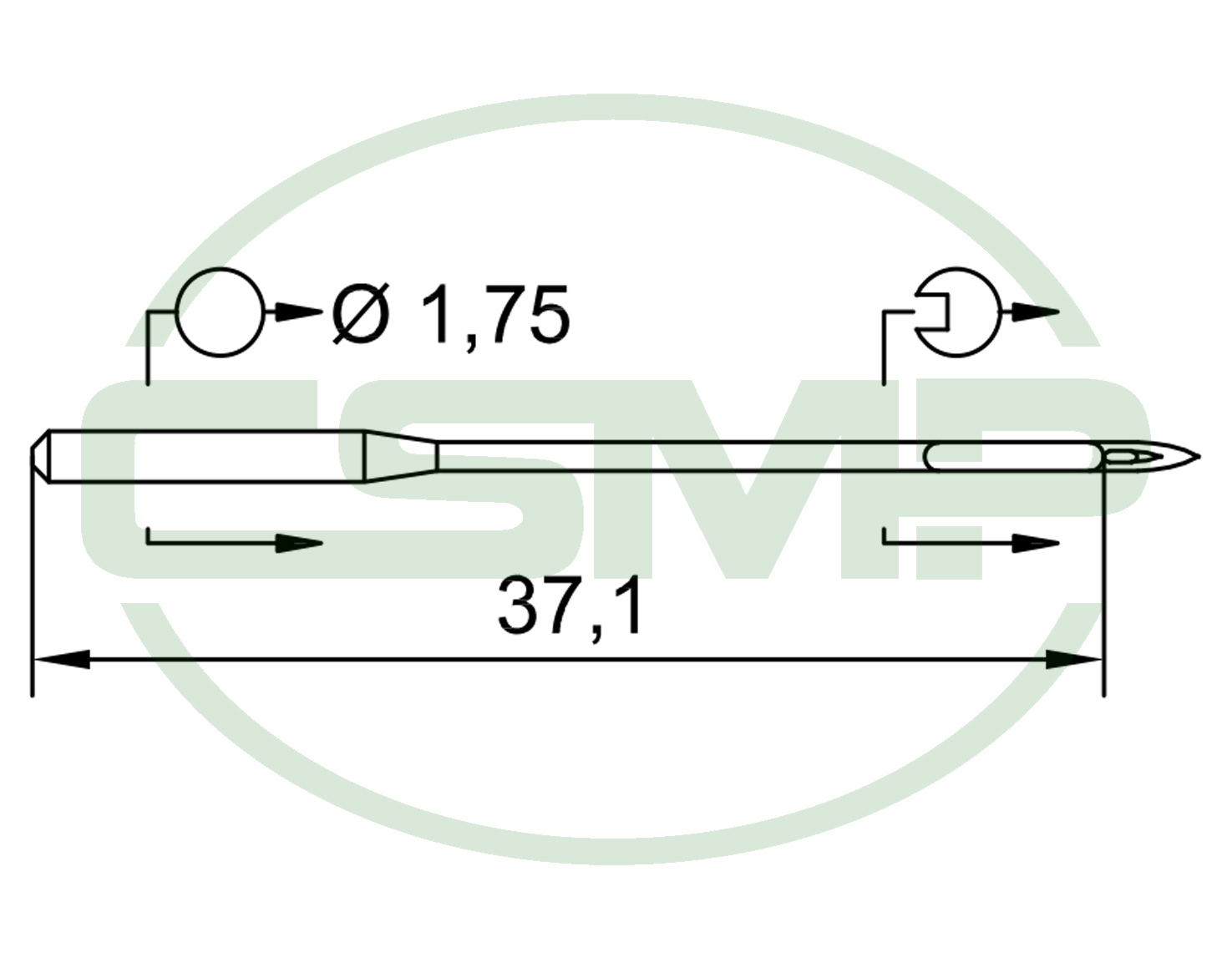

| Shank-ø | 1.75 mm |
| Overall Length | 40.4 mm |
| Length to Eye | 37.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 175X1X80 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 80 / Size 12 |
