16X231 SIZE 80 PACK OF 10 NEEDLES SCHMETZ

Part No 16X231X80

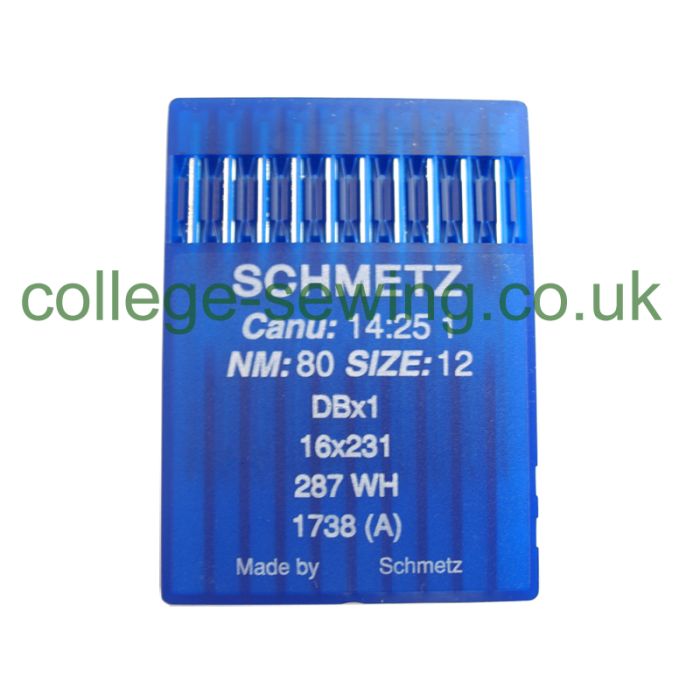

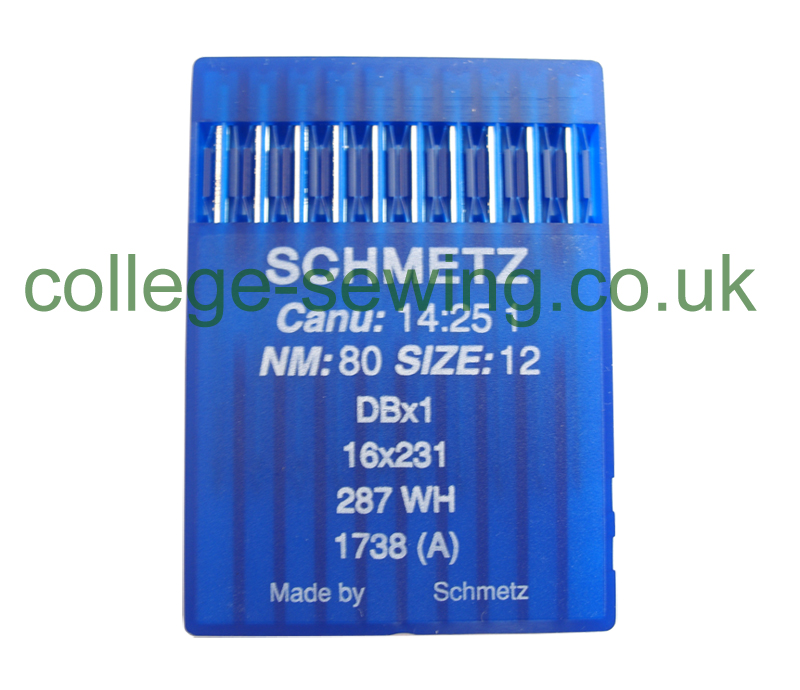

Schmetz 14:25 1 - DBX1, 16X231, 287 WH, 1738 (A) - NM 80 / Size 12 - STANDARD (Normal round point) Packet of 10 Needles.
£1.90
In Stock

Description / 16X231 SIZE 80 PACK OF 10 NEEDLES SCHMETZ

Schmetz 14:25 1 - DBX1, 16X231, 287 WH, 1738 (A) - NM 80 / Size 12 - STANDARD (Normal round point) Packet of 10 Needles.

STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.


Needle Specification

Customary Needle Designations DBX1, 16X231, 287 WH, 1738 (A)
CANU 14:25 1
NM / Size NM: 80 / Size: 12
Point Style STANDARD (Normal round point)
Type of Coating Chrome

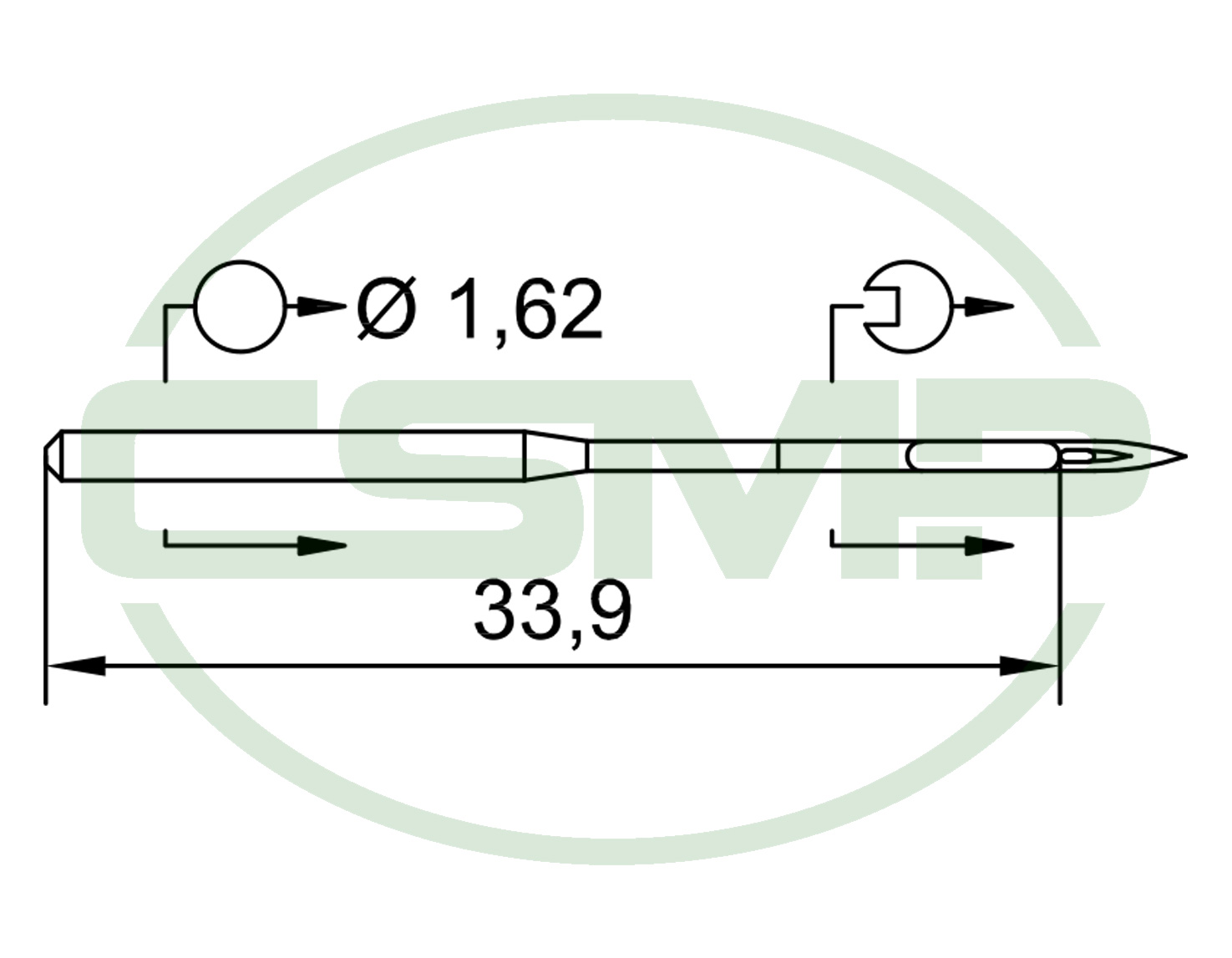

Shank-ø 1.62 mm
Overall Length 37.3 mm
Length to Eye 33.9 mm
Shank Flattening Without shank flattening
Blade Shape Straight
Number of Grooves 1
Stitch Type Lockstitch

More Information

Part No 16X231X80
Weight (KG) 0.007000
Manufacturer Schmetz
Needle Size NM 80 / Size 12
