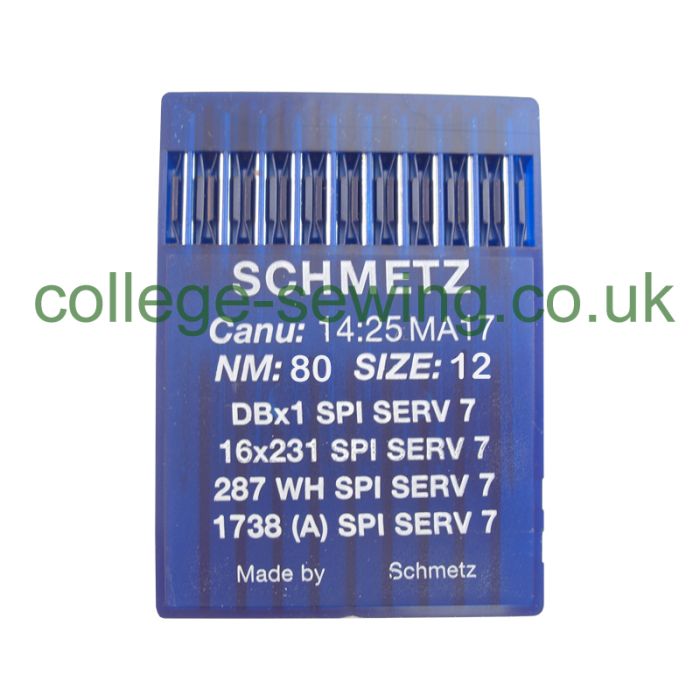

16X231 SPI SERV7 SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Description / 16X231 SPI SERV7 SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Schmetz 14:25MA17 - DBX1 SPI SERV 7, 16X231 SPI SERV 7, 287 WH SPI SERV 7, 1738 (A) SPI SERV 7 - NM 80 / Size 12 - SPI (Acute round point) Packet of 10 Needles.
SPI (Acute round point)
Needles with a acute round point "SPI" that is very slim, allow accurate piercing of densely woven and coated materials. Additionally, this point shape enables you to get exact seam appearance while avoiding seam puckering.
SCHMETZ SERV 7
Besides fabric damage, skip stitches are a problem that frequently arises when sewing elastic material. To prevent them, SCHMETZ developed the SERV 7 needle. This specially shaped needle is made for almost all needle systems, with all the main point shapes and in all current needle sizes.
The main distinguishing features of the SERV 7 design are the hump scarf that makes a particularly large loop of thread which can be more easily caught by the point of the hook and the blade reinforcement, that ensures the extraordinarily high stability of the needle. To produce the smallest possible stitch holes and optimise fabric displacement, the SERV 7 design thus often allows the use of a needle one size smaller without any reduction in the stability of the needle.
SERV 7 needles have a 15 % reinforcement, and as much as 20 % in some needle sizes. Therefore, the needle is especially stable and far less likely to “bend”. Neither the hook or looper nor other machine parts, e.g. the throat plate, are damaged.
Needle Specification
Customary Needle Designations | DBX1 SPI SERV 7, 16X231 SPI SERV 7, 287 WH SPI SERV 7, 1738 (A) SPI SERV 7 |
---|---|
CANU | 14:25MA17 |
NM / Size | NM: 80 / Size: 12 |
Point Style | SPI (Acute round point) |
Special Variant | Special blade reinforcement and hump scarf, to avoid skipped stitches and reduce needle breakage |
Type of Coating | Chrome |

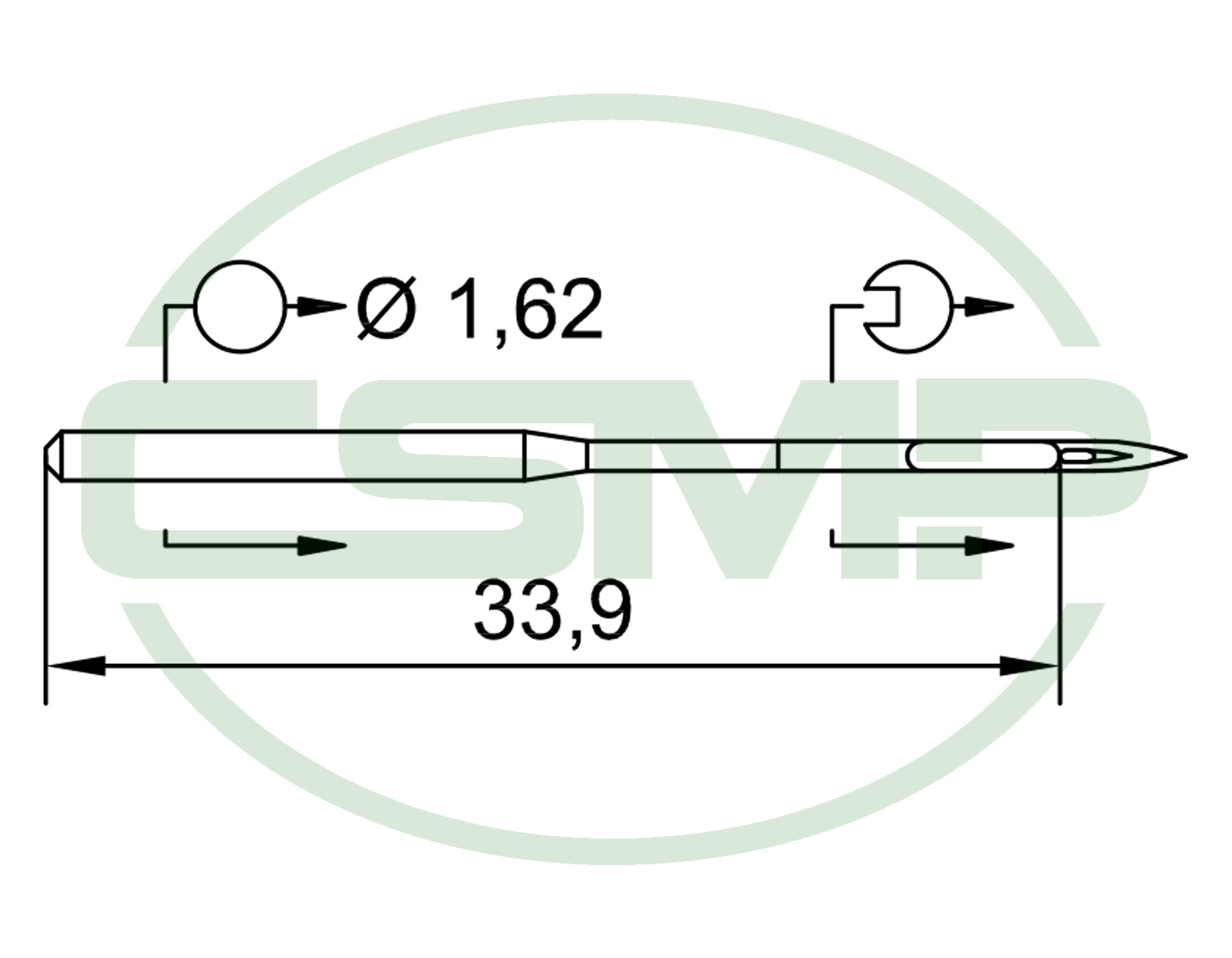

Shank-ø | 1.62 mm |
Overall Length | 37.5 mm |
Length to Eye | 33.9 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 16X231SPISERVX80 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 80 / Size 12 |
