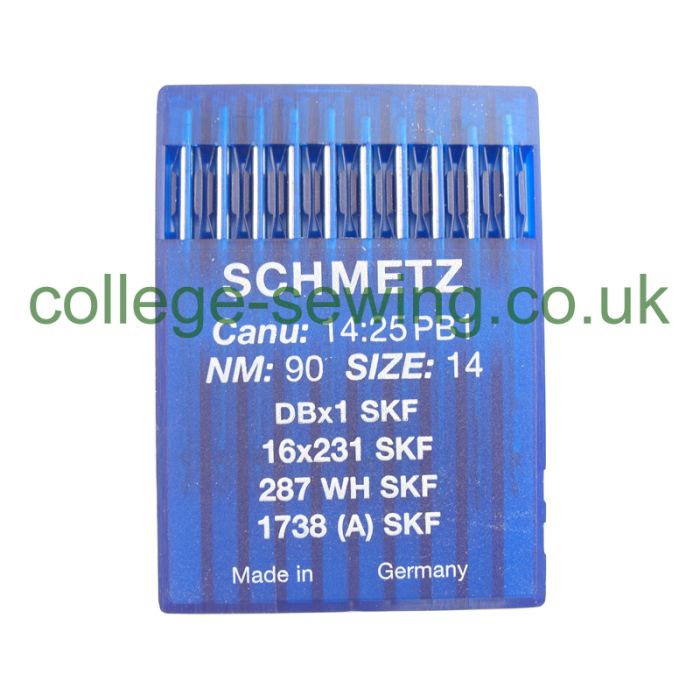

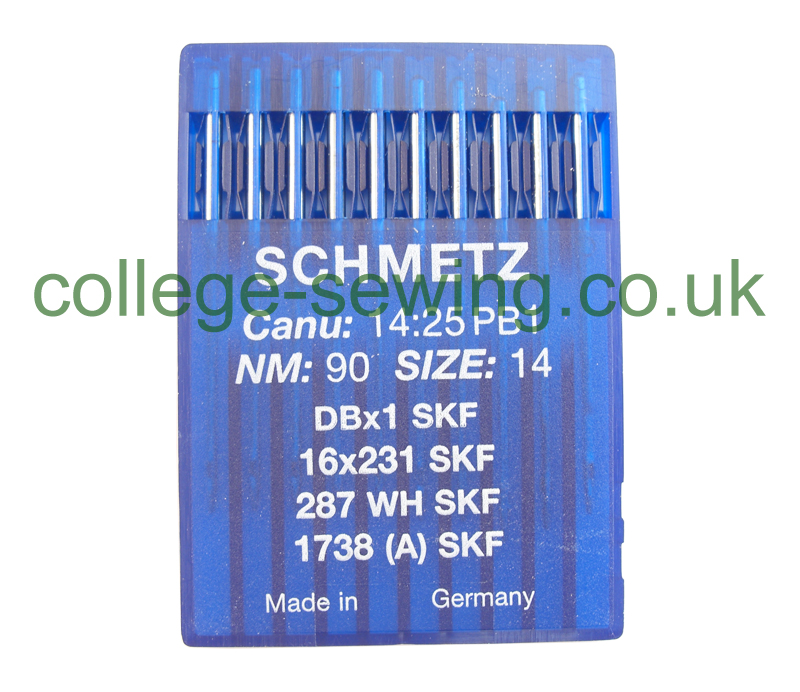

16X231SKF SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Part No
16X231SKFX90
Schmetz 14:25PB1 - DBX1 SKF, 16X231 SKF, 287 WH SKF, 1738 (A) SKF - NM 90 / Size 14 - SKF (Heavy ball point) Packet of 10 Needles.
£2.81
Ex. VAT
Only 17 Left In Stock!
Description / 16X231SKF SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 14:25PB1 - DBX1 SKF, 16X231 SKF, 287 WH SKF, 1738 (A) SKF - NM 90 / Size 14 - SKF (Heavy ball point) Packet of 10 Needles.
SKF (Heavy ball point)
The extremely rounded ball form of this needle permits displacement with coarse, wide loops without piercing the material threads.
Needle Specification
| Customary Needle Designations | DBX1 SKF, 16X231 SKF, 287 WH SKF, 1738 (A) SKF |
|---|---|
| CANU | 14:25PB1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | SKF (Heavy ball point) |
| Type of Coating | Chrome |

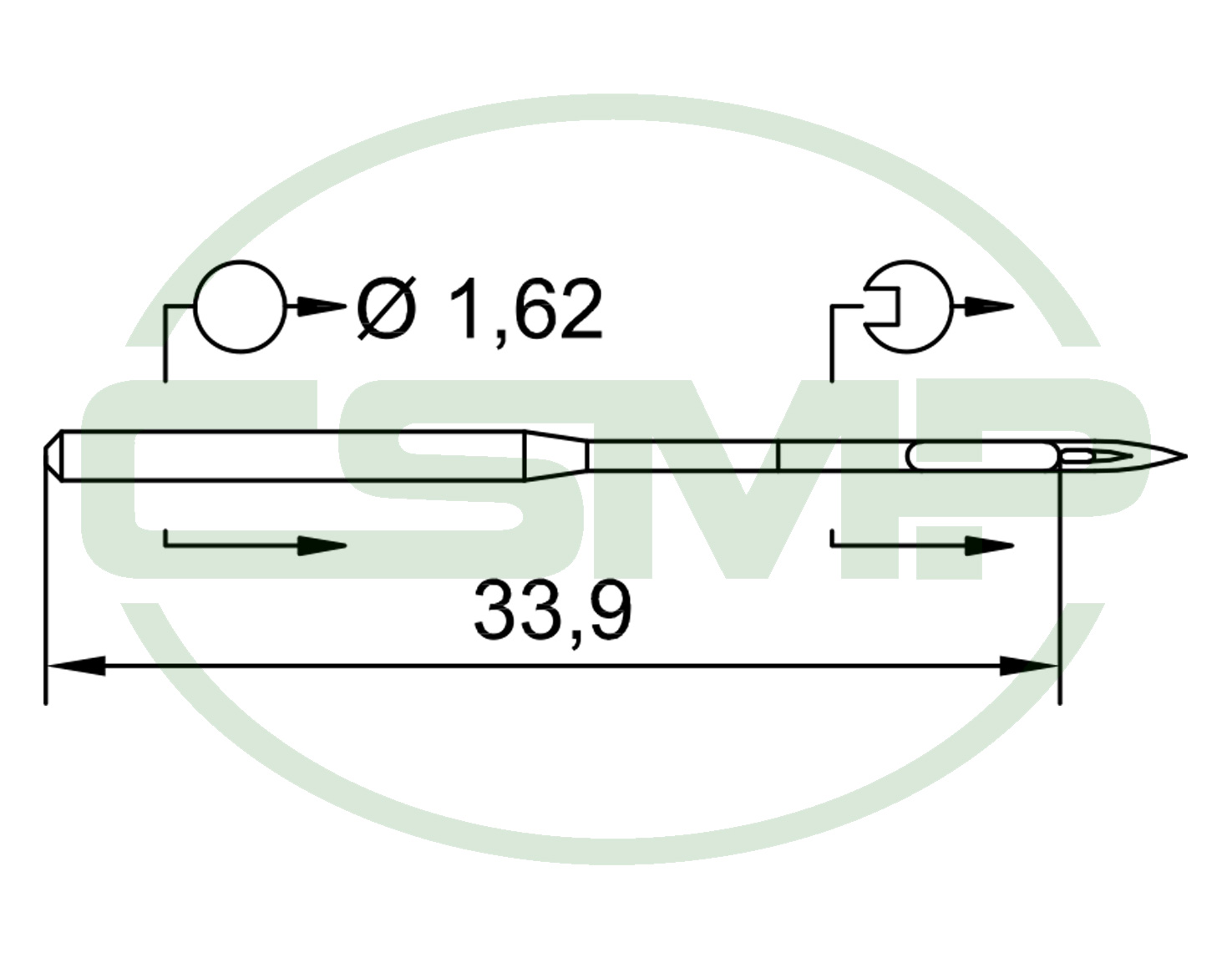

| Shank-ø | 1.62 mm |
| Overall Length | 37.5 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 16X231SKFX90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 90 / Size 14 |
