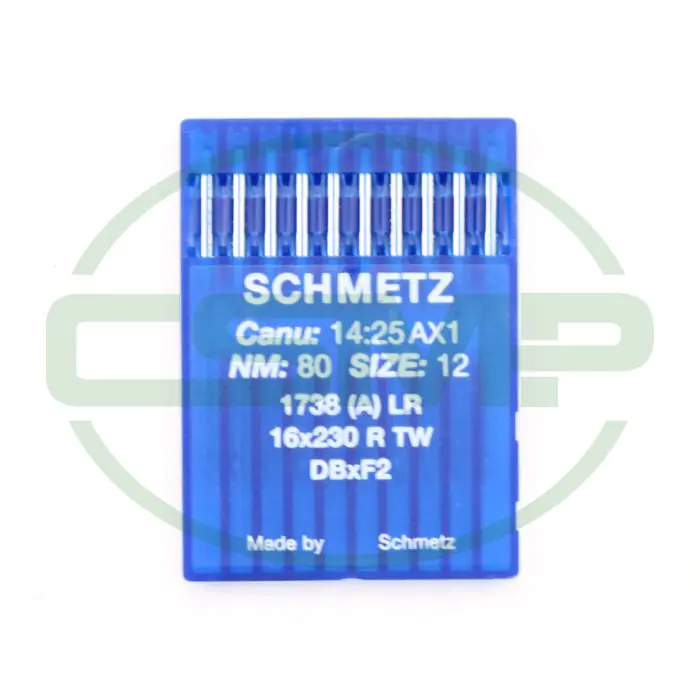

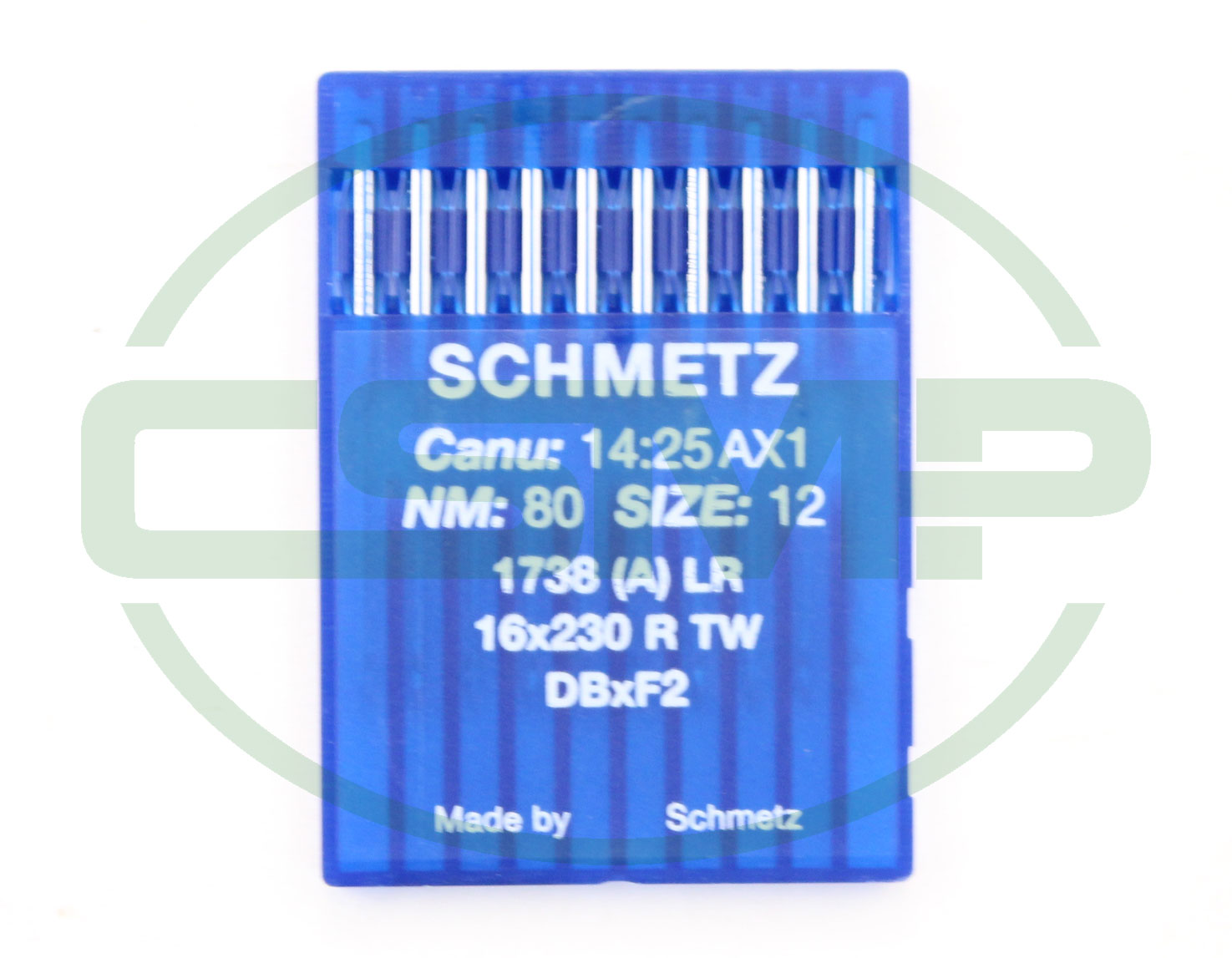

16X230NRTW SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Part No
16X230NRTWX80
Schmetz 14:25AX1 - 1738 (A) LR, 16X230 R TW, DBXF2 - NM 80 / Size 12 - LR (Leather / Reverse twist point) Packet of 10 Needles.
£4.07
Ex. VAT
In Stock
Description / 16X230NRTW SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Schmetz 14:25AX1 - 1738 (A) LR, 16X230 R TW, DBXF2 - NM 80 / Size 12 - LR (Leather / Reverse twist point) Packet of 10 Needles.
LR (Leather / Reverse twist point)
With this cutting point you achieve a lenticular incision. This is done at a 45° angle to the seam direction. The result is a decorative seam inclined slightly towards the left.

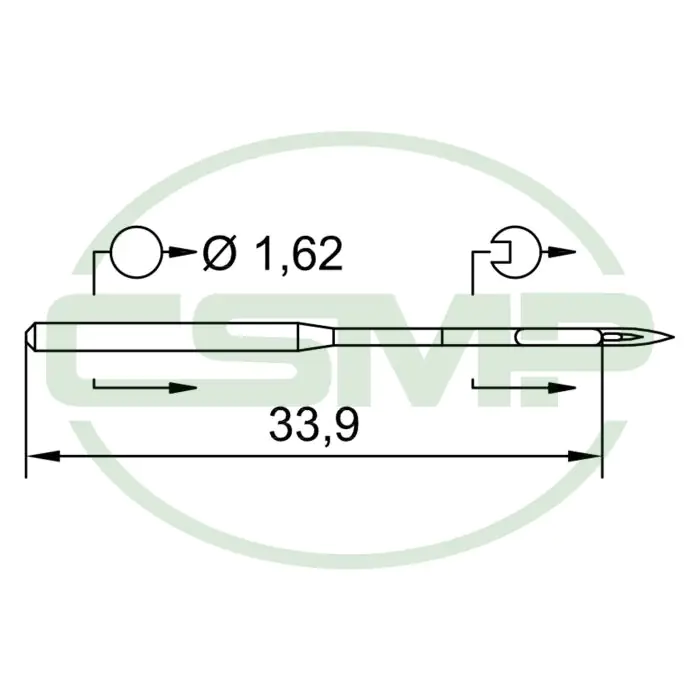

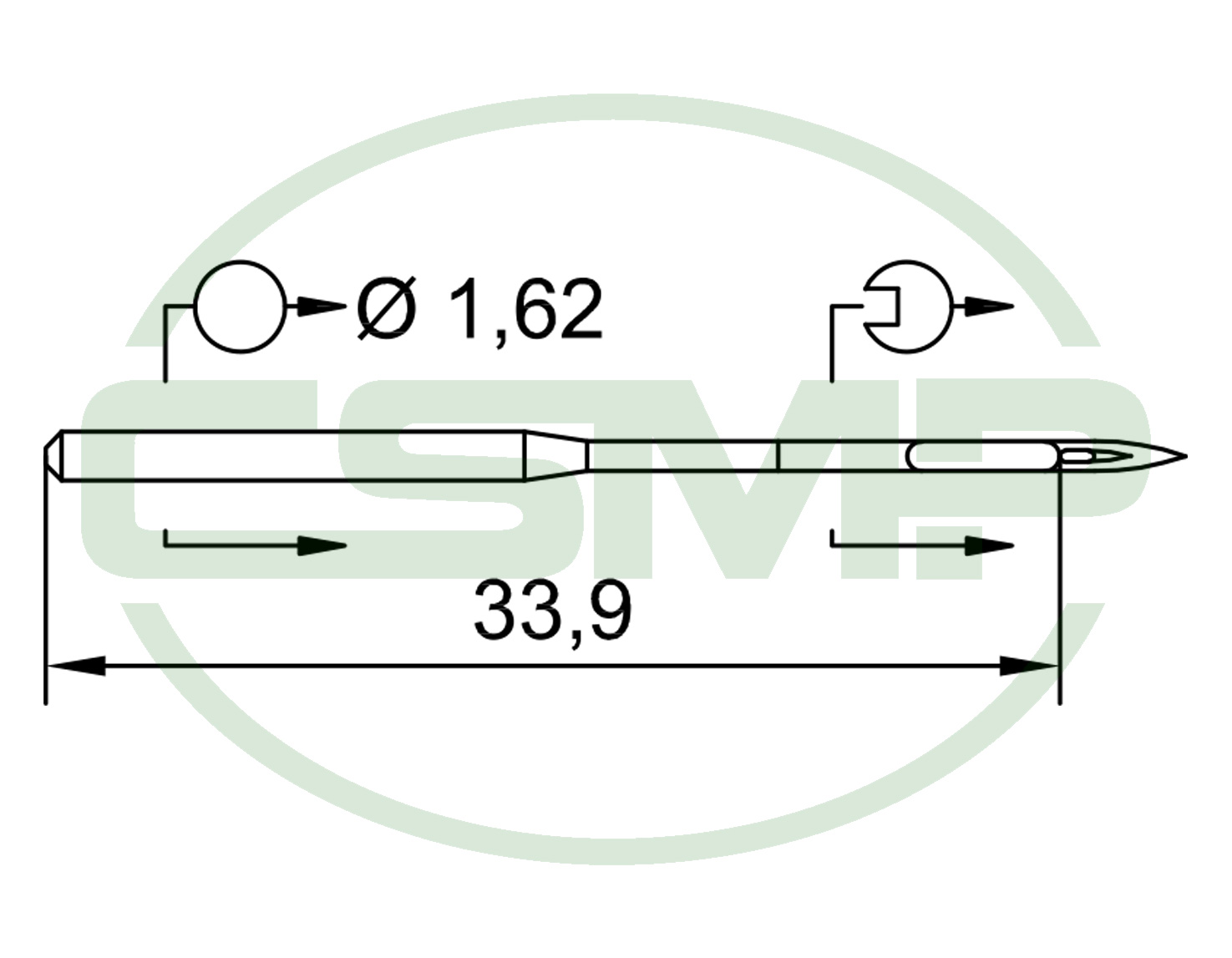

Needle Specification
| Customary Needle Designations | 1738 (A) LR, 16X230 R TW, DBXF2 |
|---|---|
| CANU | 14:25AX1 |
| NM / Size | NM: 80 / Size: 12 |
| Point Style | LR (Reverse twist point) |
| Type of Coating | Chrome |
| Shank-ø | 1.62 mm |
| Overall Length | 38.3 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 16X230NRTWX80 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 80 / Size 12 |
