149X5 SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Description / 149X5 SIZE 140 PACK OF 10 NEEDLES SCHMETZ

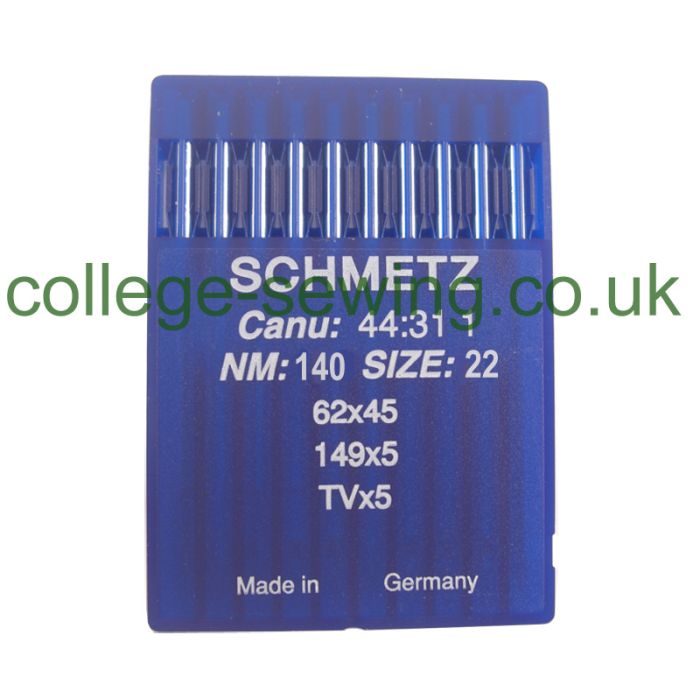

Schmetz 44:31 1 - 62X45, 149X5, TVX5 - NM 140 / Size 22 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
Customary Needle Designations | 62X45, 149X5, TVX5 |
---|---|
CANU | 44:31 1 |
NM / Size | NM: 140 / Size: 22 |
Point Style | STANDARD (Normal round point) |
Type of Coating | Chrome |

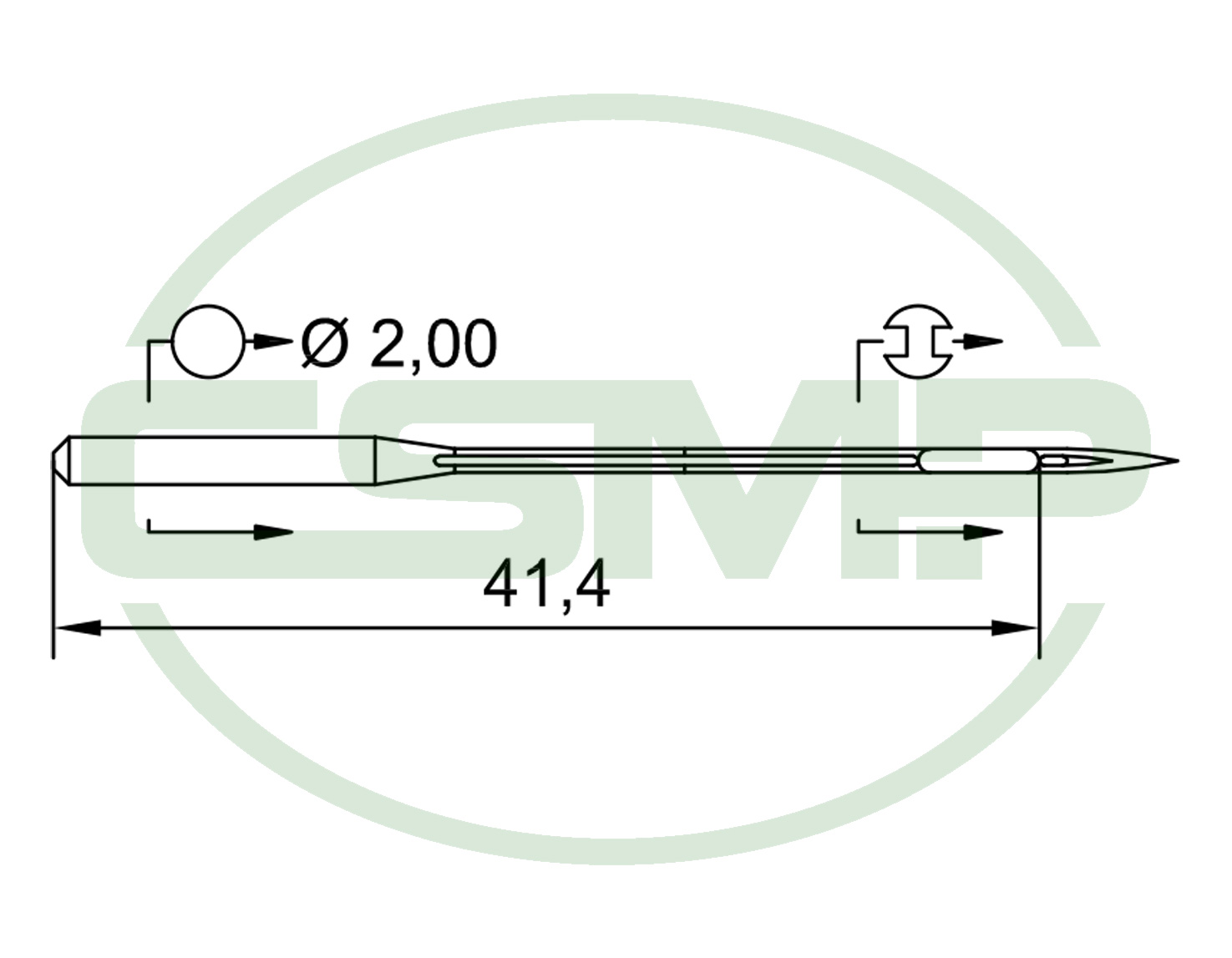

Shank-ø | 2 mm |
Overall Length | 47.2 mm |
Length to Eye | 41.4 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 3 |
Stitch Type | Chainstitch |
More Information
Part No | 149X5X140 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 140 / Size 22 |
