135X17 SAN5 GEBEDUR SIZE 130 PACK OF 10 NEEDLES GROZ BECKERT

Part No 135X17SAN5GEBX130
Groz Beckert - 135X17 SAN 5 GEBEDUR - NM 130 / Size 21 - RG (Normal round point with small ball) GEBEDUR™ Packet of 10 Needles.
£4.10 Ex. VAT
Only 25 Left In Stock!

Description / 135X17 SAN5 GEBEDUR SIZE 130 PACK OF 10 NEEDLES GROZ BECKERT

Groz Beckert - 135X17 SAN 5 GEBEDUR - NM 130 / Size 21 - RG (Normal round point with small ball) GEBEDUR™ Packet of 10 Needles.

R (Regular Round Point)

  • Slightly rounded shape of the point
  • Suitable for knitted and woven fabrics and microfiber
  • Standard point for chainstitch as well as single and multihead embroidery
  • Perfectly suited for button sewing

Groz Beckert GEBEDUR™ Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.

SAN™ 5.2 for the processing of technical textiles
The SAN™ 5.2 special application needle is suitable for processing extremely hard materials or material combinations. The reinforced blade increases the stability of the needle and the enlarged eye enables the use of thick sewing threads. The double point groove improves the thread guidance in linear and, above all, multidirectional sewing processes. In addition, the scarf chamfers on both sides ensure an optimum loop pick-up by the hook or looper. The GEBEDUR™ coating increases the wear protection of the needle, especially in the point and eye area.

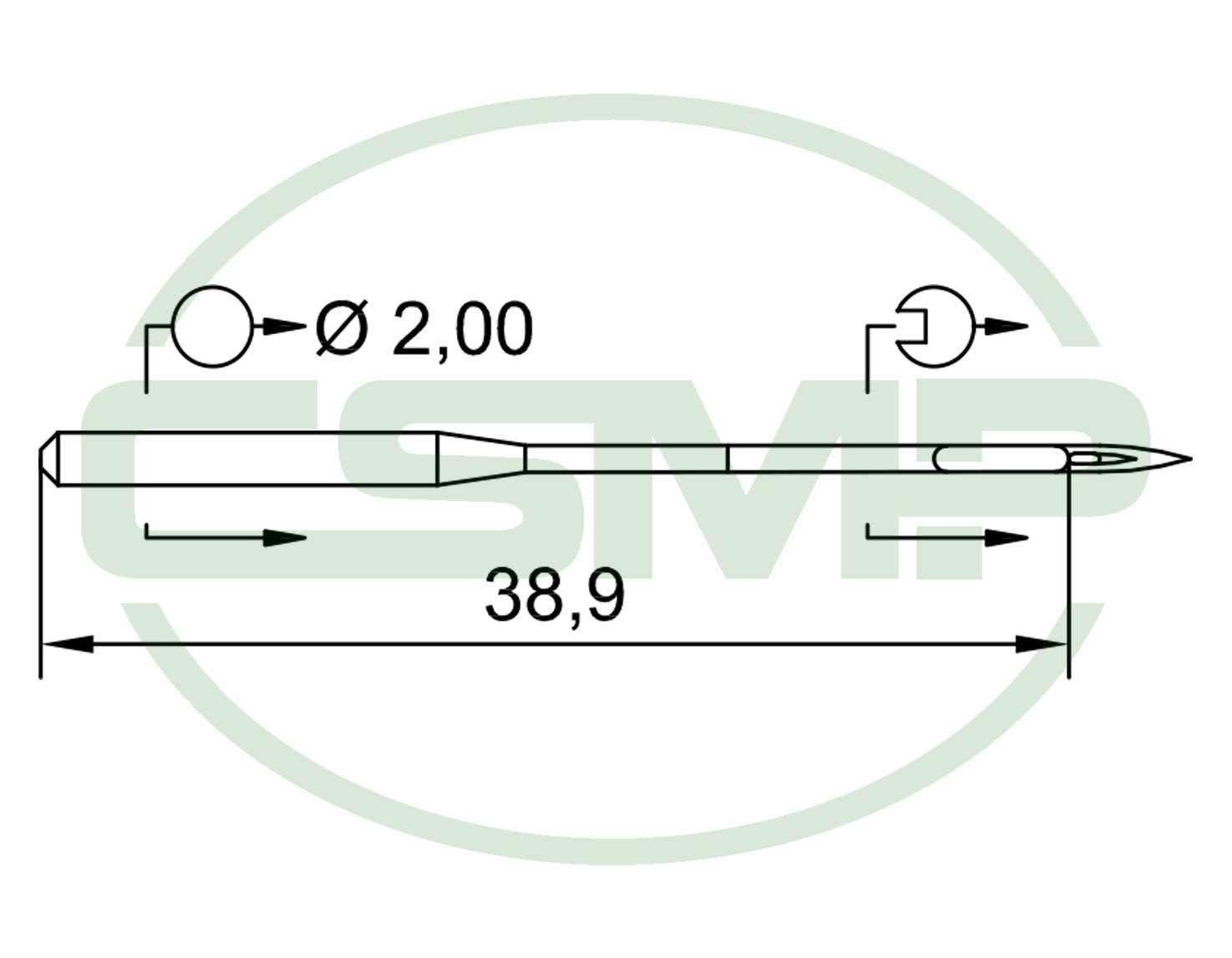

Needle Specification

Customary Needle Designations VERSION 5.2, 37:20
Further Point Designations STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R
NM / Size NM: 130 / Size: 21
Type of Coating GEBEDUR™
Shank-ø 2 mm
Overall Length 43.7 mm
Length to Eye 38.9 mm
Needle Form Description Straight needle with single groove and scarf
Special application needle SAN™ 5 for the processing of technical textiles
Technical Sewing Application Double lock stitch
Stitch Type Class 300
Special Point groove left
Recommended For Technical textiles, Woven fabrics
Examples of Use Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets

More Information

Part No 135X17SAN5GEBX130
Weight (KG) 0.015000
Manufacturer Groz Beckert
Needle Size NM 130 / Size 21
