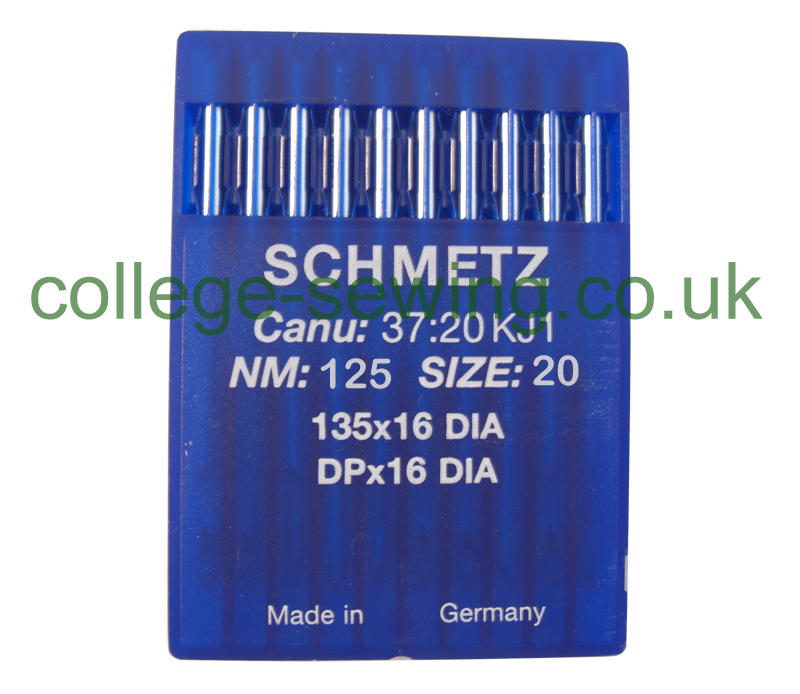

135X16DIA SIZE 125 PACK OF 10 NEEDLES SCHMETZ
Part No
135X16DIAX125
Schmetz 37:20KJ1 - 135X16 DIA, DPX16 DIA - NM 125 / Size 20 - DI (Diamond point) Packet of 10 Needles.
£5.16
Ex. VAT
Only 14 Left In Stock!
Description / 135X16DIA SIZE 125 PACK OF 10 NEEDLES SCHMETZ
Schmetz 37:20KJ1 - 135X16 DIA, DPX16 DIA - NM 125 / Size 20 - DI (Diamond point) Packet of 10 Needles.
DI (Diamond point)
If you are using the "DI" point, you will obtain a rhombic incision. The centered incision is made in the seam direction. The seam appearance corresponds to that of the narrow cross point "S", however, the four cutting edges of the "DI" point allow easier penetration of heavy, hard materials. The result is a very straight, recessed seam.
Needle Specification
| Customary Needle Designations | 135X16 DIA, DPX16 DIA |
|---|---|
| CANU | 37:20KJ1 |
| NM / Size | NM: 125 / Size: 20 |
| Point Style | DI (Diamond point) |
| Type of Coating | Chrome |

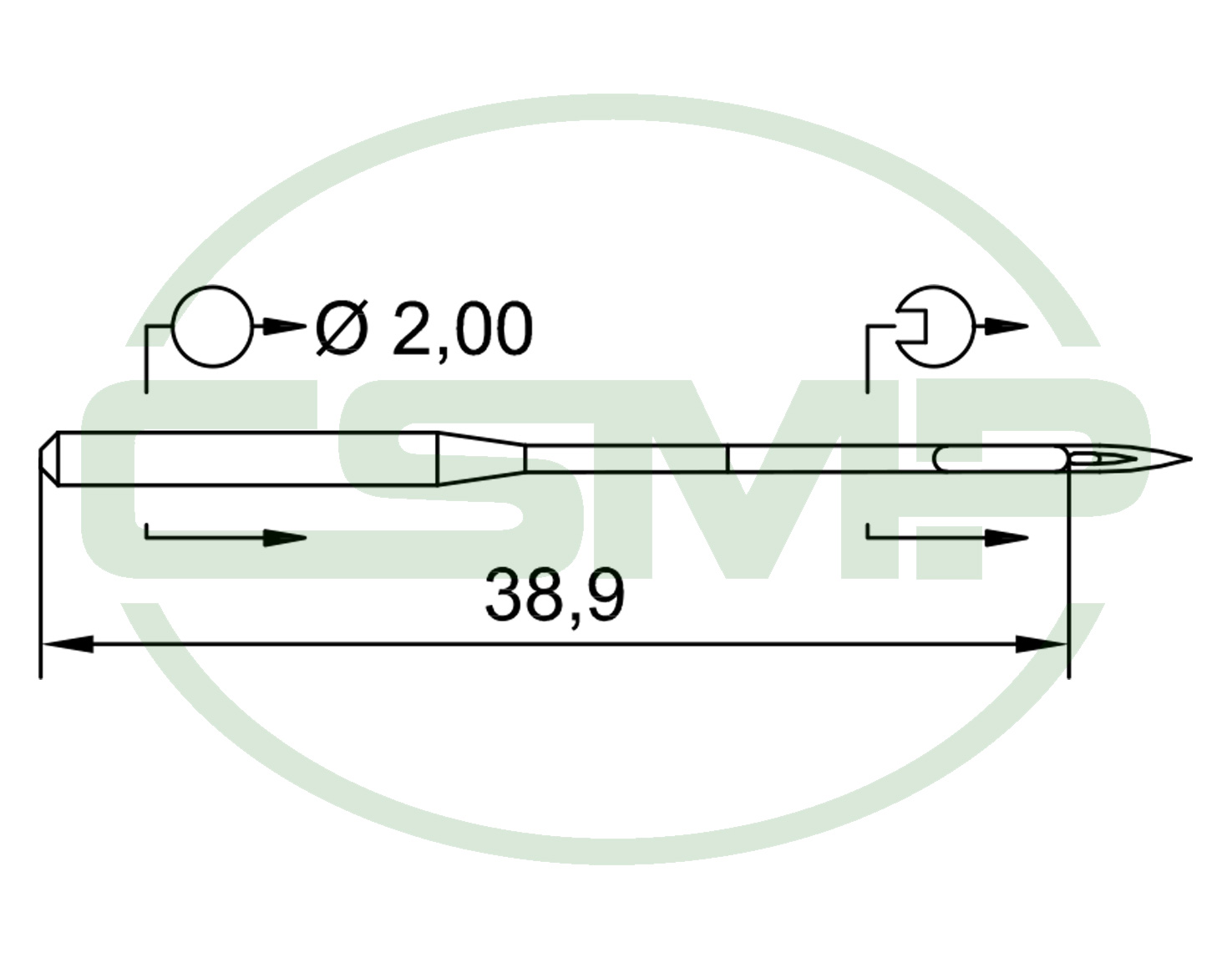

| Shank-ø | 2 mm |
| Overall Length | 44 mm |
| Length to Eye | 38.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 135X16DIAX125 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 125 / Size 20 |
