134SERV7 SIZE 65 PACK OF 10 NEEDLES SCHMETZ
Description / 134SERV7 SIZE 65 PACK OF 10 NEEDLES SCHMETZ

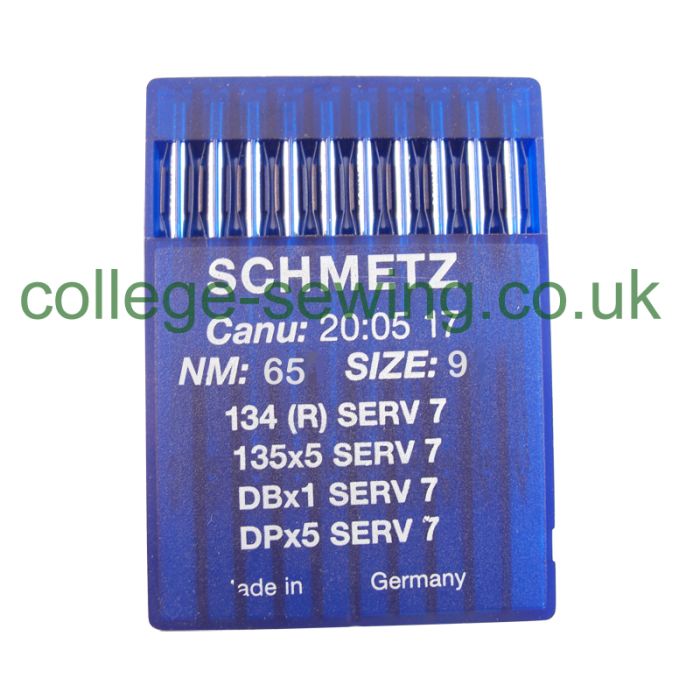

Schmetz 20:05 17 - 134 (R) SERV 7, 135X5 SERV 7, DBX1 SERV 7, DPX5 SERV 7 - NM 65 / Size 9 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
SCHMETZ SERV 7
Besides fabric damage, skip stitches are a problem that frequently arises when sewing elastic material. To prevent them, SCHMETZ developed the SERV 7 needle. This specially shaped needle is made for almost all needle systems, with all the main point shapes and in all current needle sizes.
The main distinguishing features of the SERV 7 design are the hump scarf that makes a particularly large loop of thread which can be more easily caught by the point of the hook and the blade reinforcement, that ensures the extraordinarily high stability of the needle. To produce the smallest possible stitch holes and optimise fabric displacement, the SERV 7 design thus often allows the use of a needle one size smaller without any reduction in the stability of the needle.
SERV 7 needles have a 15 % reinforcement, and as much as 20 % in some needle sizes. Therefore, the needle is especially stable and far less likely to “bend”. Neither the hook or looper nor other machine parts, e.g. the throat plate, are damaged.

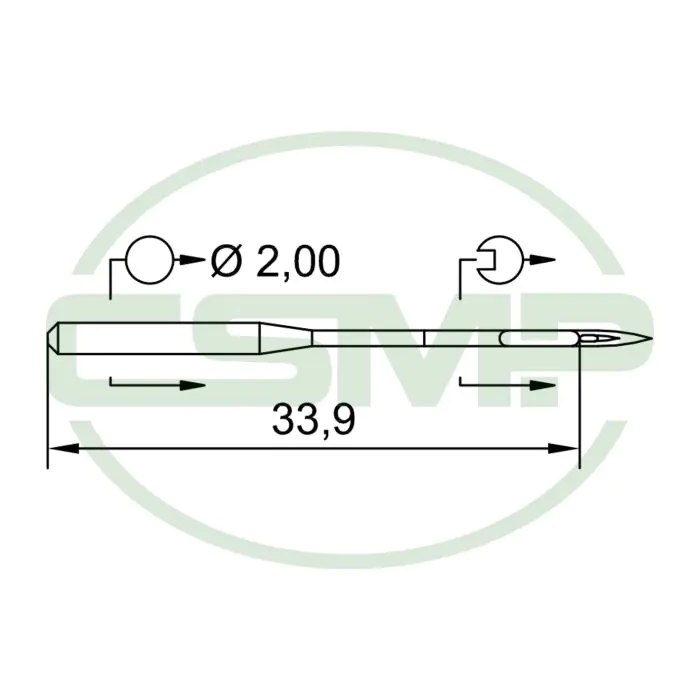

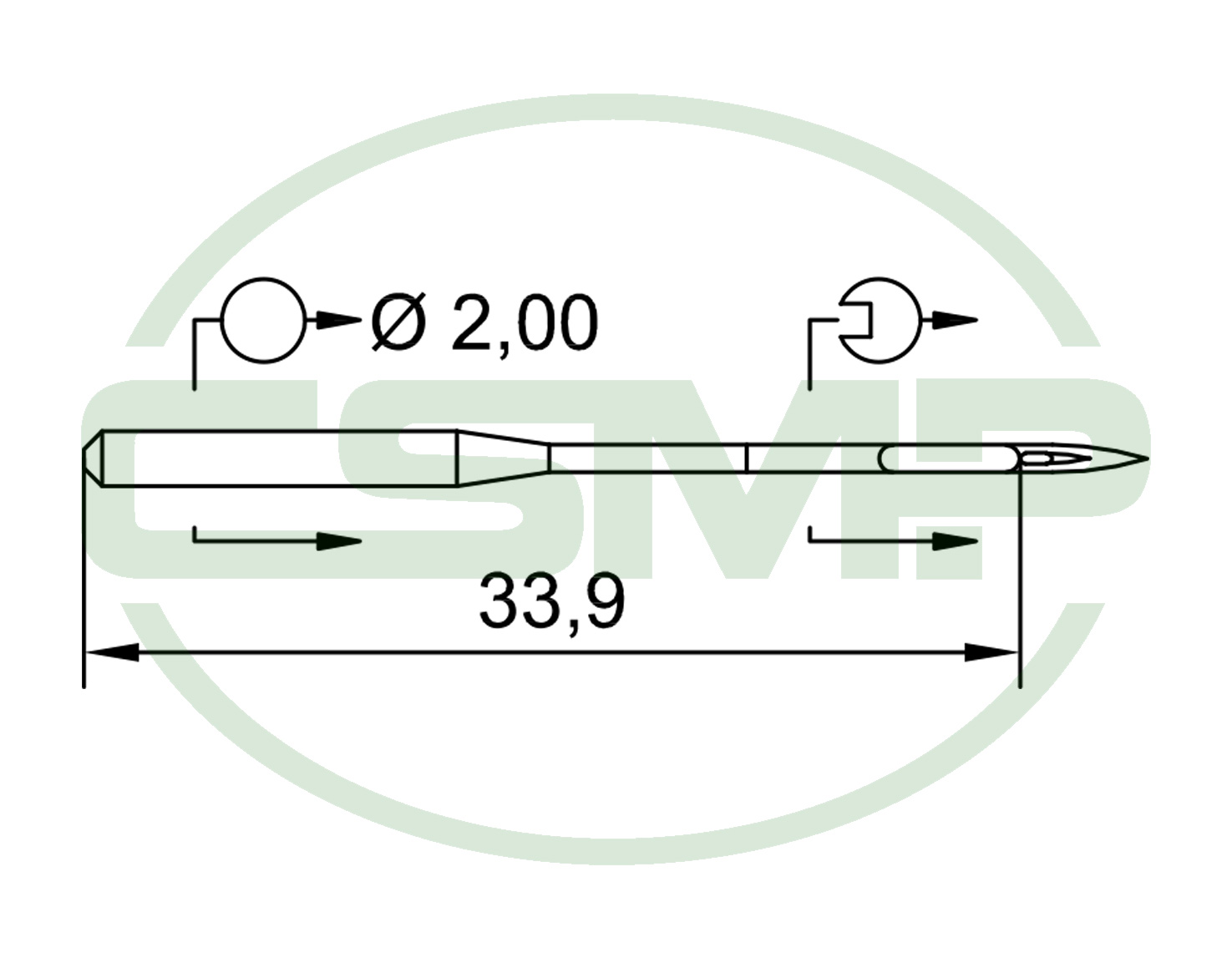

Needle Specification
Customary Needle Designations | 134 (R) SERV 7, 135X5 SERV 7, DBX1 SERV 7, DPX5 SERV 7 |
---|---|
CANU | 20:05 17 |
NM / Size | NM: 65 / Size: 9 |
Point Style | STANDARD (Normal round point) |
Special Variant | Special blade reinforcement and hump scarf, to avoid skipped stitches and reduce needle breakage |
Type of Coating | Chrome |
Shank-ø | 2 mm |
Overall Length | 38.9 mm |
Length to Eye | 33.9 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 134SERV7X65 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 65 / Size 9 |
