134 SD1 SIZE 85 PACK OF 10 NEEDLES SCHMETZ
Part No
134SD1X85

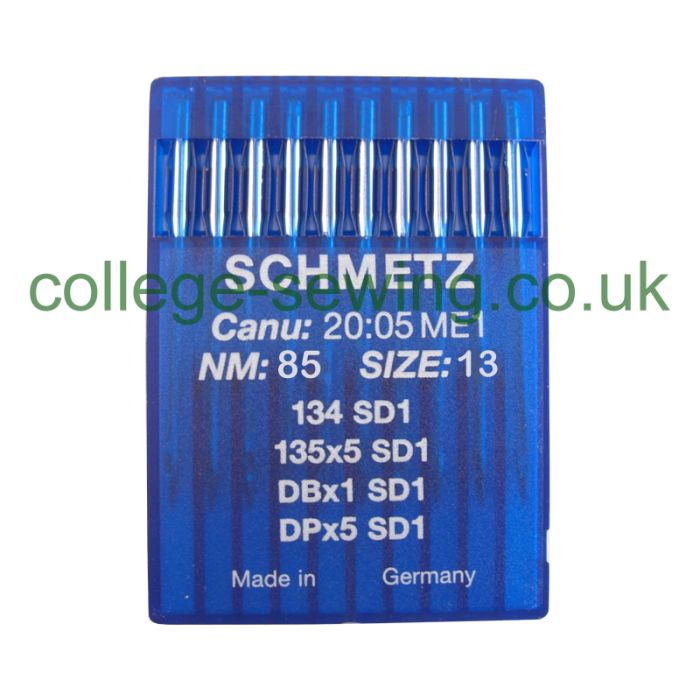

Schmetz 20:05ME1 - 134 SD1, 135X5 SD1, DPX5 SD1 - NM 85 / Size 13 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
£4.20
Ex. VAT
In Stock
Description / 134 SD1 SIZE 85 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05ME1 - 134 SD1, 135X5 SD1, DPX5 SD1 - NM 85 / Size 13 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.

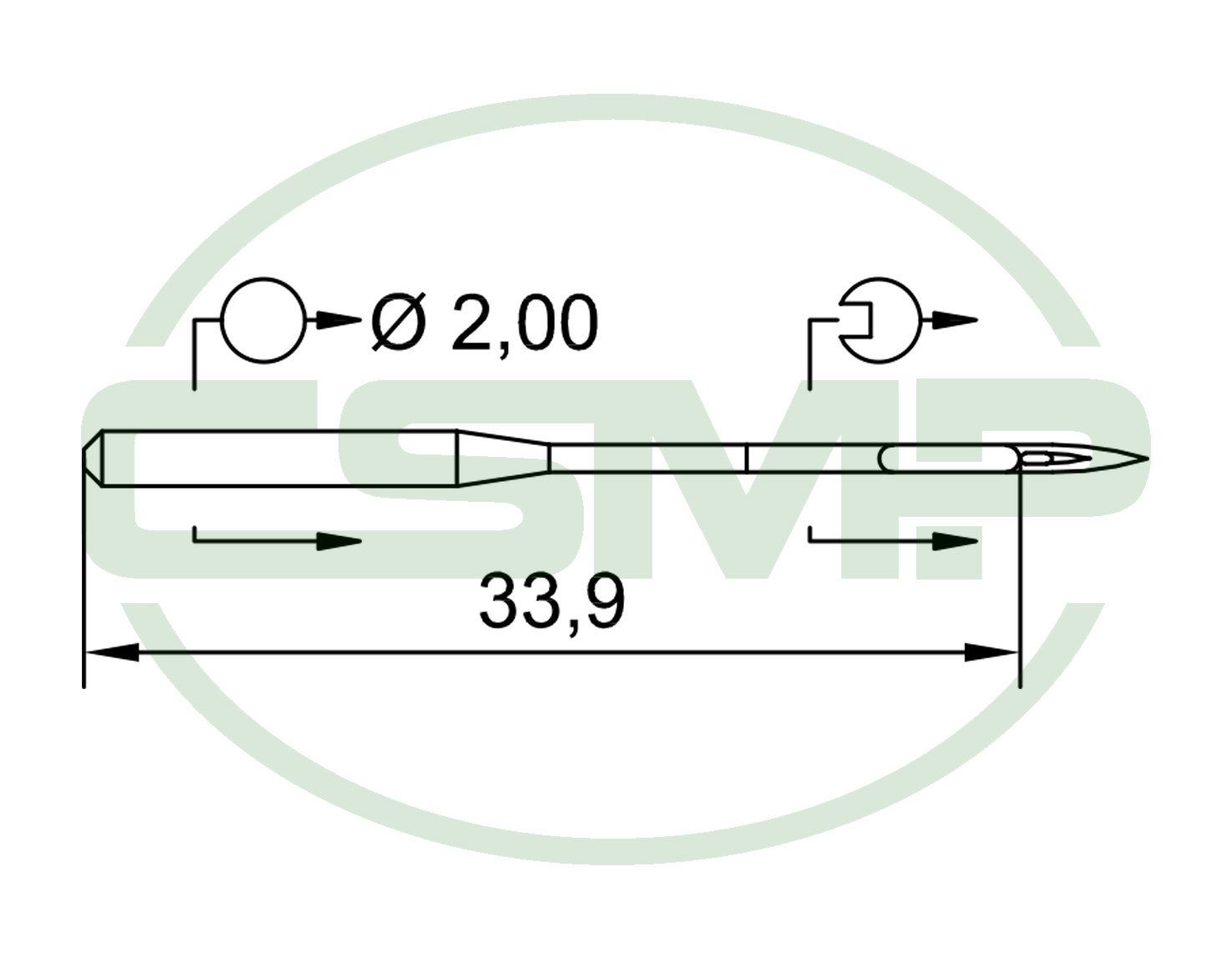

Needle Specification
| Customary Needle Designations | 134 SD1, 135X5 SD1, DPX5 SD1 |
|---|---|
| CANU | 20:05ME1 |
| NM / Size | NM: 85 / Size: 13 |
| Point Style | SD1 (Round point with small triangular tip) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 37.9 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134SD1X85 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 85 / Size 13 |
